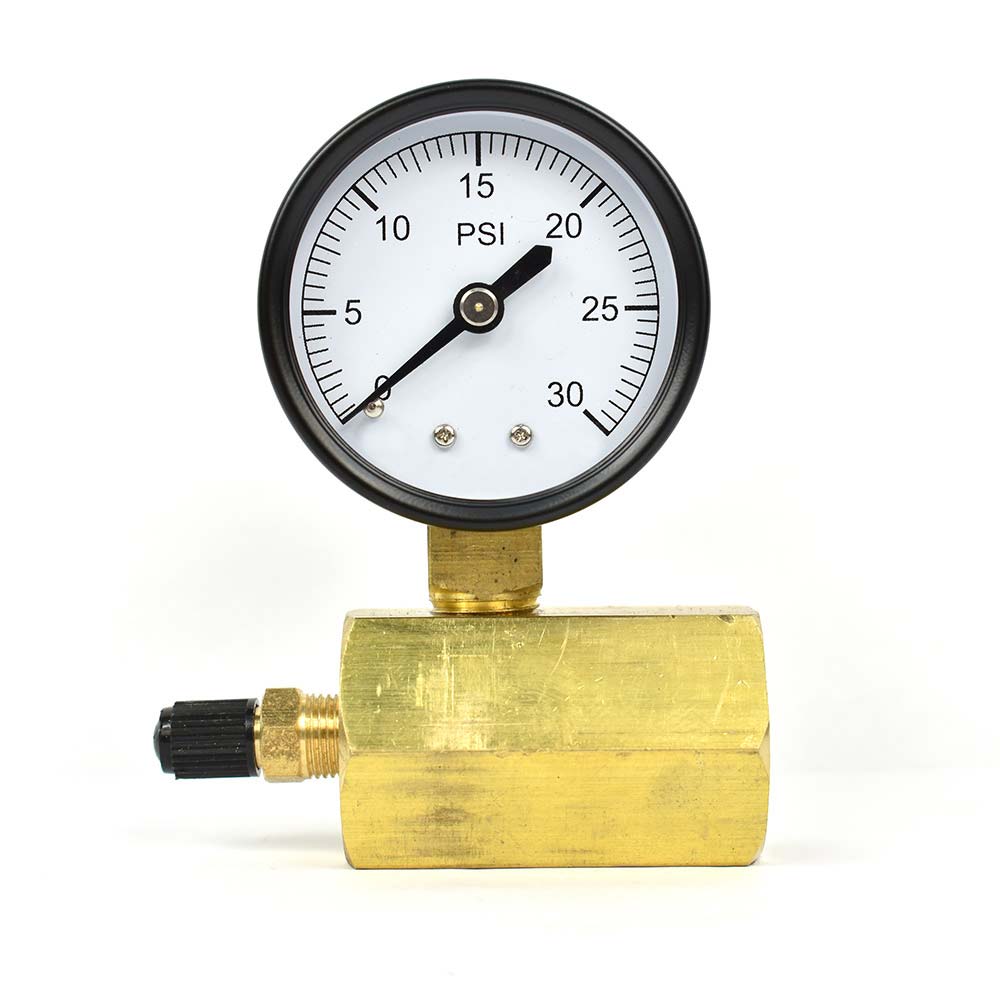

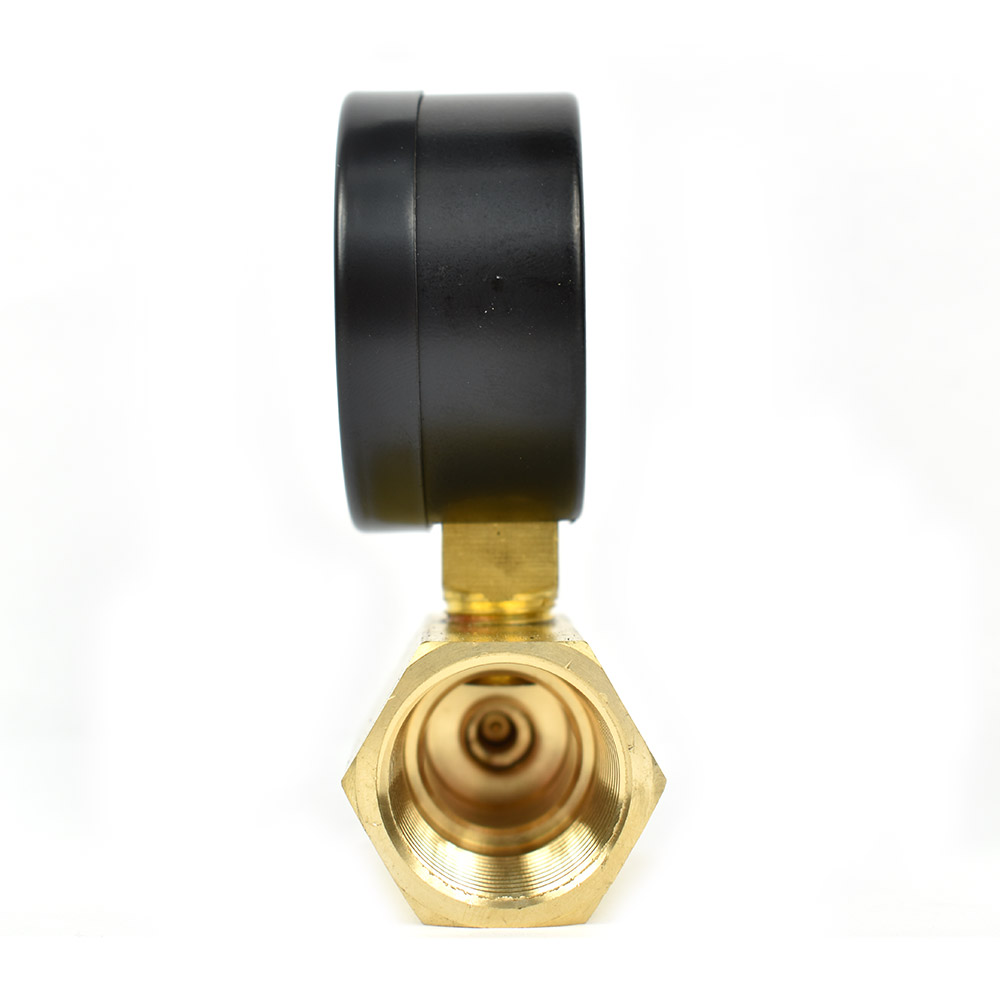

2336-T 2" 30 PSI - 1/4" NPT Bottom Mount 3/4" FNPT Test Pressure Gauge with Tire Valve Fitting (G2012-030GT)
THRIFCO PLUMBING 4402336 2336-T 2" 30 PSI - 1/4" NPT Bottom Mount 3/4" FNPT Test Pressure Gauge with Tire Valve Fitting (G2012-030GT)
MODEL NO:
N/A
UPC NO:
048314023360
Our 0 - 30 psi 1/2 Increment Compressed Air Test Gauge tests up to 30 psi using 1/2 increments. The gauge is designed to fit onto 3/4 in. MPT threads. It is intended for use to gauge the pressure of the compressed air in your tank. The durable plastic face has a clear display that help you openly see the pressure measurement.
Features:
- Tests up to 30 psi using 1/2 increments
- Suitable for non-clogging and non-corroding media
- Checks for leaks and pressure of natural gas and propane systems.
- Includes a dust cap, steel exterior, and clear protective lens
- Gauge reads from 0 to 30 psi in 1/2 psi increments

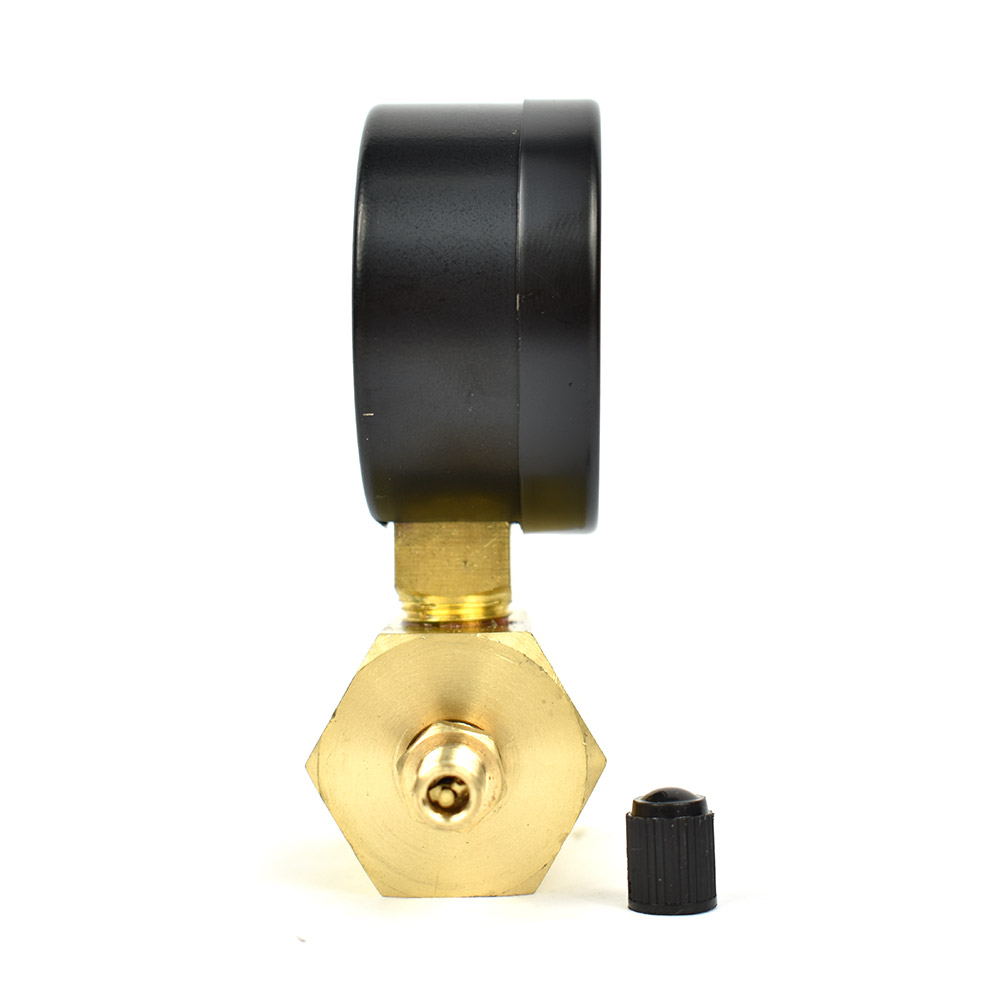

- Schrader valve inlet for easy input of compressed air source
- 3/4 in. female pipe threads for easy attachment to pipe fittings
- Includes dust cap for Schrader valve
- Brass and steel construction for durability and longevity
Specifications:
- Dial Diameter: 2"
- Range : 0-30 PSI
- Inlet Thread: 1/4" NPT
- Thread Size: 3/4" NPT
- PSI Increment: 1/2
