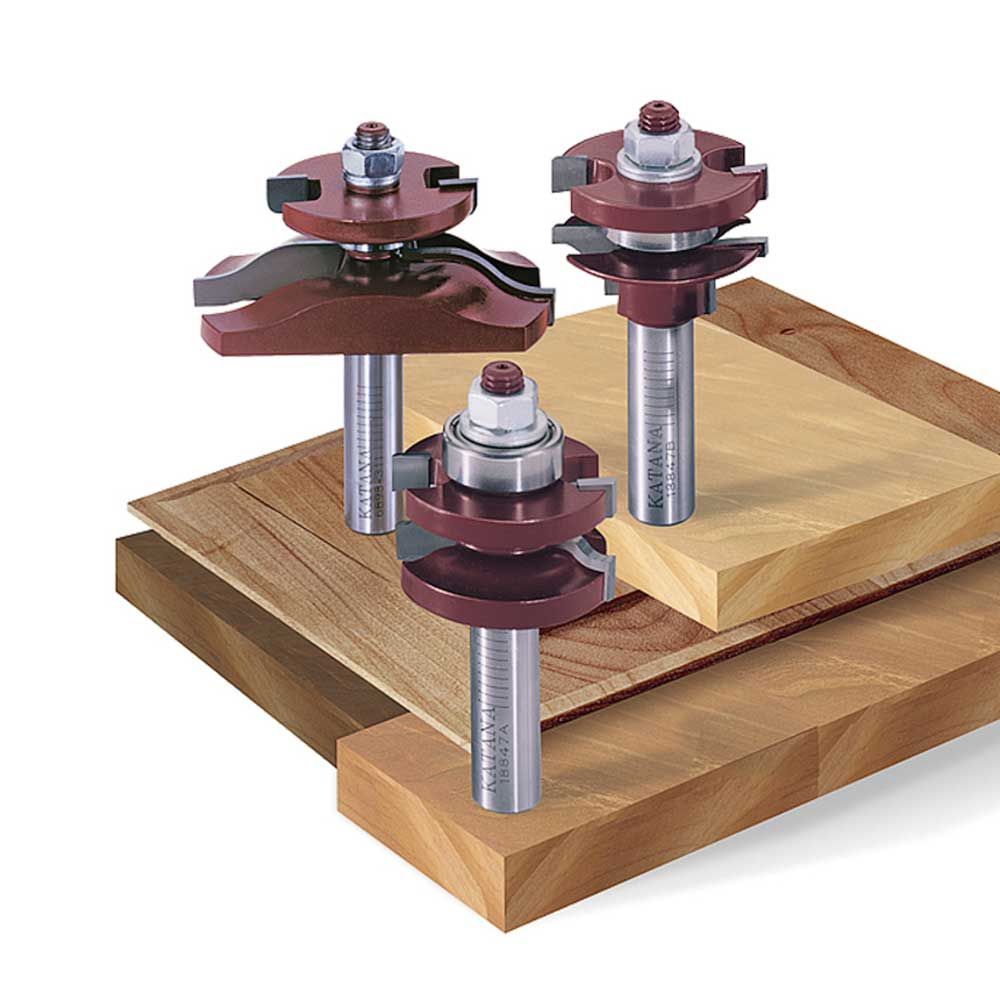

MLCS Premium Cabinet Door Router Bits - Cove Panel and Back Cutter with Shaker Rail and Stile make strong and beautiful raised panel doors.

Features:

Raised Panel Router Bits with Back Cutter:

• Ogee Profile was designed to produce flush panels. Adds a radius to the back sides of panels for decorative appearance or reduces the exposed upper panel profile. Cuts the back and front of the panel with one bit.
• 2 flute, carbide-tipped with totally enclosed ball bearing guides.

Specifications:

• Bit Type: Cove.
• Large Diameter: 3-1/8".
• Cut Height: 1-1/8".
• Cut Depth: 1-1/4".
• Shank: 1/2".

Rail and Stile Router Bits Matched Set:

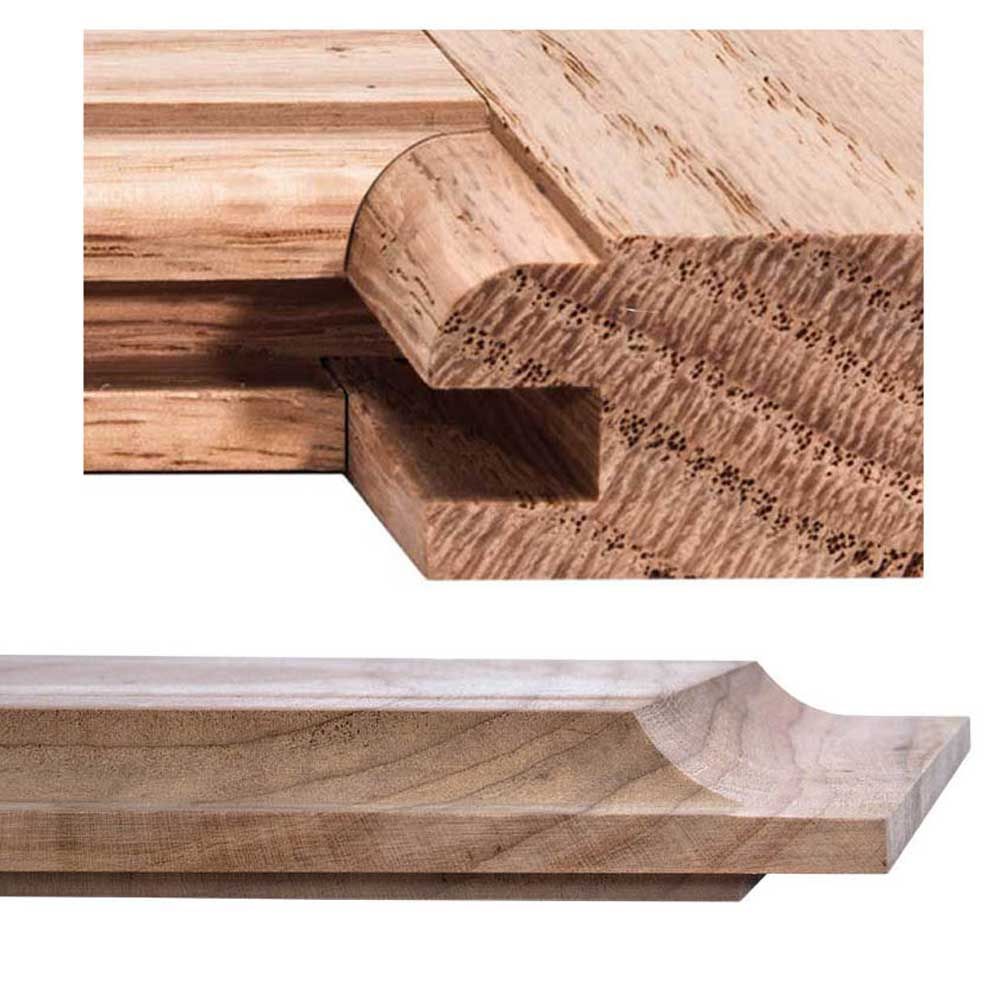

• Shaker Profile come as a matched set so that the rail and stile match precisely to make perfect-fitting joints.
• They cut a 1/4" thick x 3/8" deep tongue on 3/4" stock.
• For a stock thickness of 3/4".
• Carbide Tipped Cutters.

Specifications:

• Bit Type: Shaker.
• Large Diameter: 1-5/8".
• Cut Height: 3/4".
• Cut Depth: 3/8".
• Setup Block #: 9748.
• Shank: 1/2".

Includes:

• Raised Panel Router Bit with Back Cutter #18697 with Cove Profile.
• Matched Rail and Stile Set #18837 with Shaker Profile.
