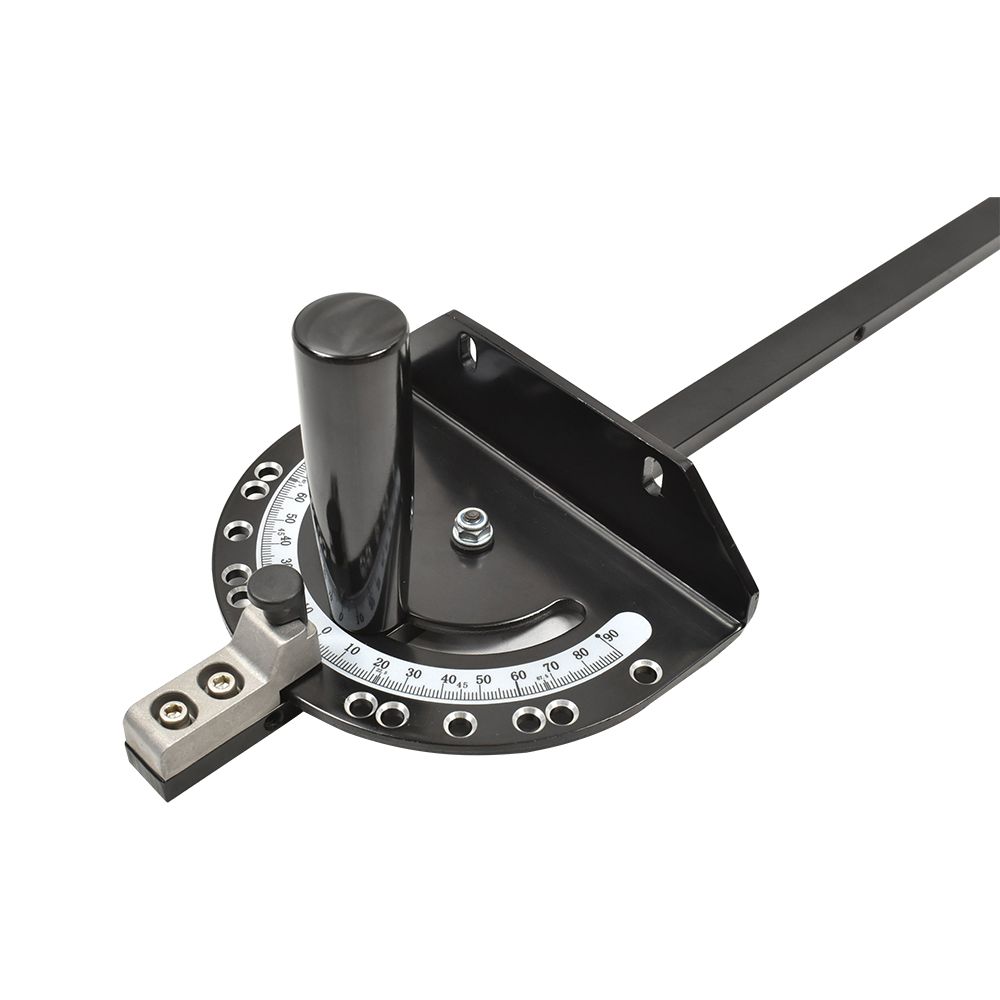

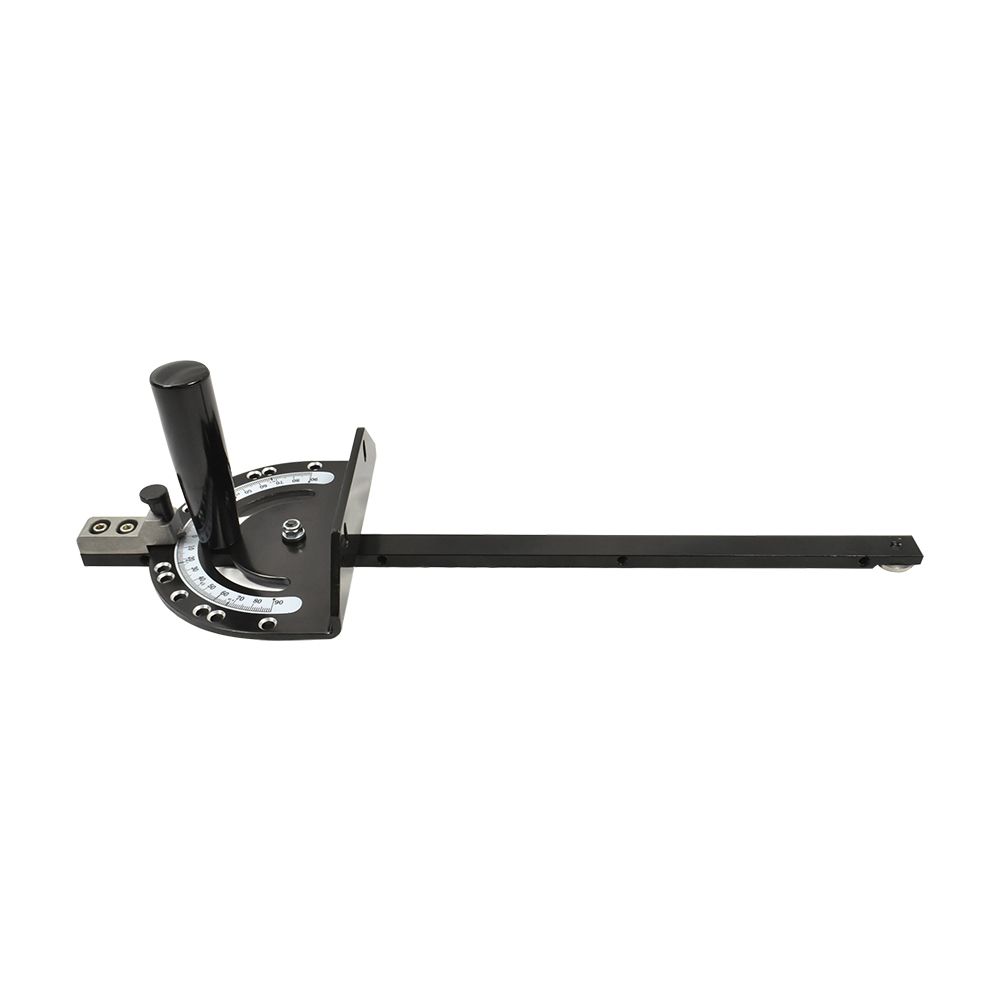

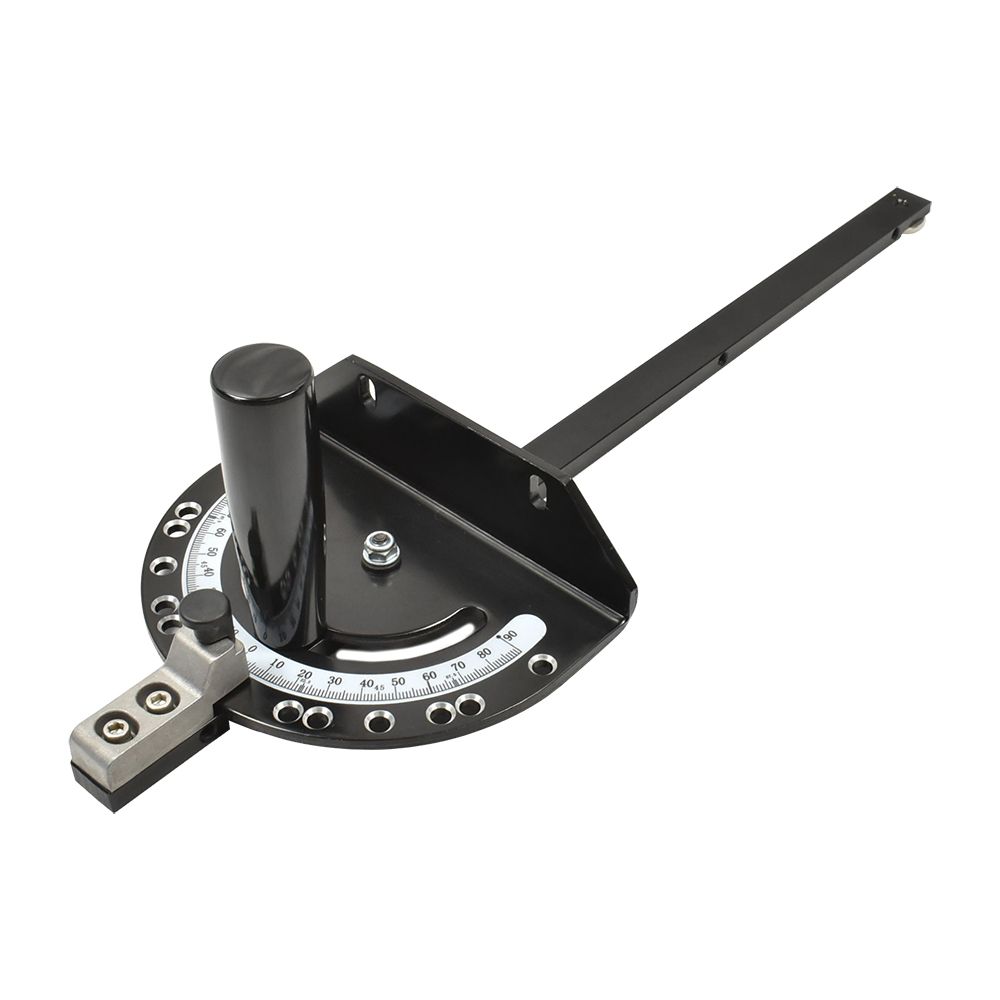

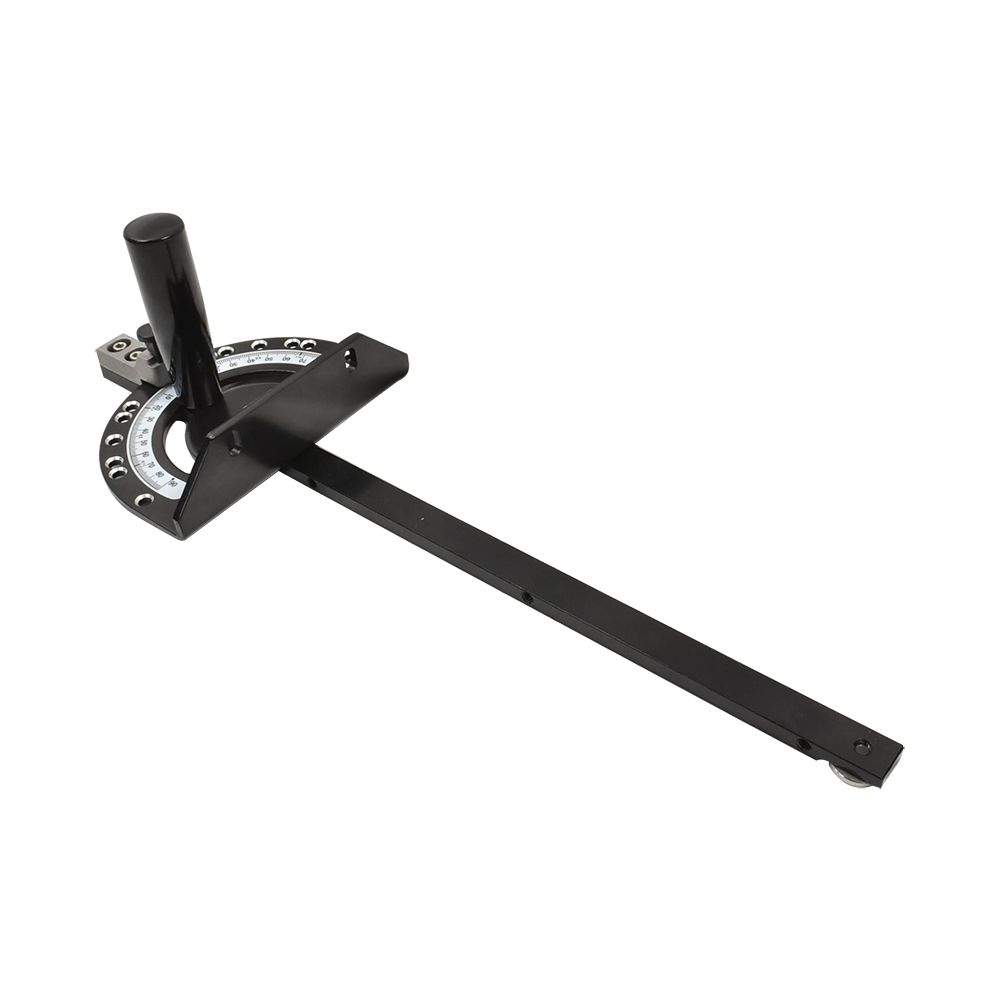

The Big Horn 14600 is a precision miter gauge designed for safe, accurate mitered cuts on table saws and other tools with standard 3/4" x 3/8" miter slots. The CNC-machined aluminum head and anodized steel components for dependable performance. The large push knob allows for safe and steady material control. Built-in angle stops at 0°, 22.5°, 30°, 45°, 60°, 67.5°, and 90° let you set common angles quickly. The pull-to-lock mechanism secures the head in place at each detent for consistent cuts. Dual 0°–90° engraved scales make it easy to reference angles from either side. A locking washer on the slide bar fits into matching track grooves to prevent lift-out during use. Whether you're cutting miters, building custom sleds, or fine-tuning jigs, this miter gauge helps improve accuracy, reduce setup time, and enhance safety.

Features:

• Built-in angle stops at 0°, 22.5°, 30°, 45°, 60°, 67.5°, and 90° allow fast and accurate miter adjustments.
• Large push knob provides a steady grip and improved control while cutting.
• Locking washer on the slide bar fits into matching grooves to prevent lift-out during use.
• Pull-to-lock mechanism clamps securely into each detent for consistent and repeatable cuts.
• Dual 0°–90° engraved angle scales offer clear reference points from both sides of the blade.
• Standard 3/4" x 3/8" guide bar fits most table saws, router tables, and shop-made sleds or jigs.

Specifications:

• Standard 3/4" x 3/8" Track
• Degree Angle Range: 0°~90°
• Material: CNC machined Aluminum & Steel
• Positive Stops: 0°, 22.5°, 30°, 45°, 60°, 67.5°, 90° (Common angle)
• Surface Finish: Anodize
• Accuracy: One Scale is 1°
• Measuring size: 0°~90°
