3/4" Pattern/FlushTrim Bit Kit

MLCS 18816 3/4" Pattern/FlushTrim Bit Kit

https://tscconnect.americangeneraltools.com/web/image/product.template/334821/image_1920?unique=b438807

3/4" Pattern/FlushTrim Bit Kit

MODEL NO:
N/A
UPC NO:
645710040597
Days
:
Hours
:
Mins
:
Secs

This combination does not exist.

 to view price
Product Image

3/4" Pattern/FlushTrim Bit Kit

32.86 32.86
Share :

MLCS Premium 3/4 Inch Flush Trim Router Bits with Top & Bottom Bearings Kit remove precise amounts of material from the edge of doors or very large panels, or whenever size makes it difficult to use a router table.

Features:

  • By varying the bottom bearing diameter, you can accurately remove 1/16" or 1/8" in two passes.
  • When using the bit, for the first pass adjust the bottom bearing to run at the bottom of your stock, removing the designated amount from the top of the stock.
  • For the second pass, readjust the bit height to allow the top bearing to run along the previously cut top of your stock, completing the trimming operation.
  • For stock up to 1-3/8" thick, or 2" thick.

Specifications:

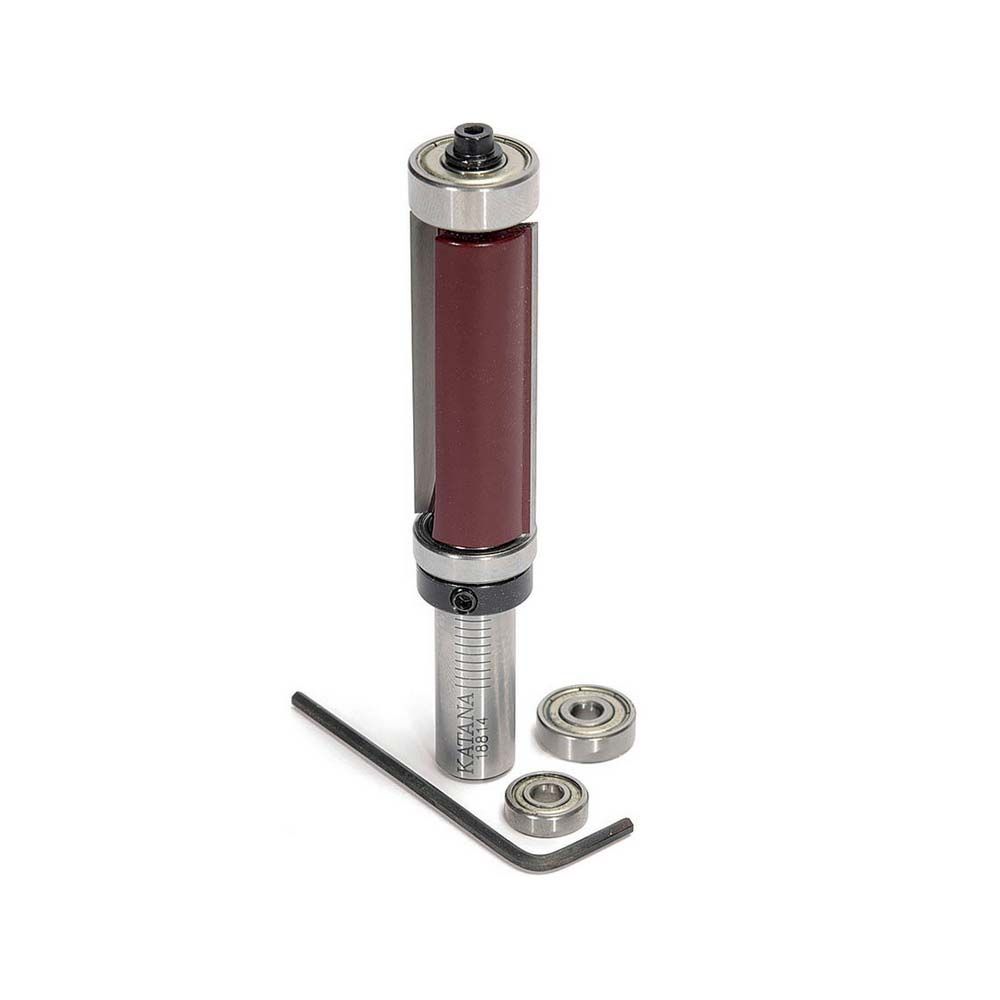

  • 3/4" Top and Bottom Bearing Flush Trim/Pattern Bit with two 3/4" OD bearings.
  • Large Diameter: 3/4".
  • Cut Length: 2".
  • Shank Size: 1/2".
  • Two additional bearings 5/8" and 1/2" OD.
  • Hex Key.
