Glue Joint - 16 Side X 1/2" Shank

EAGLE AMERICA 190-2895 Glue Joint - 16 Side X 1/2" Shank

https://tscconnect.americangeneraltools.com/web/image/product.template/334409/image_1920?unique=c8701f1

Glue Joint - 16 Side X 1/2" Shank

MODEL NO:
N/A
UPC NO:
645710044885
Days
:
Hours
:
Mins
:
Secs

This combination does not exist.

 to view price
Product Image

Glue Joint - 16 Side X 1/2" Shank

33.66 33.66
Share :

Eagle America Birds Mouth Router Bits for 16 Sides are an easy and foolproof way to join up multi-sided projects such as planters, columns, buckets, bowls, boxes and barrels.

Features:

  • Simply select the number of sides you want and pick the bit that's right for you.
  • Stock is notched out at the correct angle, which gives extra gluing surface and a strong mechanical glue joint.
  • When gluing, the routed end hugs the mating piece preventing any slippage.
  • By only having to cut one end (as opposed to two for a miter joint), you reduce machining time in half.
  • Edges can be produced that are either flush or protruded which then can be later sanded down to desired finish.
  • All bits two-flute. Carbide-tipped.
  • Made in the USA.

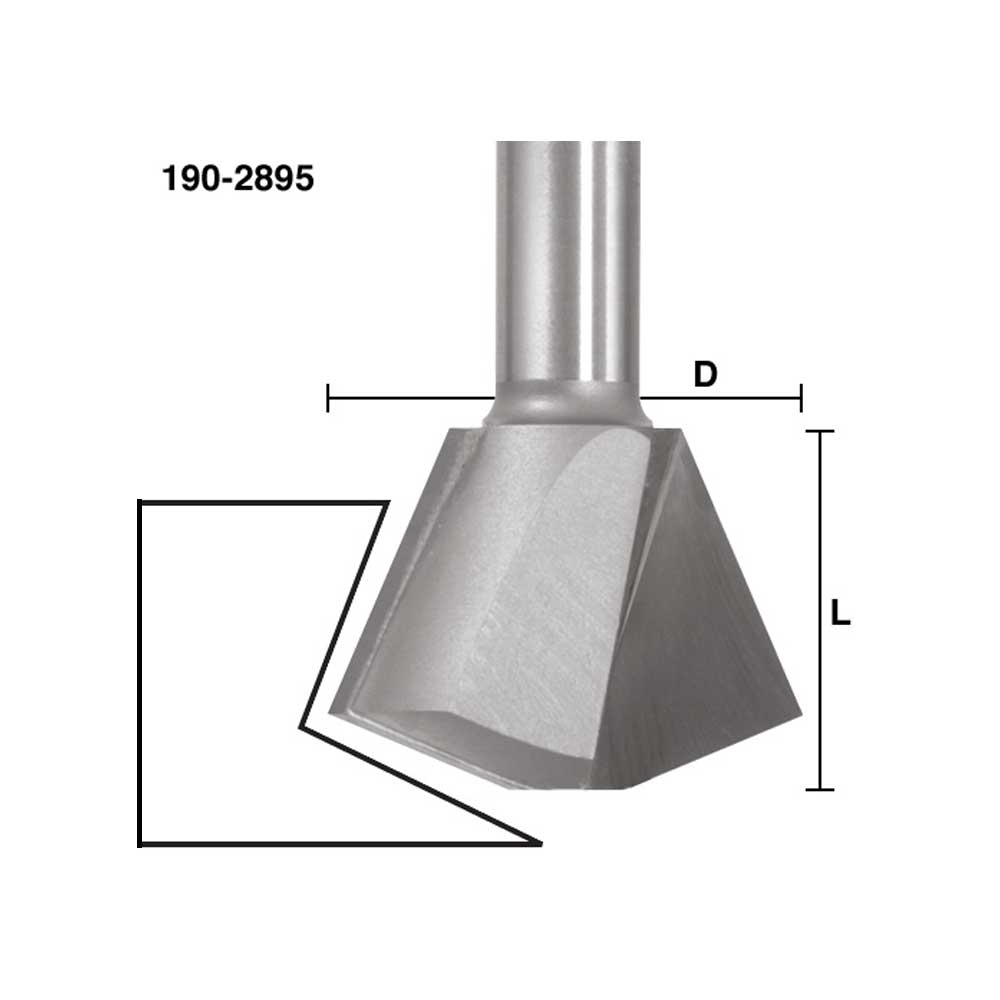

Specifications:

  • Angle: 67-1/2°/ 67-1/2°
  • Max Stock Thickness: 1"
  • (D) Large Diameter: 1-5/8"
  • (L) Cutting Length: 1-1/4"
  • Overall Length: 2-3/4"
  • Shank: 1/2"
