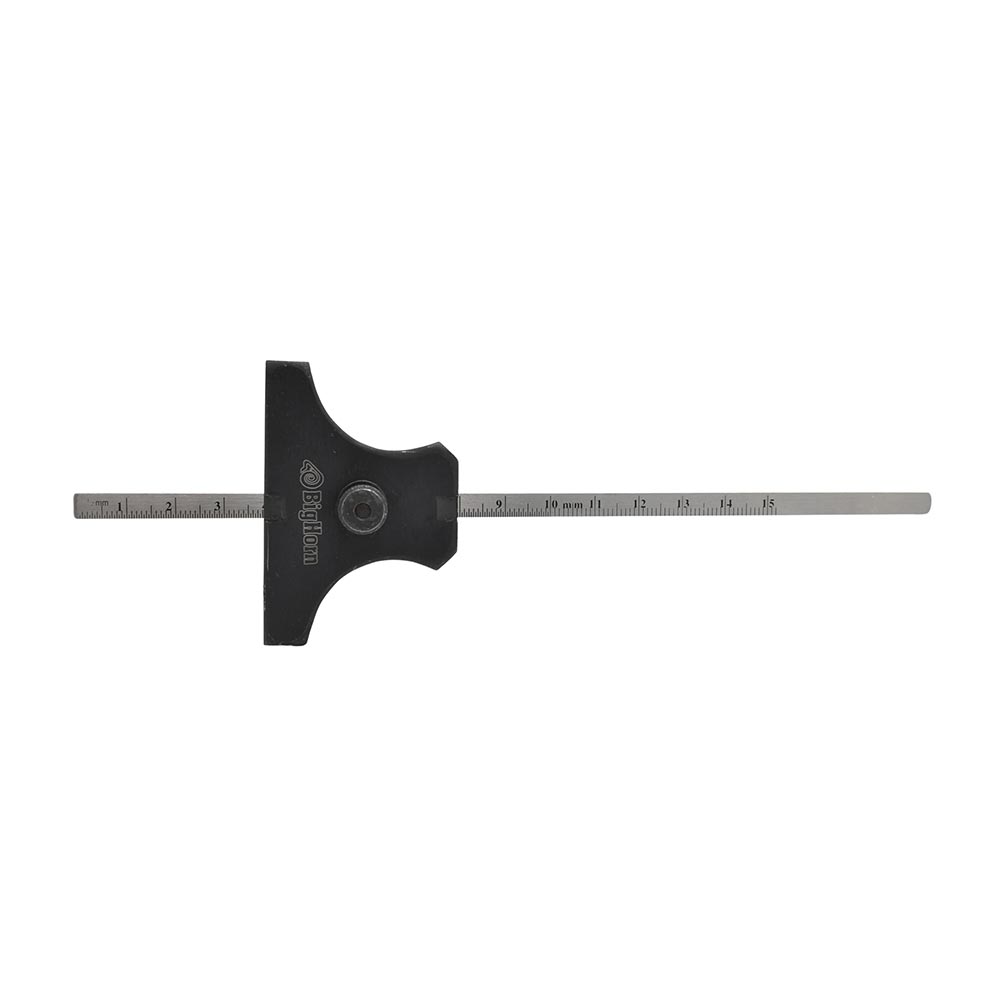

The Big Horn 19209 Depth and Angle Gauge comes equipped with a Spring tension knurled nut for easy depth measurement and locking. Fitted with 6 inch/150 mm stainless steel rule graduated 64 on one side and 0.5 mm on reverse. Rule measures 7/32 inch (5.5 mm) wide and .041 inch (1.05 mm) thick. Angular depth gauge can be used as a protractor for measuring angles 15°, 30° and 45° which are marked on the tool

Features:

• This steel depth gauge is used to quickly obtain measurements of holes or grooves by adjusting the rule to the desired depth
• This depth gauge consists of a gun metal finished base and a steel rule
• This gauge can be adjusted to the required measurement and then locked into position by a knurled nut
• Head is cut out on one side, adjacent to the rule, permitting easier and more precise measurements

Specifications:

• Length: 6 Inch
• Dimensions: 1-1/2" x 2-1/4" x 3/16"
