  2. 19214 17/64" To 1/2" Radius Gauge (AGR1110, 808-0496)

17/64" To 1/2" Radius Gauge (AGR1110, 808-0496)

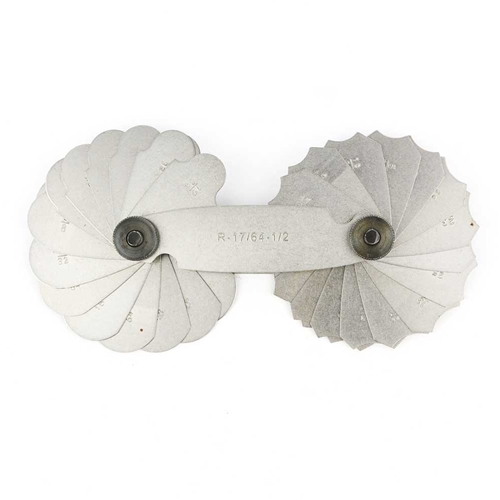

Big Horn 19214 17/64" To 1/2" Radius Gauge (AGR1110, 808-0496)

https://tscconnect.americangeneraltools.com/web/image/product.template/689/image_1920?unique=1c9ff22
MODEL NO:
N/A
UPC NO:
766565192146
Days
:
Hours
:
Mins
:
Secs

This combination does not exist.

 to view price
Product Image
  • Wire / Radius / Screw Pitch Gauges

    • 17/64" To 1/2" Radius Gauge (AGR1110, 808-0496)

    $ 17.33 $ 17.33
    Contact Us
    Share :

    Big Horn 19214 17/64 inch up to 1/2 inch Radius gauge is a very useful gauge for Tool & Diemakers, Machinists, Screw machine operators, Patternmakers, Layout persons and other mechanics to layout and check the radii of tools & dies, patterns etc.


    Features:

    • 26 leave gauge with locking nut
    • Leaves are specially shaped so they can measure fillets and radii in corners and against shoulders
    • All leaves are marked

    Specifications:

    • Leaves: 26 (13 Convex, 13 Concave)
    • Range: 17/64 inch - 1/2 inch
