Description:

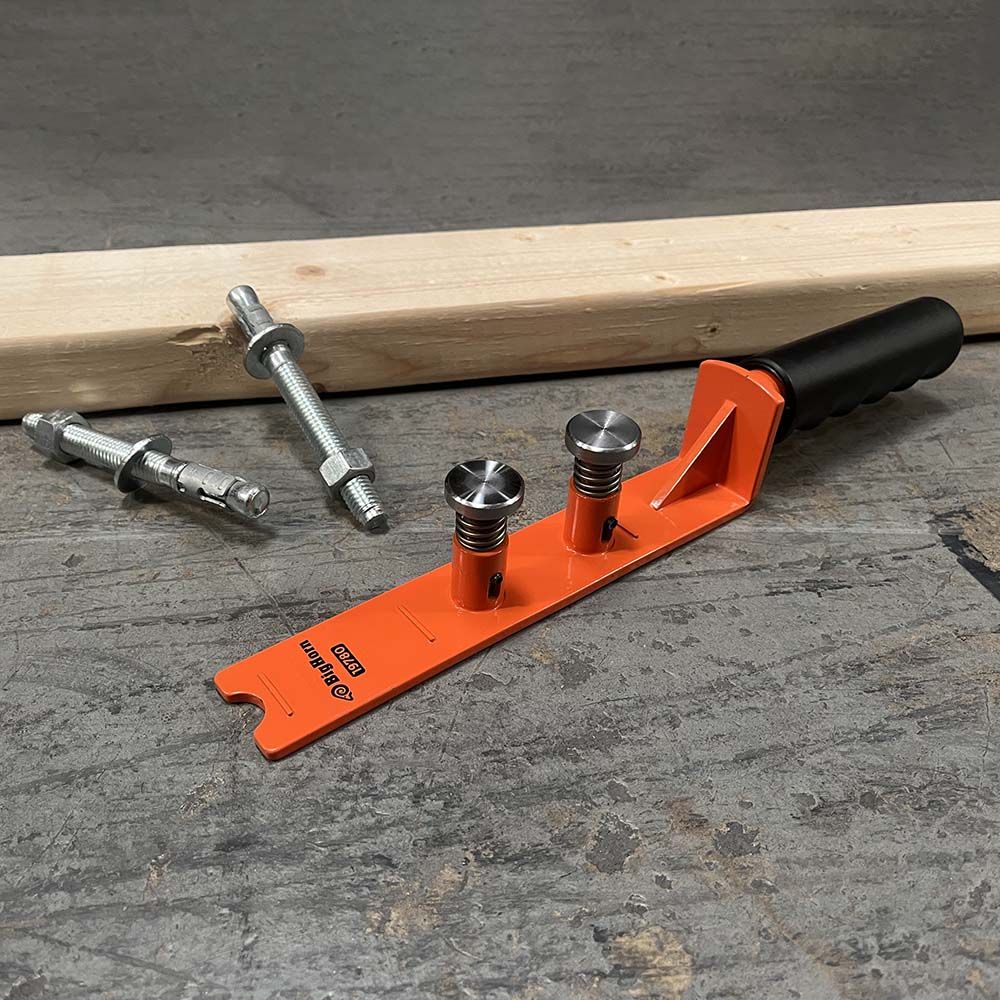

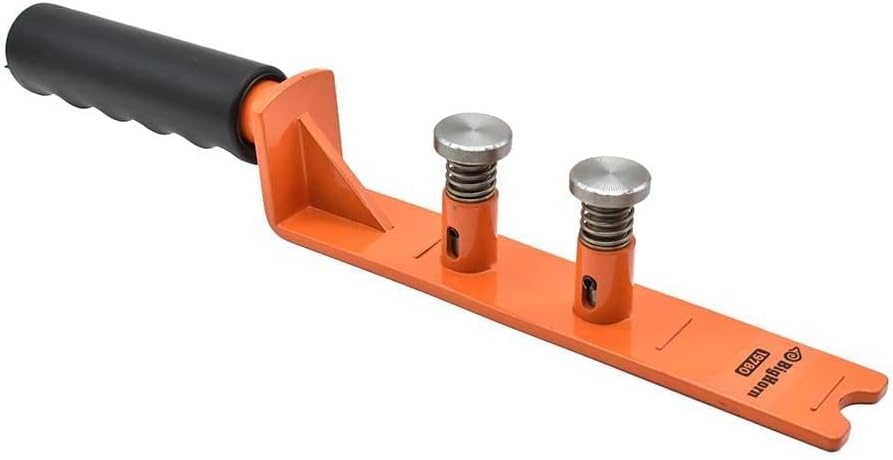

The Big Horn 19780 Anchor Bolt Guide is the ideal tool for quick and precise anchor-bolt layout on mudsills. Built from heavy-duty steel, it features spring-loaded marking pins and a comfortable, molded handle, making it easy to mark accurate drill locations on both 2x4 and 2x6 sills and plates. Designed for consistent, error-free alignment along concrete foundations, this tool is a must-have for any framer looking to save time and improve accuracy on every project.

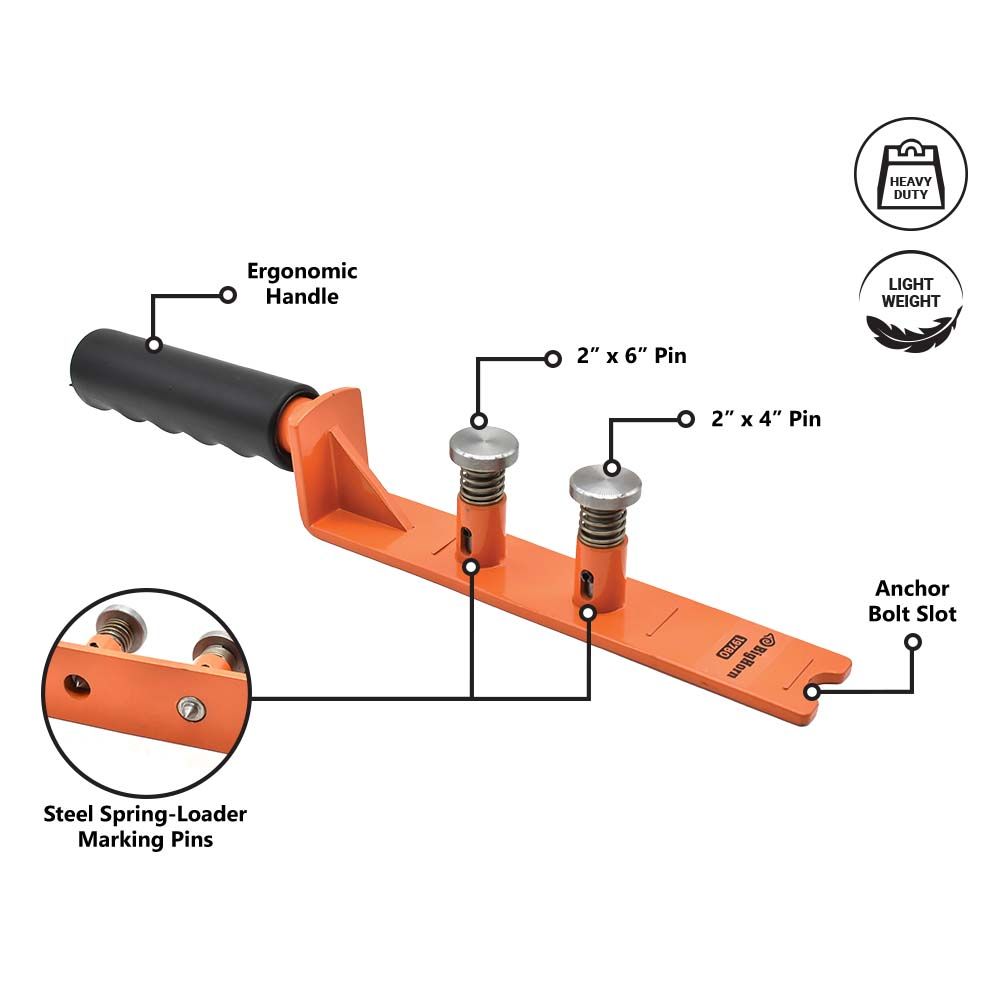

Features:

• Designed for precise anchor-bolt layout along concrete foundations, reducing alignment errors and saving time.
• Aligns 2x4 or 2x6 wood pieces parallel to pre-installed anchor bolts in concrete, ensuring each bolt hole is precisely marked and positioned.
• Constructed from heavy-duty steel for durability and long-lasting performance on job sites.

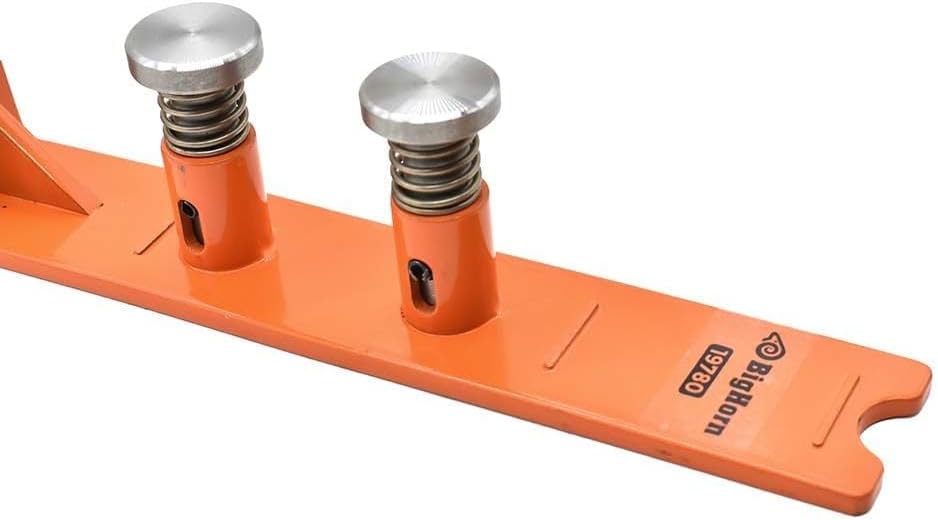

• Equipped with stainless steel spring-loaded marking pins to ensure consistent and accurate drill markings.
• Ergonomic molded handle provides a comfortable grip for easy, controlled use.
• Perfect for both professional framers and DIY users seeking reliable, accurate results on every project.

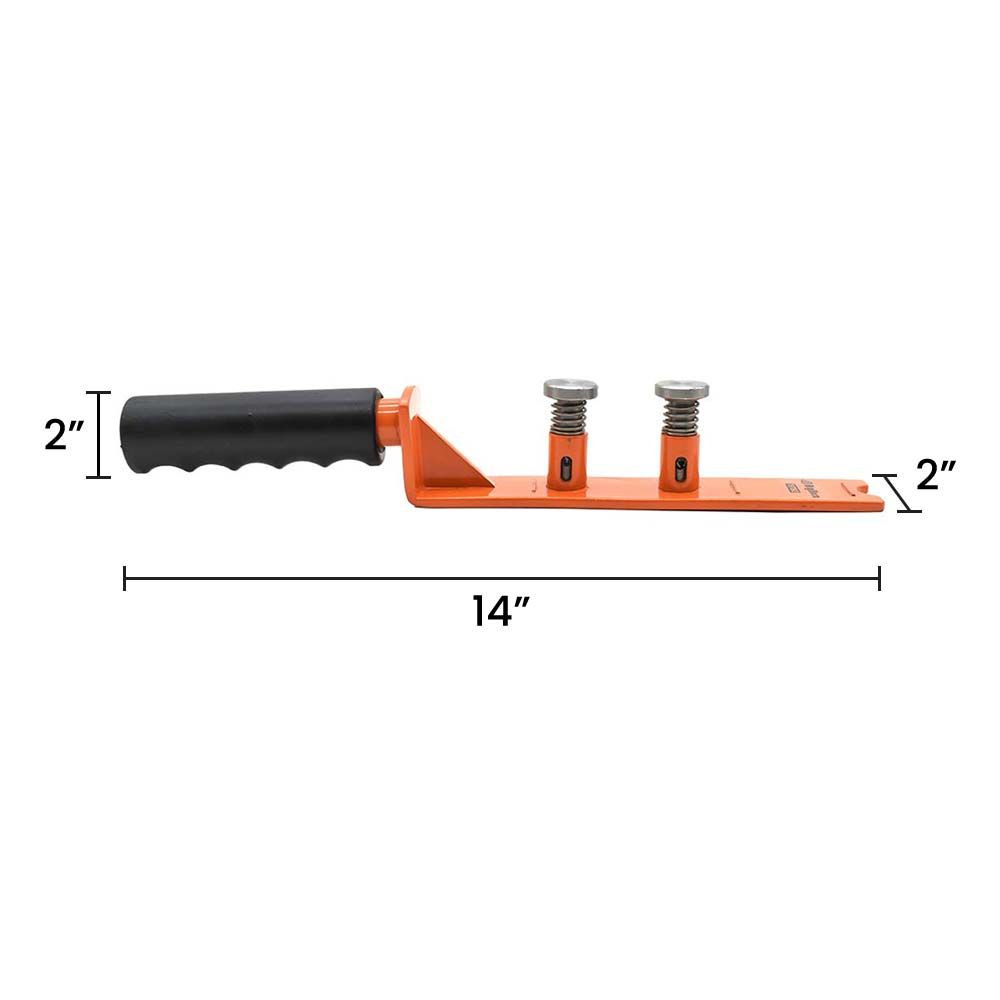

Specifications:

• Material: Heavy-Duty Steel
• Compatibility: 2” x 4” & 2” x 6” wood sills and plates
• Marking Mechanism: Steel-Spring Loaded Marking Pins

Instructions:

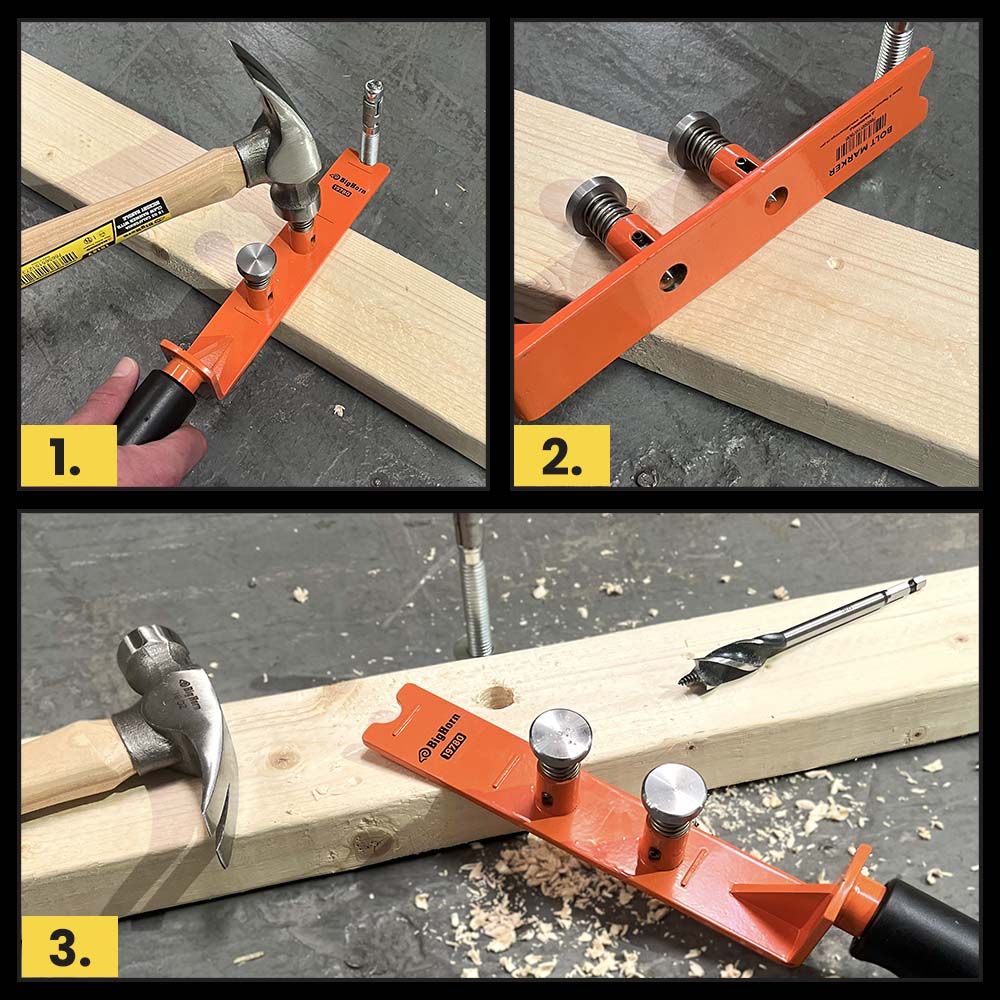

1.      Snap chalk lines on the foundation to outline the wall placement.

2.      Align the sill plate (or mud plate) with the chalk lines, ensuring it matches the layout.

3.      Position the indicator wheel of the bolt marker guide against the anchor bolt, resting securely on the sill plate. Use the appropriate side of the tool depending on whether you’re working with 2x4 or 2x6 walls.

4.      Strike the top of the tool firmly with a hammer to leave a clear and accurate mark for drilling.
