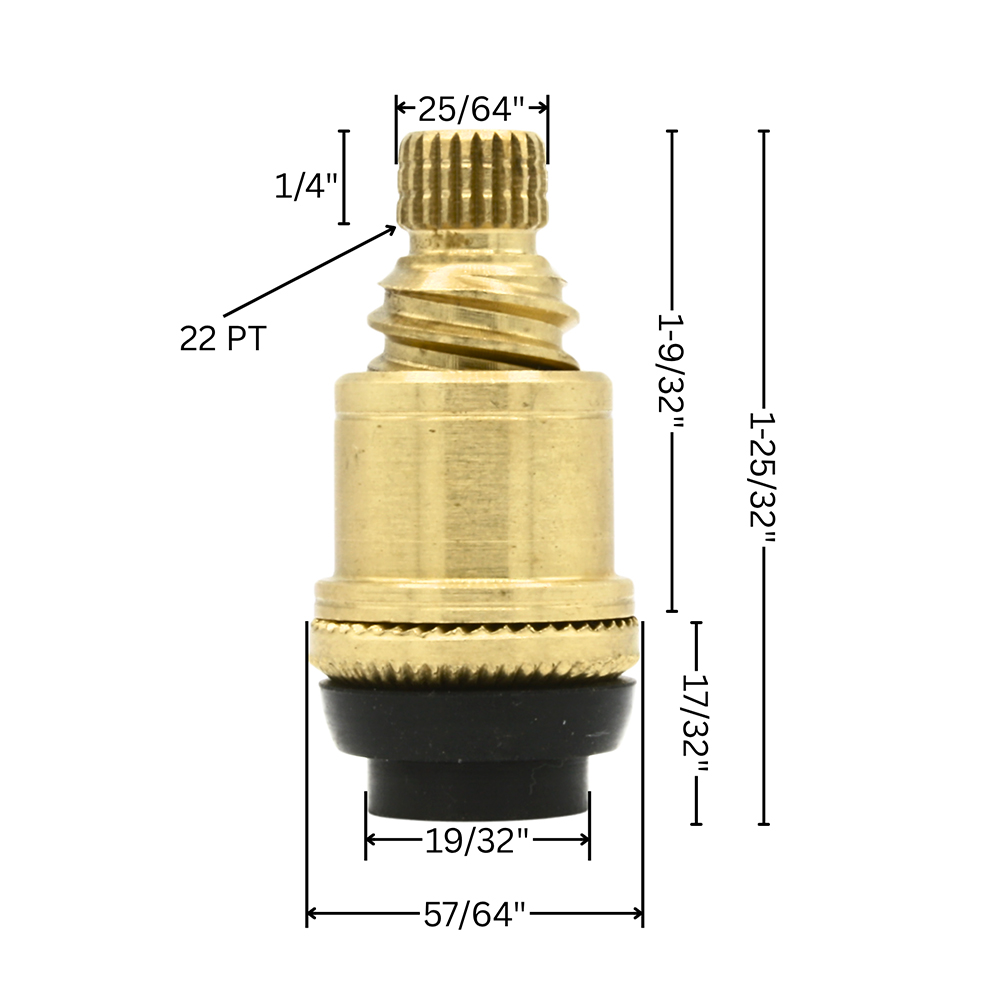

The Thrifco 4400834 Brass Stem Assembly features a 1-25/32 in. overall length (45.2 mm), 57/64 in. maximum diameter (22.5 mm), and 22 pt broach with 25/64 in. diameter (10.10 mm) for fitment reference in compatible American Standard Aqua Seal faucet applications. It supports cold side faucet repairs and is used to replace worn or leaking stem assemblies. Brass construction provides a replacement stem component for this faucet style. The stem installs as an internal replacement component inside the faucet body. It is suited for residential, maintenance, and light commercial faucet repairs.

Features:

• Replaces Danco 15730E and 15730B
• Replaces a worn or damaged stem assembly in compatible American Standard Aqua Seal faucet applications.
• Supports cold side faucet repairs and replacement w ork.
• Brass construction provides a replacement stem component for faucet repairs.
• 22 pt broach with 25/64 in. diameter (10.10 mm) helps confirm handle fitment.
• Replaces the internal valve component without changing the full faucet assembly.

Specifications:

• Compatible with: American Standard Aqua Seal
• Faucet Side: Cold
• Overall Length: 1-25/32 in. (45.2 mm)
• Maximum Diameter: 57/64 in. (22.5 mm)
• Broach: 22 Pt, 25/64 in. Diameter (10.10 mm)
