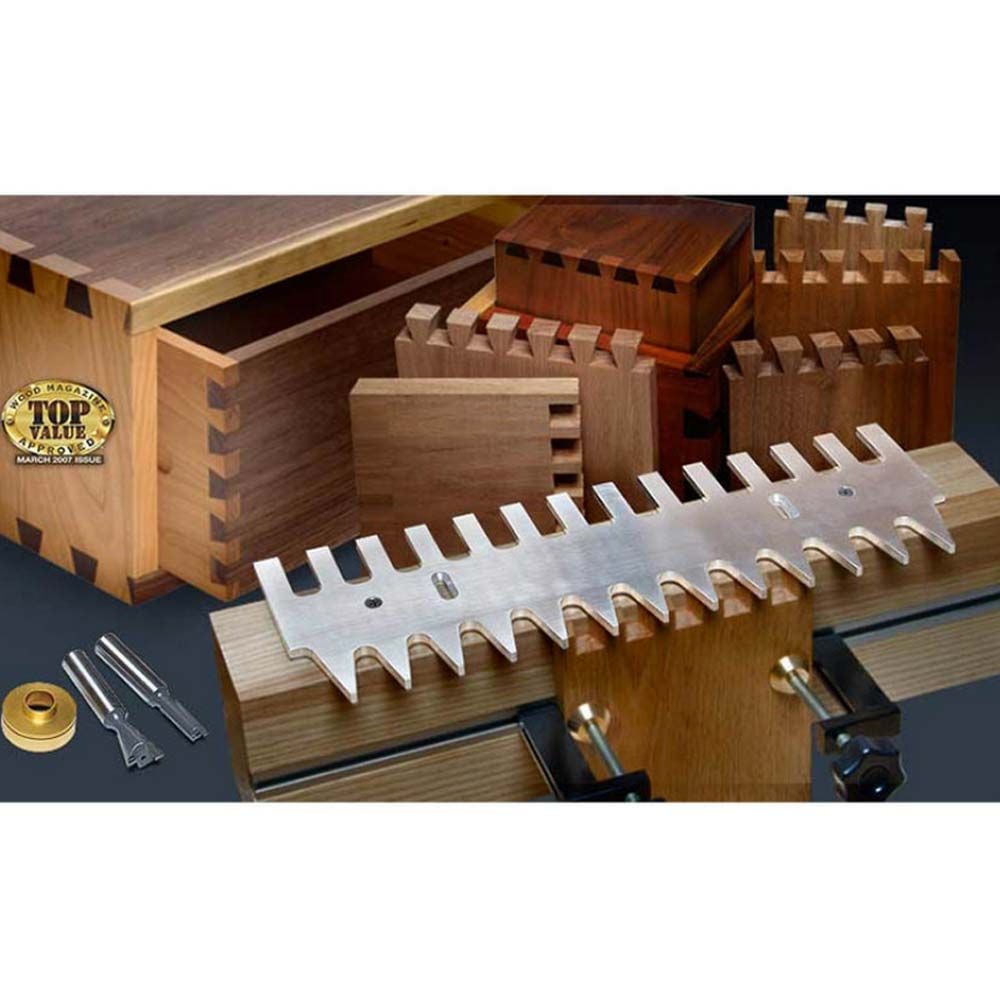

Through Dovetail Jig Set - 1/4" Shank is an easy to use, inexpensive tool for making classic through dovetails, a joint that is the hallmark of fine craftsmanship.

Features:

• For a router table or handheld router.
• The templates are made of sturdy cast aluminum and cuts either 3/4" wide tails, 1-1/8" on center.
• For stock thickness of 1/2" to 7/8" (max).
• After a one time initial setup, simply clamp the fixture in place on each board, and rout the pins and tails.
• There is no limit to the length of board you can dovetail, and by shifting the fixture, you can create variable spaced or extra wide dovetails.
• The 5/8" Router Guide Bushing works with any router that has a router baseplate with a 1-3/16" center hole.

Includes:

• 15" Aluminum Through Dovetail Template for 3/4" Wide Tails and 1-1/8" on center.
• 3/4" Dovetail Bit 14 degree with 1/4" Shank.
• 3/8" Straight Bit with 1/4" Shank.
• 5/8" OD Brass Bushing.
