  2. 70133 "B" Latch Template with Center Locator - Finish Size 1-1/8-Inch x 2-1/4-Inch

"B" Latch Template with Center Locator - Finish Size 1-1/8-Inch x 2-1/4-Inch

Big Horn 70133 "B" Latch Template with Center Locator - Finish Size 1-1/8-Inch x 2-1/4-Inch

https://tscconnect.americangeneraltools.com/web/image/product.template/1527/image_1920?unique=0b6c826
MODEL NO:
N/A
UPC NO:
766565901335
Days
:
Hours
:
Mins
:
Secs

This combination does not exist.

 to view price
Product Image
  • Door Lock Jigs

    • "B" Latch Template with Center Locator - Finish Size 1-1/8-Inch x 2-1/4-Inch

    $ 17.39 $ 17.39
    Contact Us
    Share :

    Big Horn 70133 'B' Latch Template with Center Locator - Finish Size 1-1/8-Inch x 2-1/4-Inch Replaces Templaco LT-126B.

    Description:

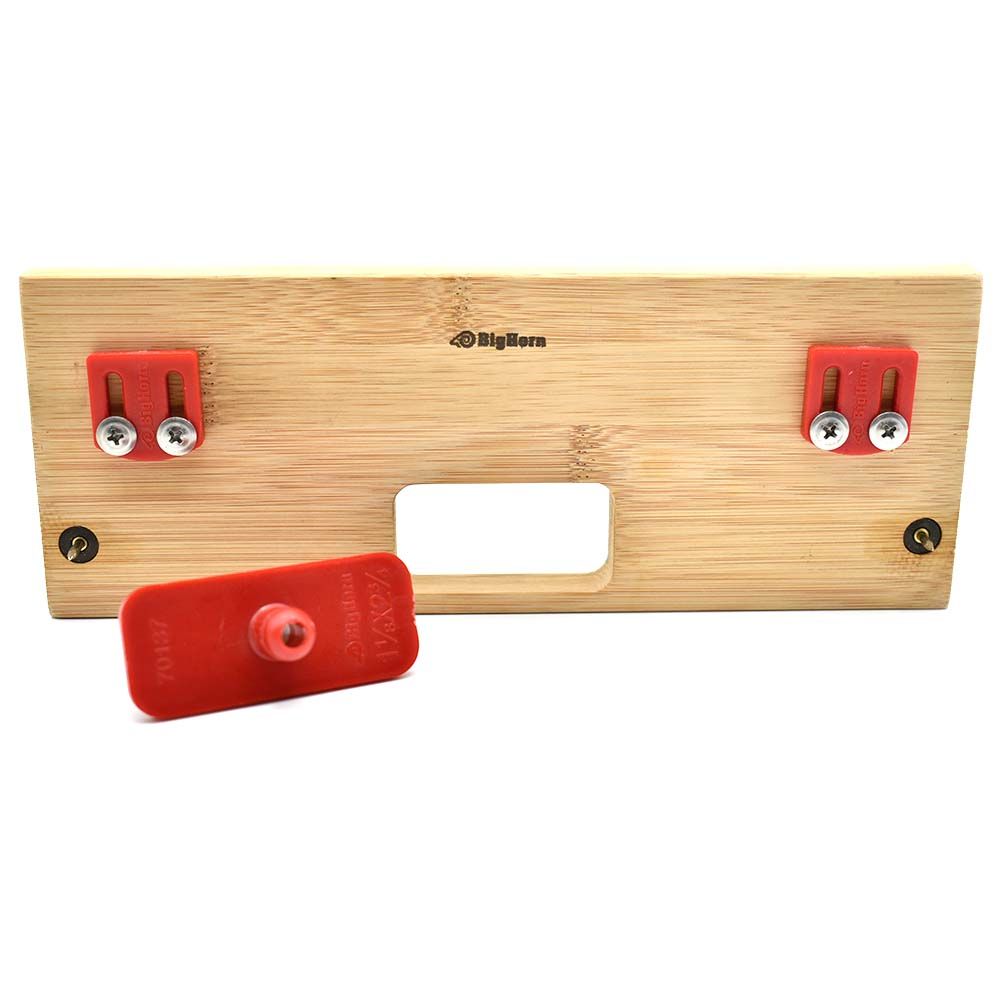

    The Big Horn 70133 B Latch Template with Center Locator is designed to produce a precise 1-1/8" x 2-1/4" finish mortise for the edge of doors, ensuring a professional-quality fit for residential latch installations. The included red plastic center locator positions the template accurately on the door edge in alignment with a 1” bored hole. Each template includes two door locators for precise alignment and fine steel nails at both ends to easily and securely attach the template to the door. Secure the template to the door jamb, then remove the locator and route the mortise using a 5/8” router template guide and a 1/2” mortising bit.  Ideal for both contractors and DIYers, this template delivers consistent, precise cuts for smooth and accurate latch installation every time.


    Features:

    • Produces a precise 1-1/8" x 2-1/4" finish mortise for latch installations on door edges.
    • Includes a red plastic center locator for accurate alignment with a 1" bored hole in the door.
    • The 10" carrier is made from durable bamboo, offering eco-friendly construction and excellent stability during use.
    • Includes two adjustable red stops on the back of the template that can be adjusted up to 1/2", accommodating various door thicknesses for versatile use.
    • Fine steel nails at both ends of the carrier make it easy to securely attach the template to the door.
    • Secure the template to the door jamb, then remove the locator and route the mortise using a 5/8” router template guide and a 1/2” mortising bit.
    • Ideal for contractors and DIYers, ensuring accurate and consistent results for smooth hinge installations.
    • Can be used with our 70168 clamp-on kit (sold separately) for a no-nail installation, protecting the door from unwanted marks.
