Big Horn 70160 Multi-Latch Template - 1" X 2-1/4", 1-1/16" X 2-1/4" Or 1-1/8" X 2-1/4" Deadbolt
Description:

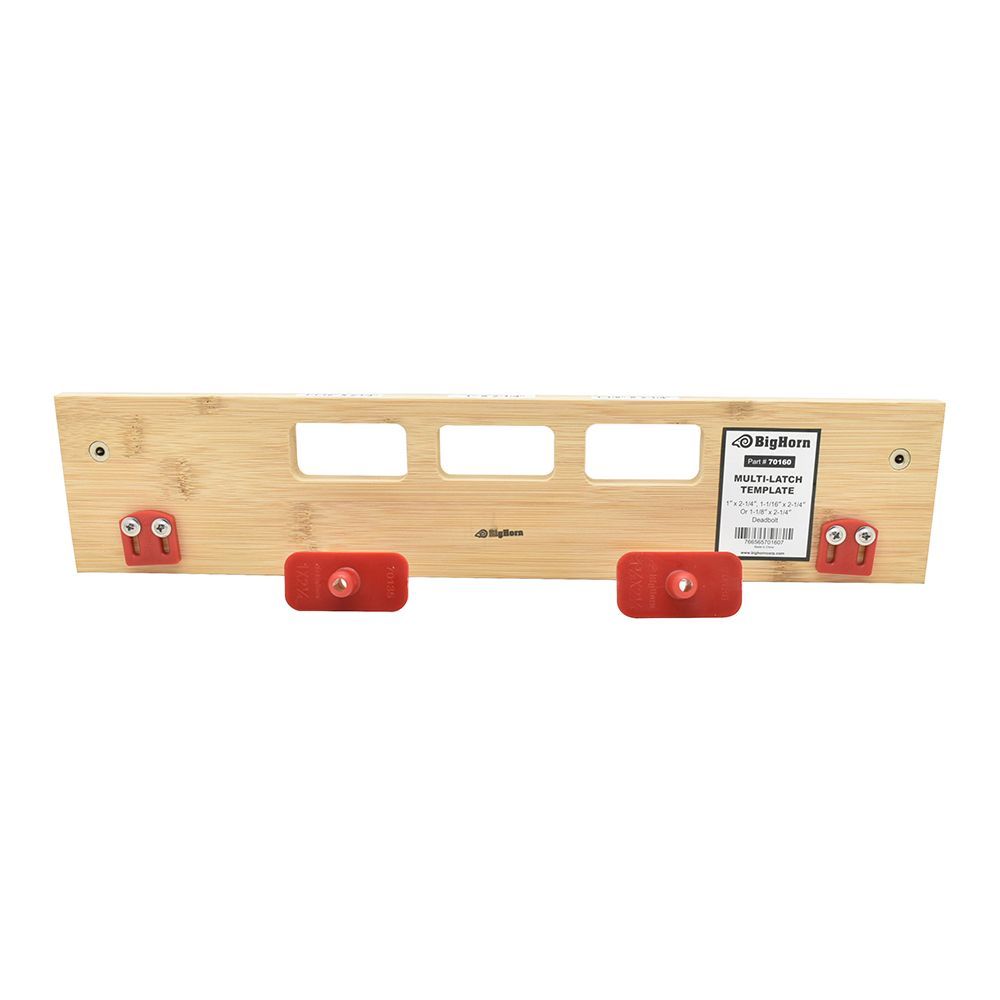

The Big Horn 70160 Multi-Latch Pocket Door Edge Mortising Template combines three of the most popular residential lockset sizes into a single 17” carrier. This versatile template produces three finish latch mortise sizes: 1” x 2-1/4”, 1-1/16” x 2-1/4”, and 1-1/8” x 2-1/4”. Each template includes two door locators for precise alignment, and the carrier features fine steel nails at both ends to easily and securely attach the template to the door. Secure the template to the door jamb with fine steel nails, then remove the locator and route the mortise using a 5/8” router template guide and a 1/2” mortising bit. The ultimate solution for efficient and professional pocket door hinge installation.
Features:

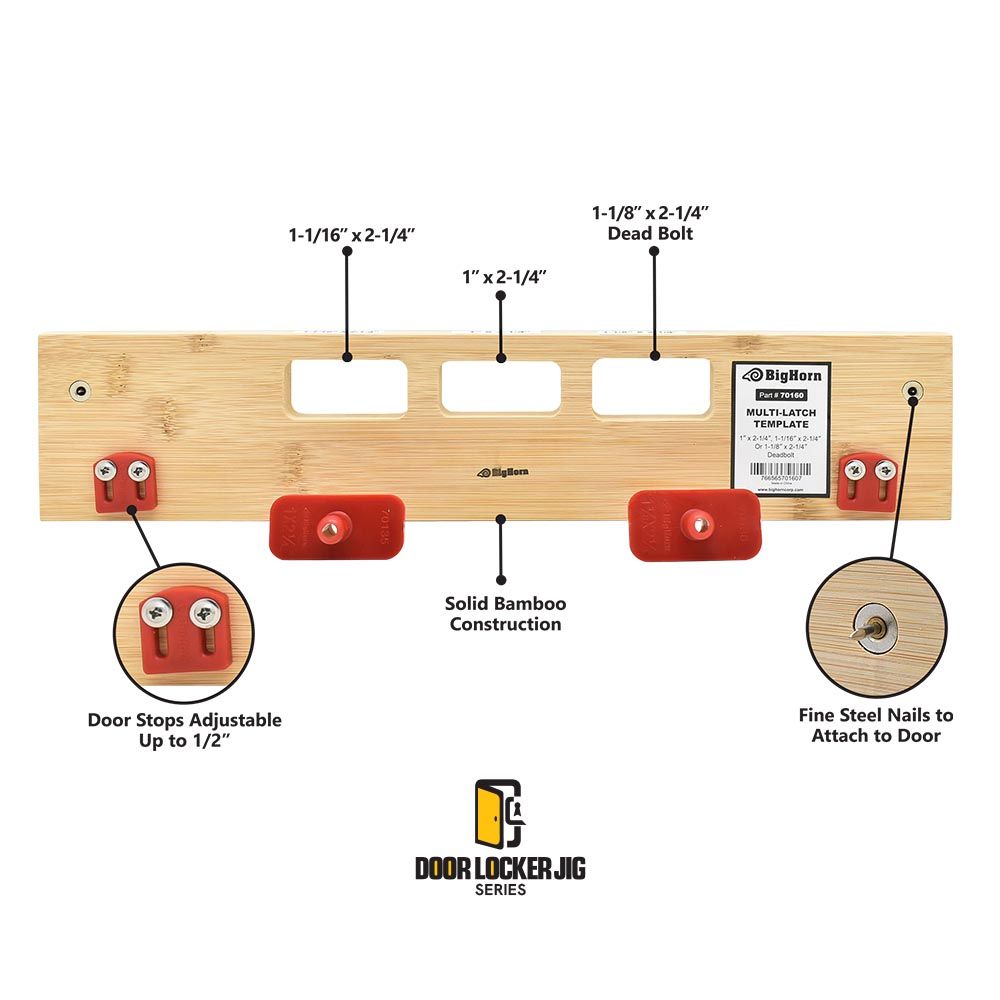

- The template includes three of the most common latch mortise sizes: 1” x 2-1/4”, 1-1/16” x 2-1/4”, and 1-1/8” x 2-1/4” to accommodate popular residential locksets.
- A durable 17” bamboo carrier combines all three sizes into one convenient template for easy use.

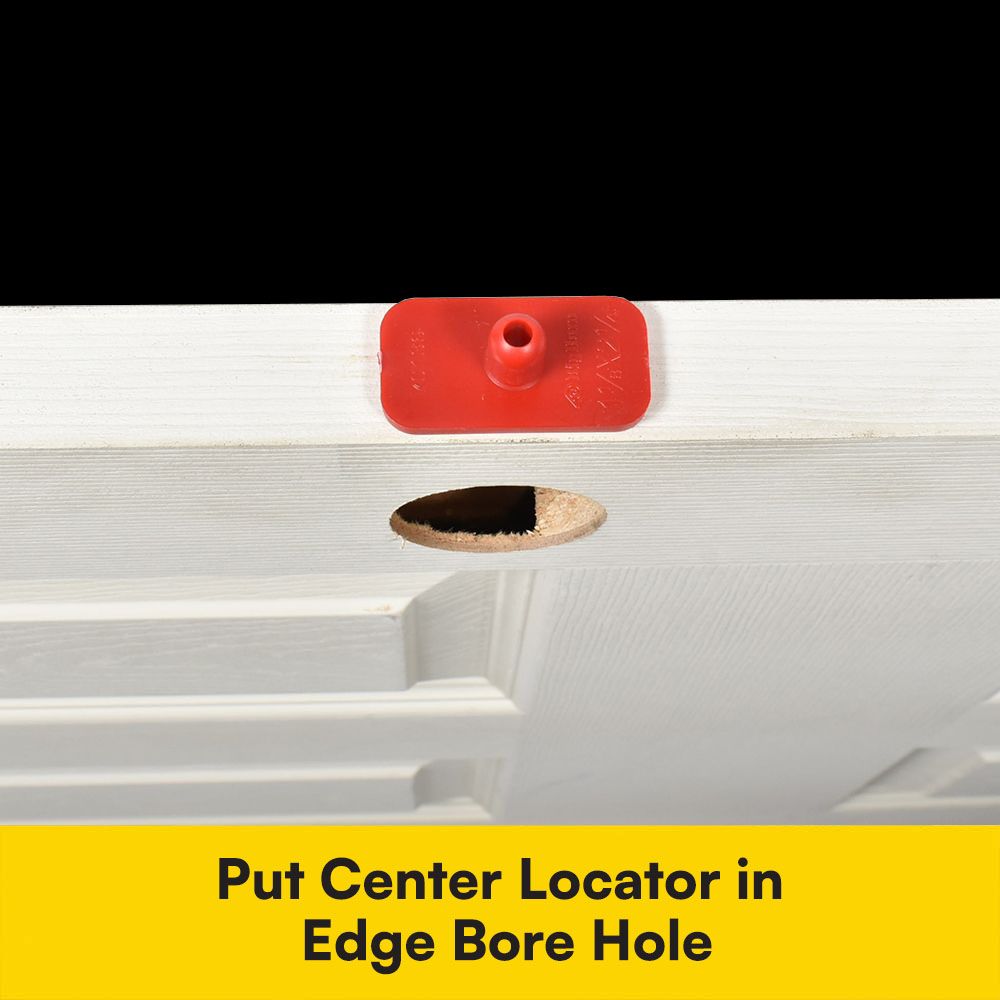

- Two plastic center locators are included to ensure precise alignment and accurate mortising every time.

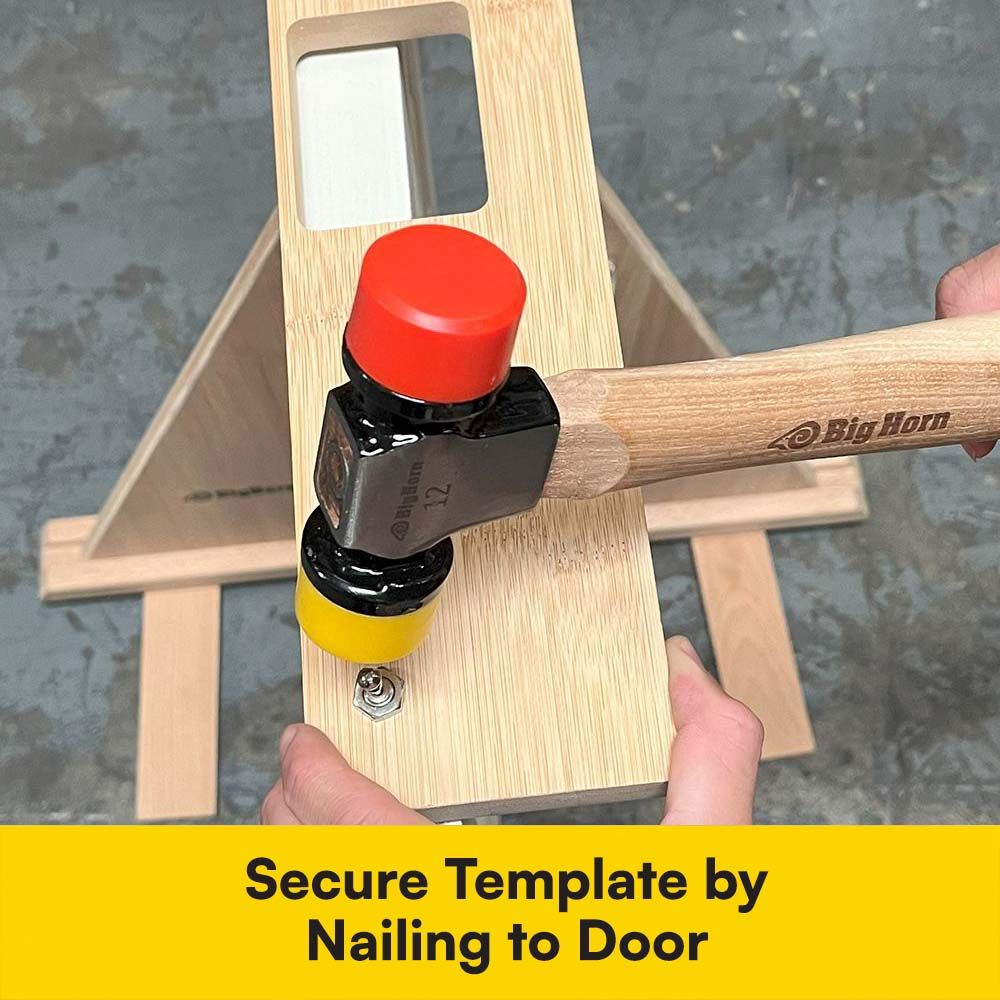

- Fine steel nails at both ends of the carrier make it easy to securely attach the template to the door, ensuring superior precision.

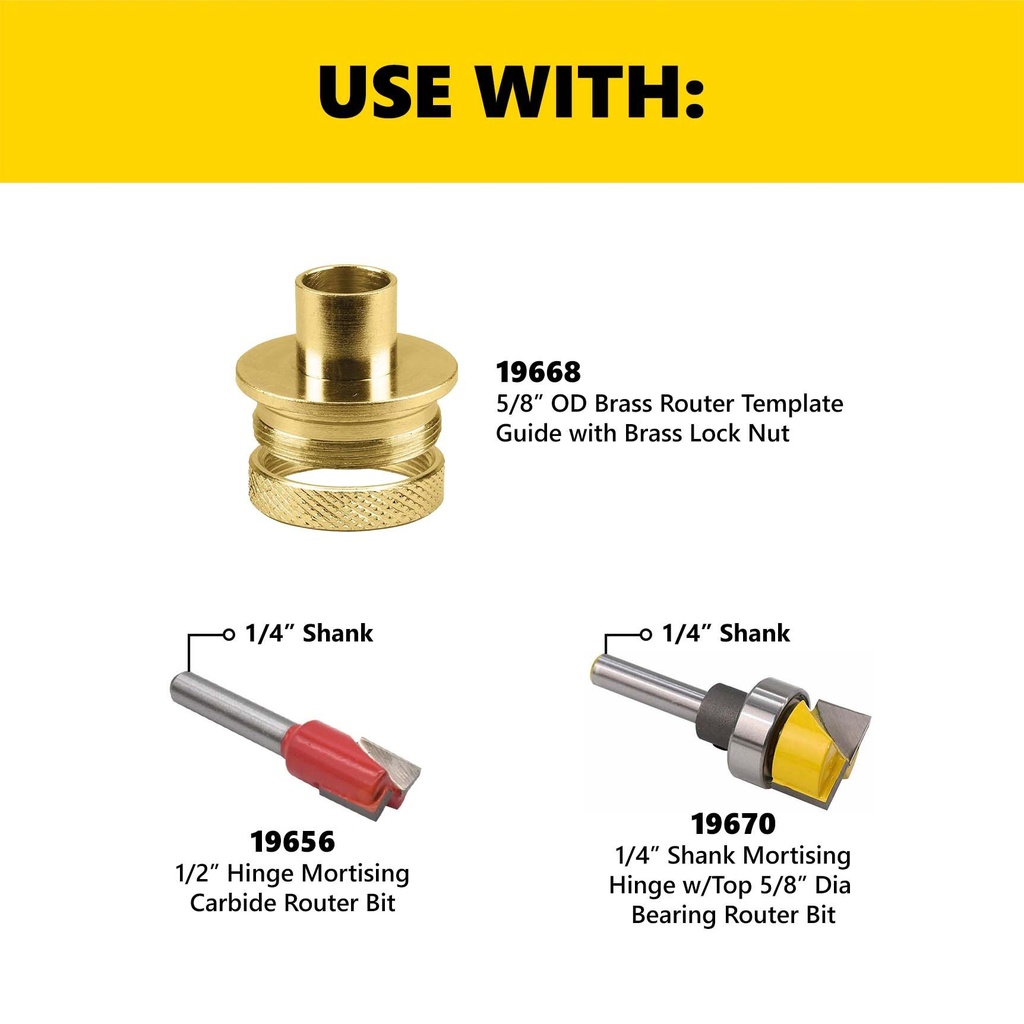

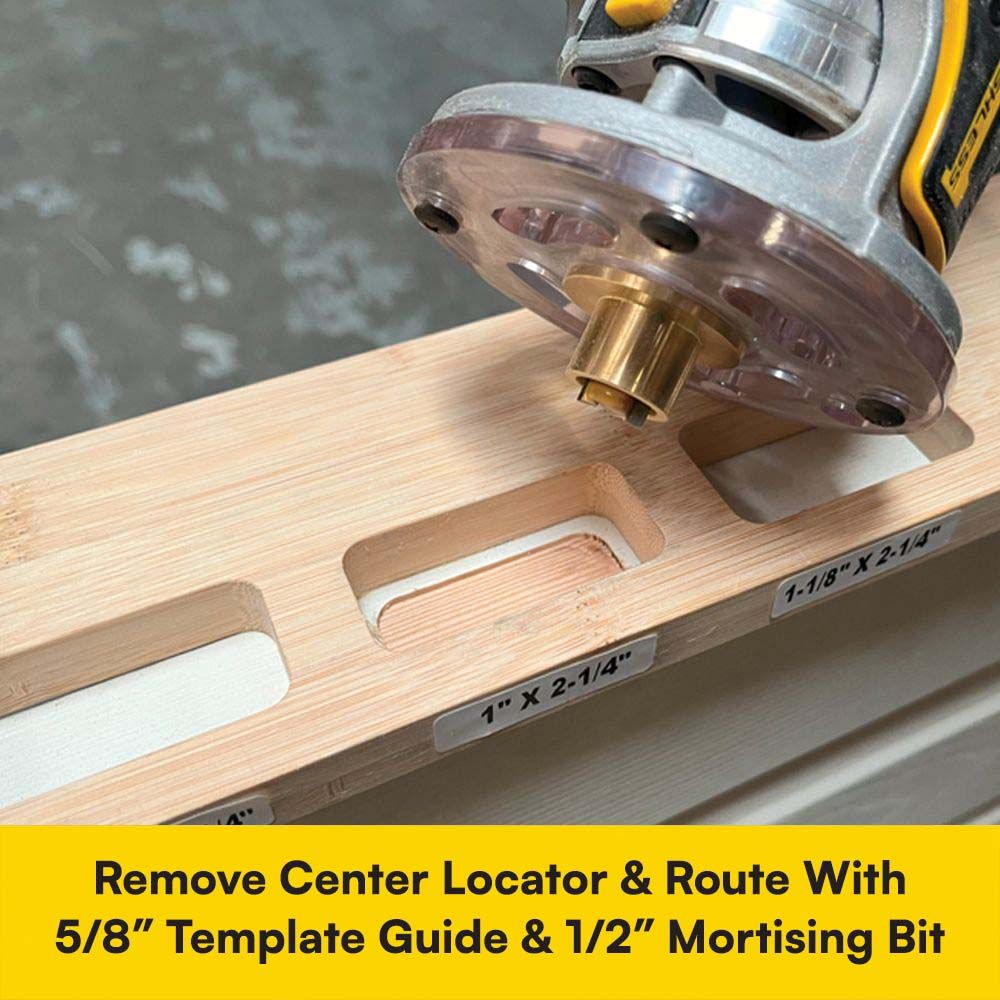

- Secure the template to the door jamb with fine steel nails, then remove the locator and route the mortise using a 5/8” router template guide and a 1/2” mortising bit.
- This template simplifies pocket door hinge mortising and works with the most standard residential locksets, delivering quick, accurate, and professional results for any door installation project.

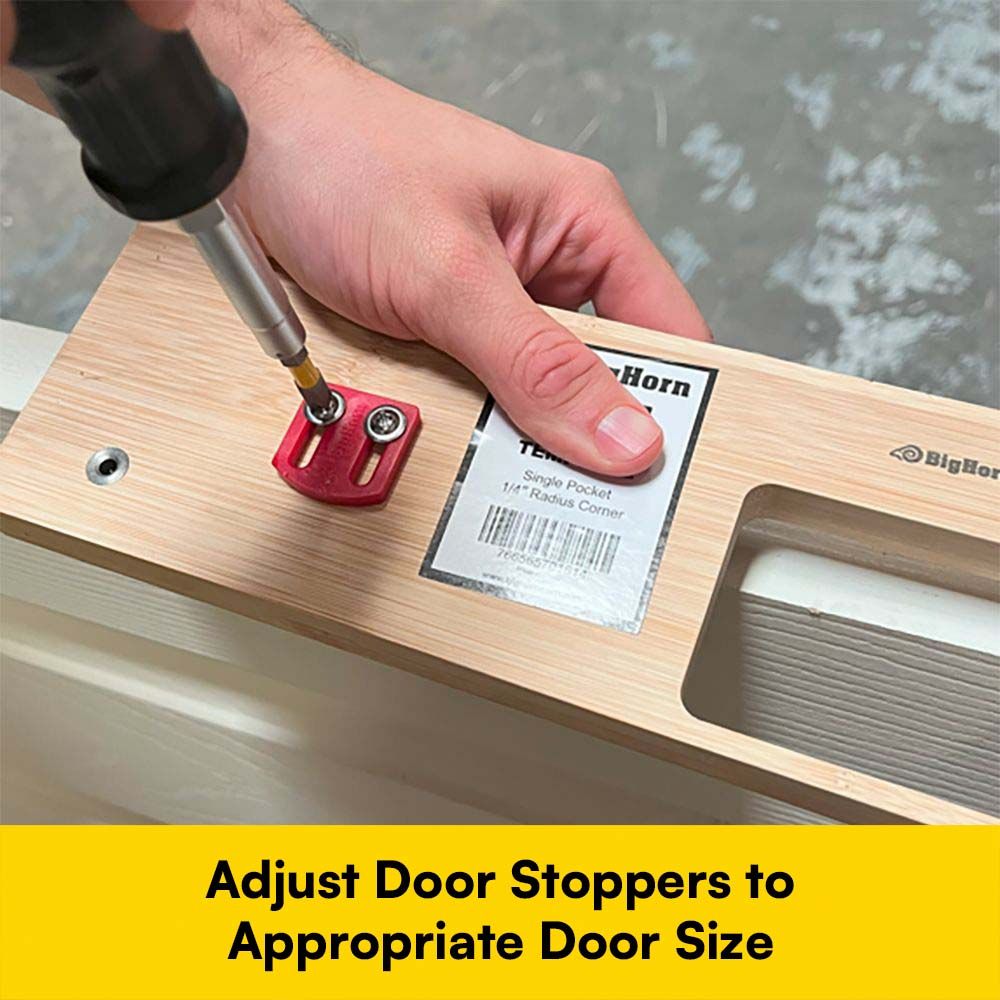

- Includes two adjustable red stops on the back of the template that can be adjusted up to 1/2", accommodating various door thicknesses for versatile use.
