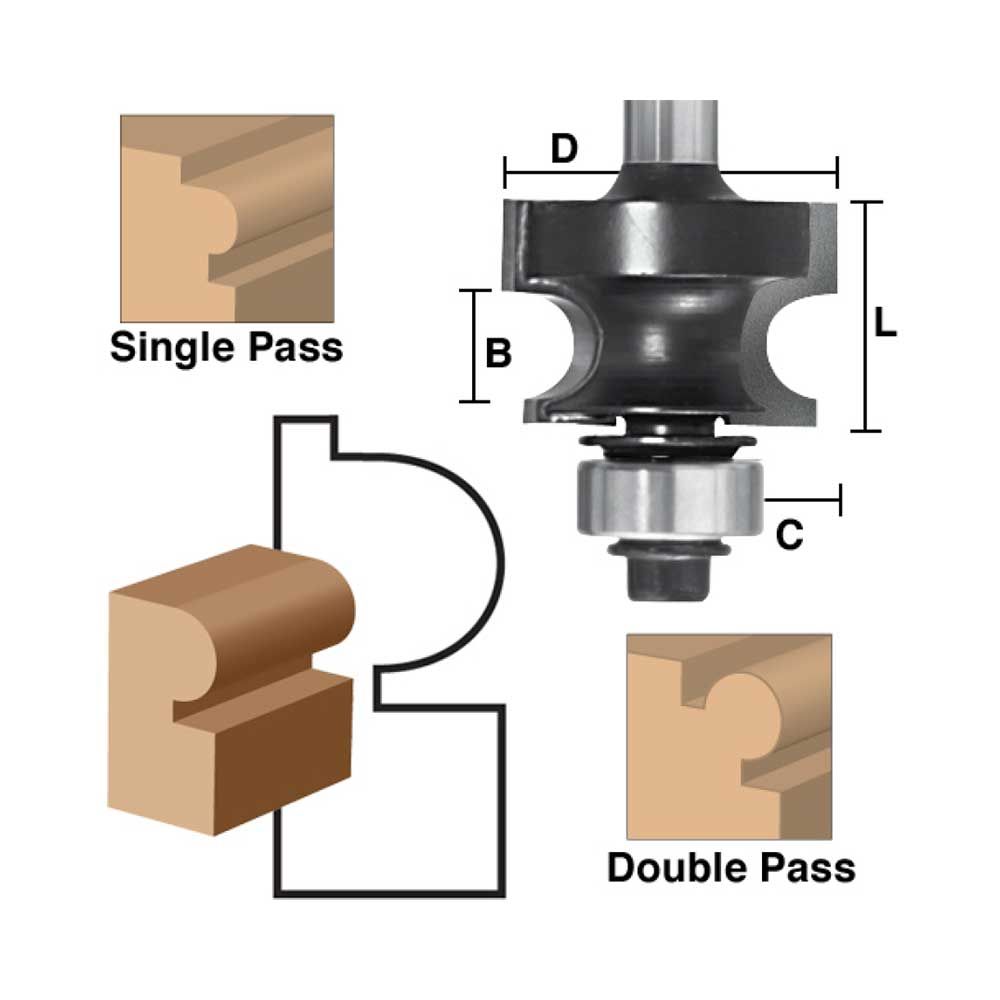

MLCS 3/16″ Edge Beading Router Bits forms a small radius on the corner of the workpiece.

Features:

• Also known as Quirk Bead Router Bits,
• By rotating the board, a full bead is formed. Forms a small radius on the corner of the workpiece.
• Rotate the work piece and make a complete corner bead in 2 passes.
• Use to match an existing bead mold trim found in older homes .
• 2 flute, carbide tipped router bits with totally enclosed ball bearing guides.

Specifications:

• (B) Bead Length : 3/16"
• (D) Large Diameter : 7/8"
• (R) Radius : 3/32"
• (C) Cutting Depth : 3/16"
• (L) Cutting Length : 1/2"
• Overall Length : 2-1/4"
• Shank : 1/2"
