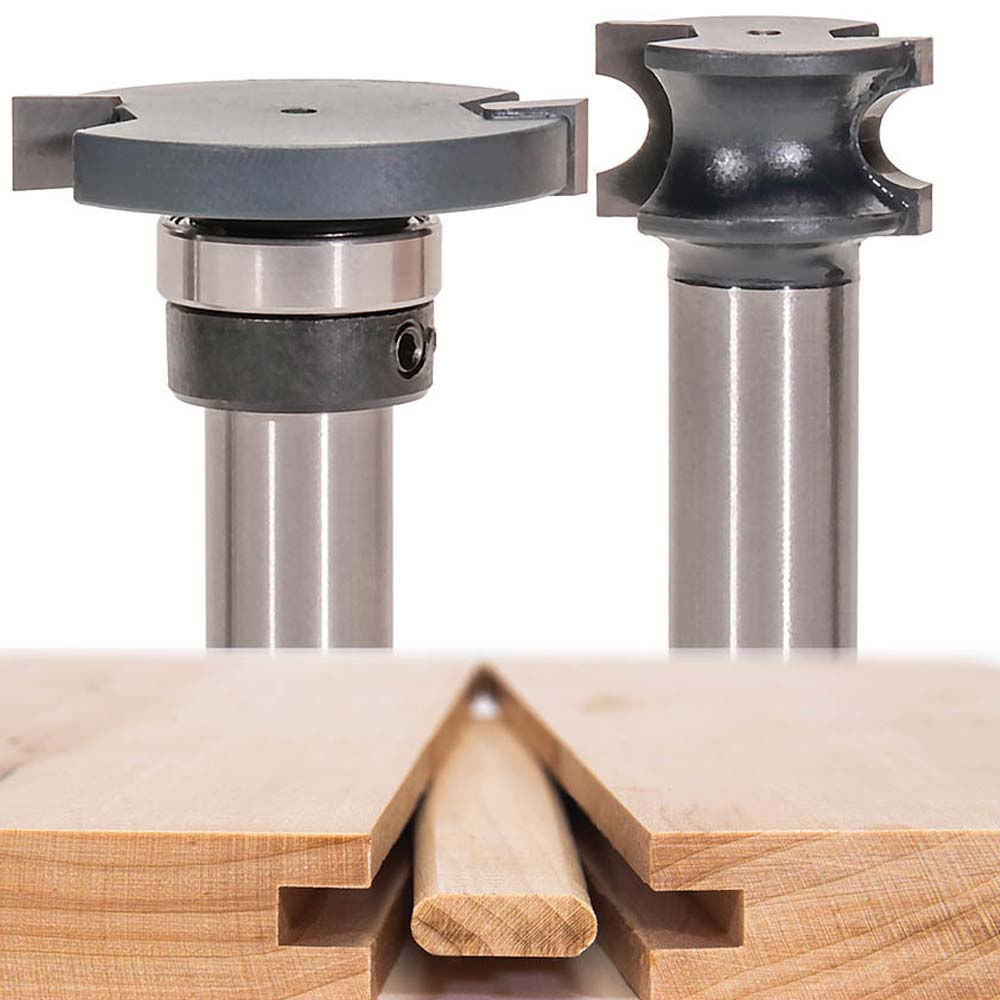

MLCS Hardwood Flooring Router Bits create spline joints using a floating tenon which are used to replace or repair hardwood flooring.

Features:

• Ideal for cleaning out grooves or creating new grooves in flooring that has already been installed.
• Top mounted bearing slot cutter creates a 1/4" high x 3/8" deep groove.
• Bull Nose bit creates a full half round on the edges of the loose tenon material to make installation easy.
• For 5/8" or Greater Stock.

Specifications:

Top Mounted Bearing Slot Cutter #7671:

• Rabbet Flooring Under Cutter.
• (L) Length: 1/4".
• (C) Depth: 3/8".
• (D) Diameter: 1-1/2".
• Overall Length: 2-1/8".
• Shank Size: 1/2".

Bull Nose Router Bit #7760:

• (B) Bead Diameter: 1/4".
• (R) Radius: 1/8".
• (D) Large Diameter: 7/8".
• (L) Cutting Length: 1/2".
• Overall Length: 2-3/8".
• Shank Size: 1/2".

TIP: The recommended size for the loose tenon is 1/4" high by 23/32" wide.
