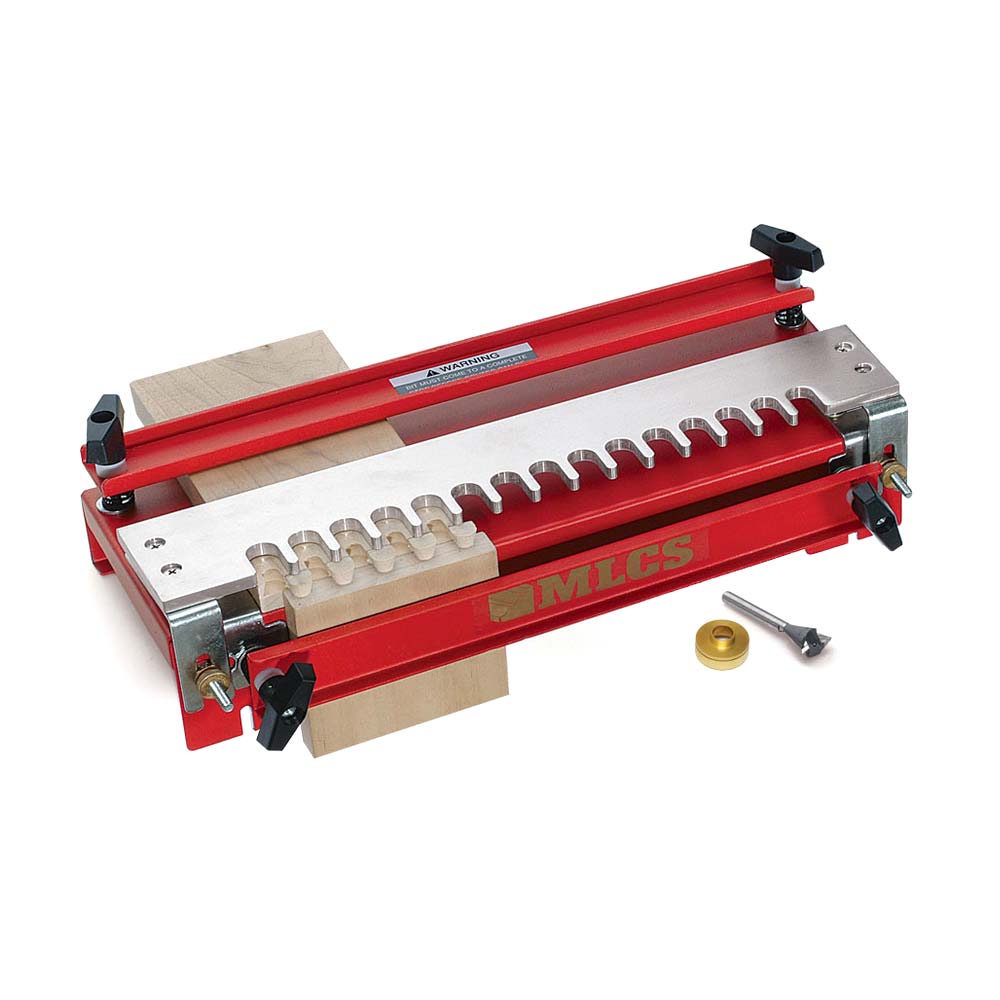

MLCS Half Blind Dovetail Jig Set with 1/2" Shank Bit is precisely CNC machined for creating strong, secure and accurate half-blind dovetail joints or half-blind rabbeted dovetail joints. Easy to Use. Solid aluminum template and steel dovetail jig. This is the perfect solution for sturdy boxes and drawers with the classic dovetail joint design. The steel beams secure both work pieces snugly. Works for 1/2" to 1" thick drawer sides and 5/8" to 1" thick drawer fronts (up to 12" high). Since you cut both sides of the half-blind dovetail joint at the same time, a perfect fit is assured for this joint. Self-spacing edge guides allow perfect offset for precise joint alignment.

Features:

• 1/2" wide half-blind dovetails (regular or rabbeted) spaced 27/32" on center for 1/2" to 1" thick drawer sides and 5/8" to 1" front, up to 12" high

Includes:

• 12" Steel Dovetail Jig
• 1/2" Half Blind Aluminum Template.
• 1/2" Dovetail Bit 14°, 1/2 shank.
• 5/8" O.D. Brass Template Guide Bushing
• Detailed Instruction Manual
