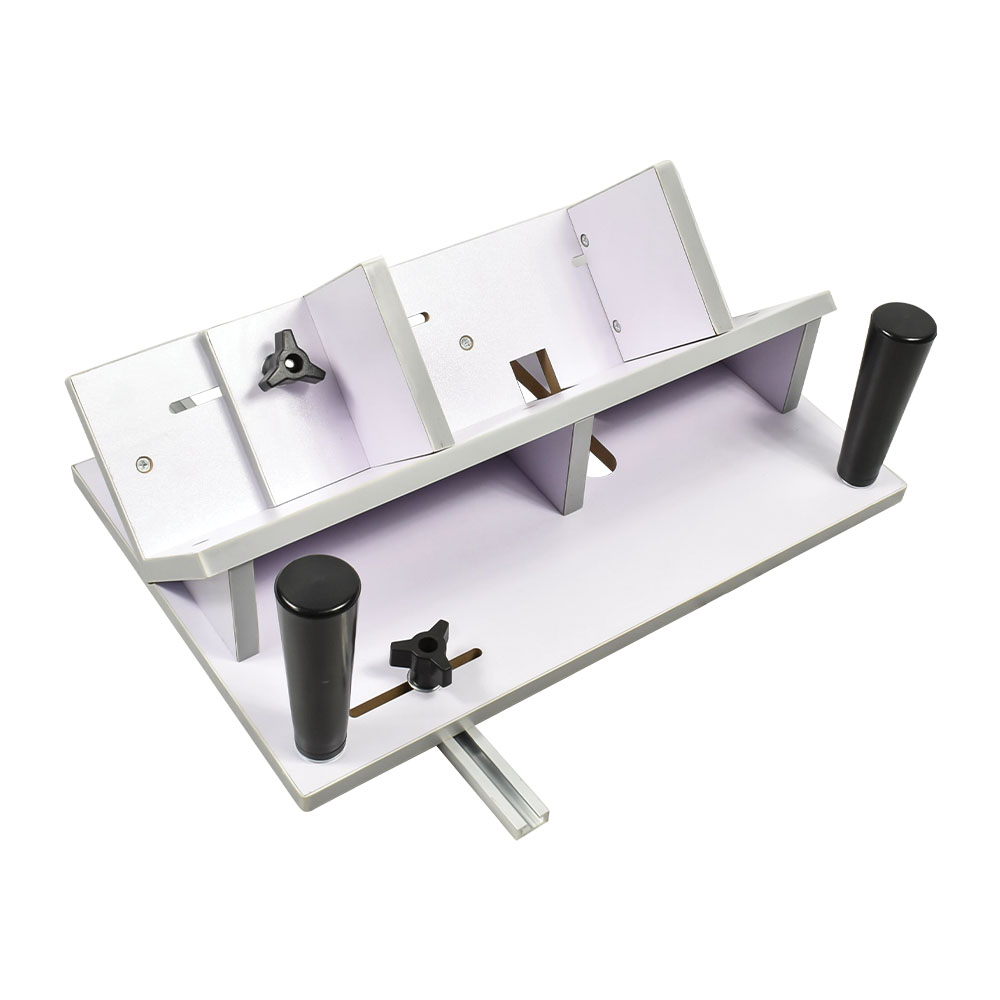

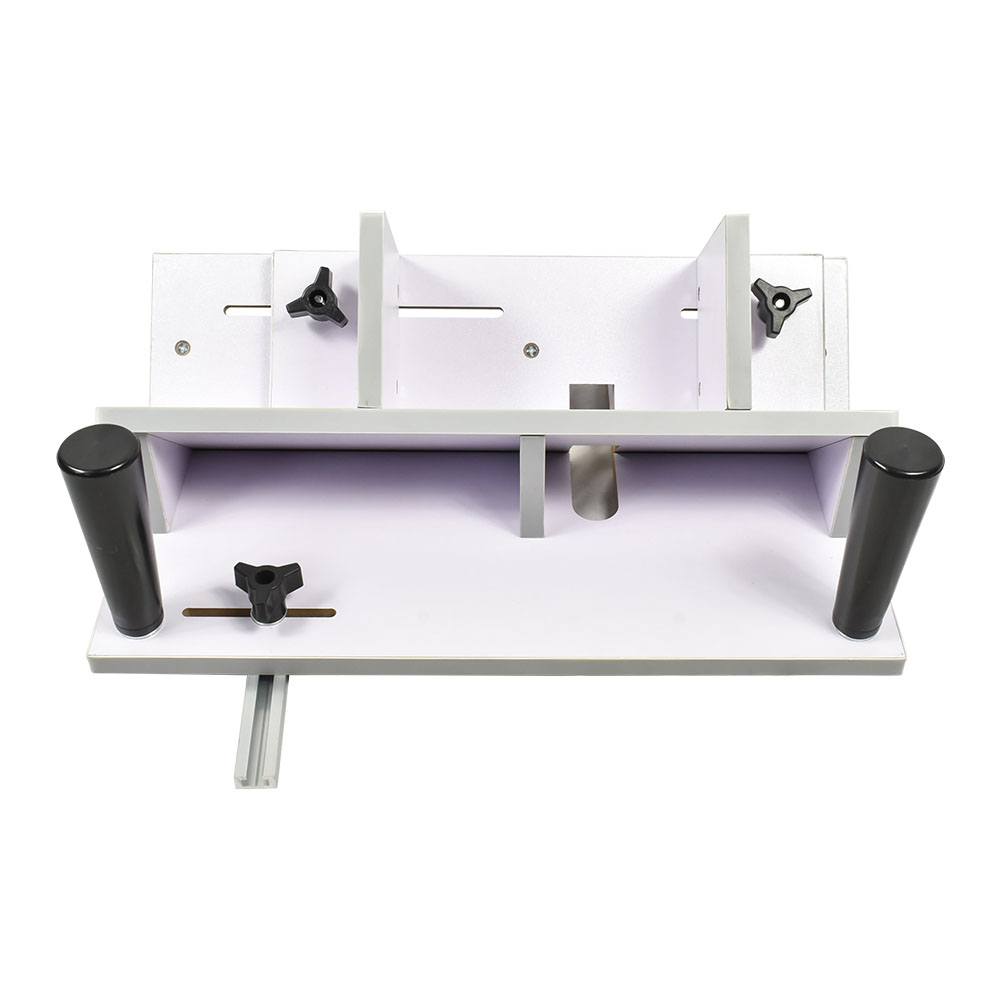

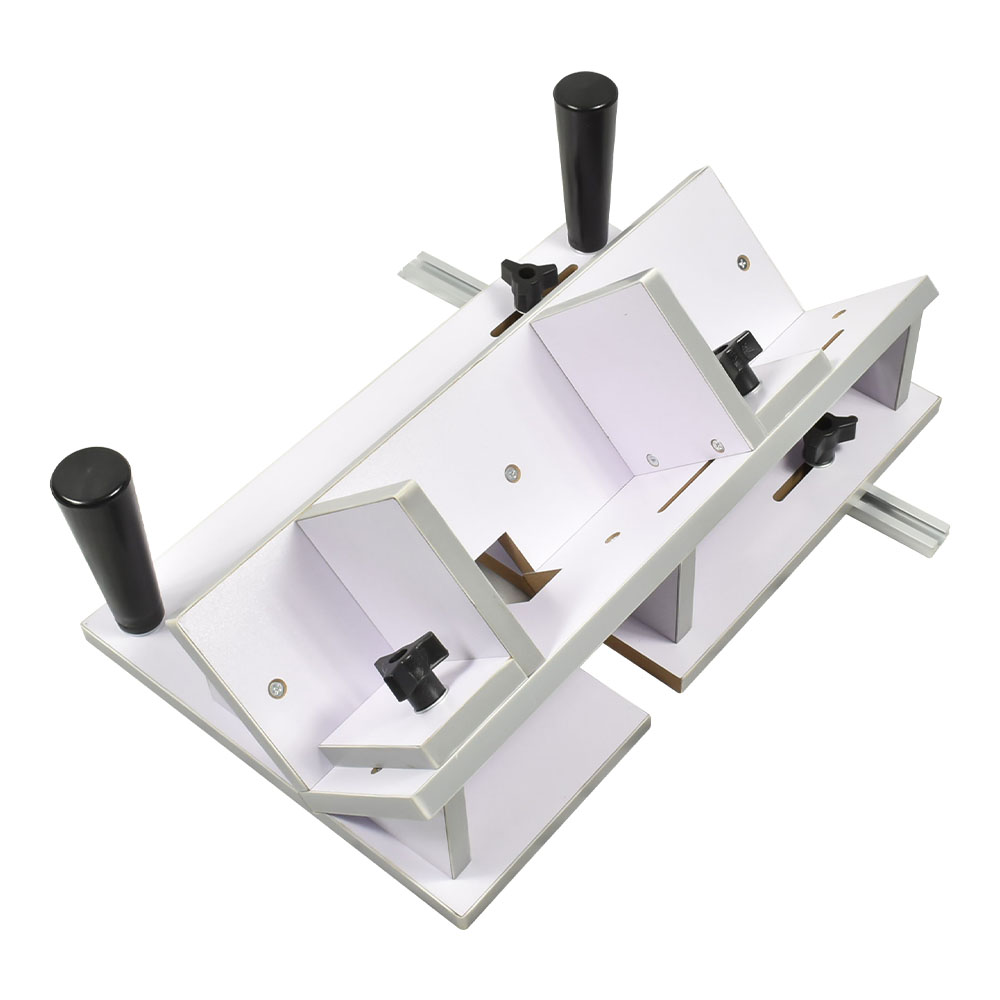

The MLCS 9537 Router Table Spline Jig is designed to cut precise spline slots across mitered corners to strengthen and enhance boxes, frames, and casework. The jig slides smoothly in a standard 3/4" miter slot using a 14-1/2" adjustable aluminum miter bar that maintains accurate tracking past the router bit. Two adjustable support fences hold the workpiece securely at 45 degrees while the rigid 1/2" melamine-coated MDF base provides stable support during routing. The adjustable fence opening accommodates workpieces up to 8-1/2" wide and expands to 15-1/2" when the fences are removed for larger assemblies. Compatible with straight, spiral, and dovetail router bits, this jig produces both traditional spline slots and locking dovetail profiles for increased joint strength and decorative contrast. Dual vertical handles keep hands safely positioned while providing controlled movement across the router table for consistent and repeatable results.

Features:

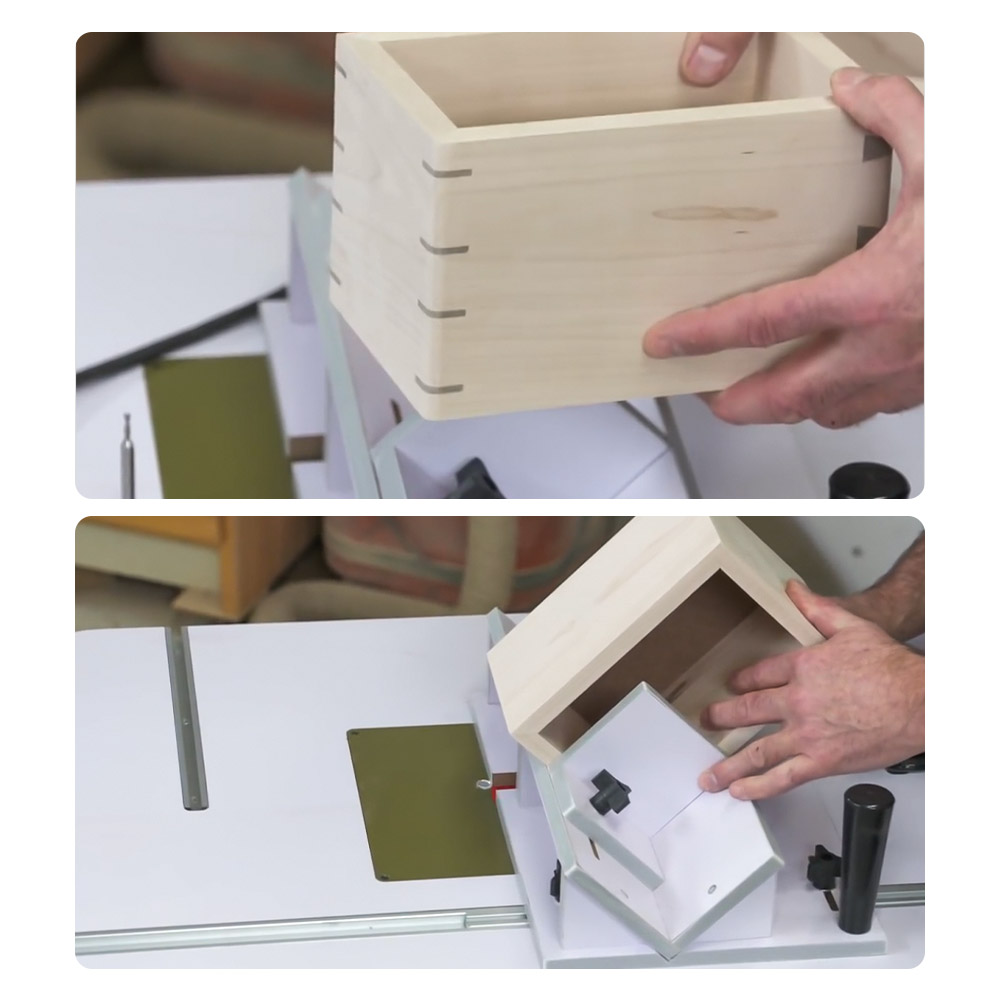

• Creates strong and decorative spline joints in mitered boxes, frames, and casework by cutting precise slots across glued corners.

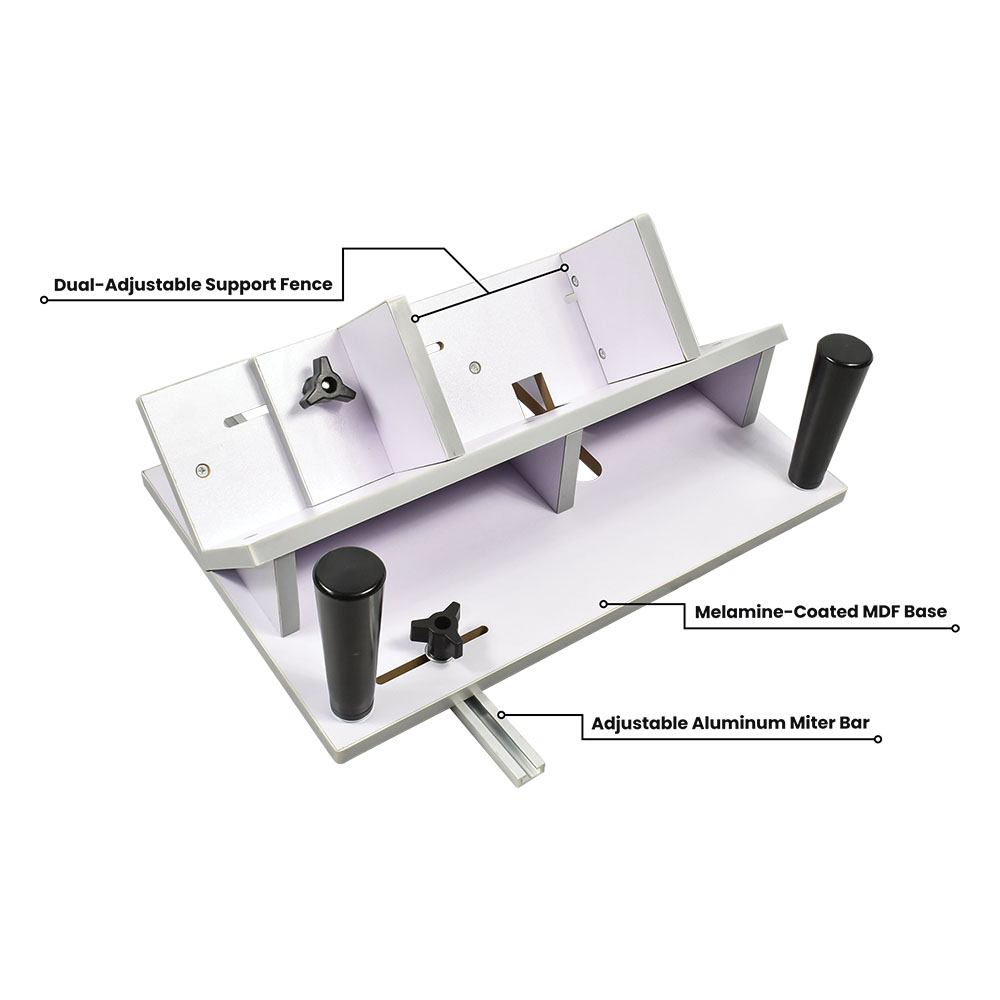

• Slides smoothly in standard 3/4" router table miter slots using a 14-1/2" adjustable aluminum miter bar for accurate tracking past the bit.
• Clamps projects securely between two adjustable support fences that hold the workpiece square and stable during routing.

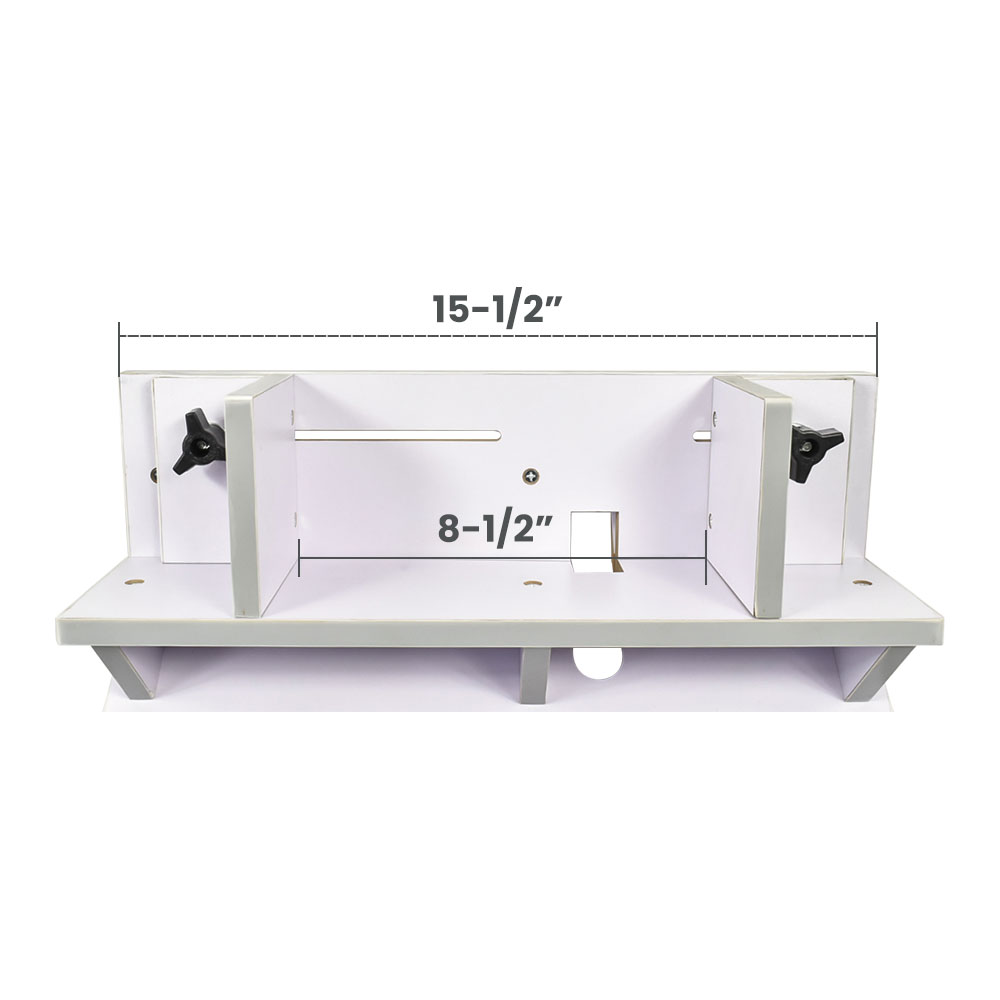

• Accommodates workpieces up to 8-1/2" wide between the adjustable support fences, and up to 15-1/2" wide when fences are removed for larger boxes.
• Prevents movement and maintains consistent alignment with a rigid 1/2" melamine-coated MDF base engineered for stability.
• Expands spline joint capability through compatibility with straight, spiral, and dovetail router bits that produce standard spline slots or locking dovetail joints for added strength.
• Keeps hands safely away from the cutter with dual vertical handles that provide controlled forward movement during operation.
