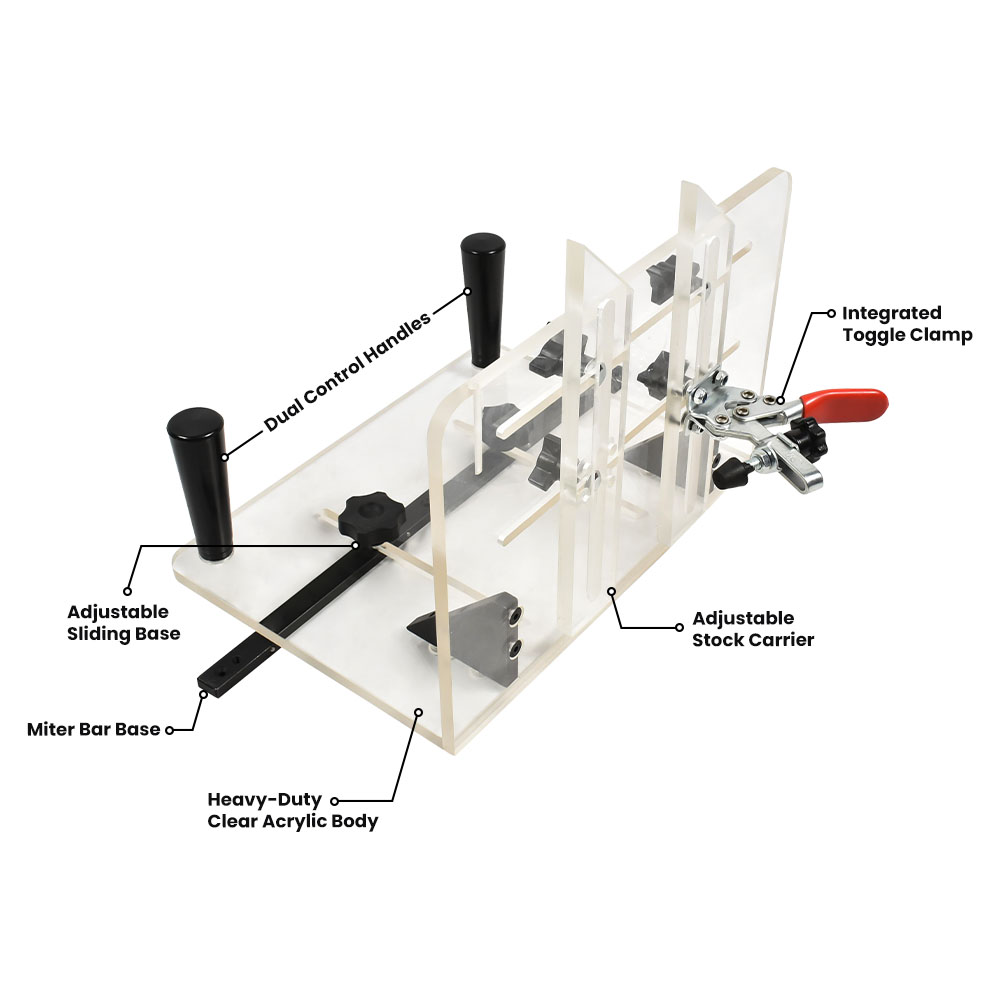

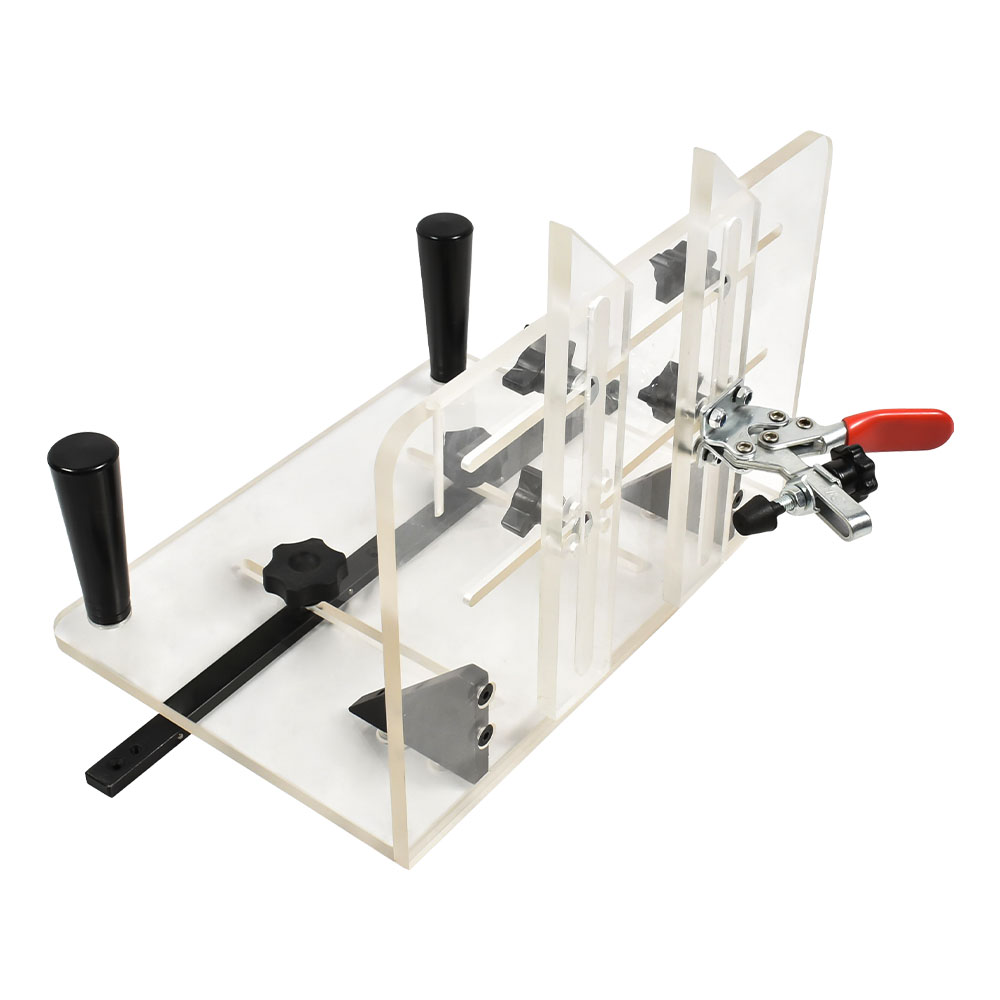

The MLCS 9545 Vertex Table Saw Tenon Jig is designed to cut accurate and repeatable tenons by holding workpieces securely in a controlled vertical position during cutting. The adjustable jig system supports both table saw and router table use by riding smoothly in a standard miter slot while allowing precise positioning relative to the blade or bit. Interchangeable angle blocks set the jig at 90°, 45°, 60°, or 75° so woodworkers can produce straight or angled tenons with confidence. A rigid 1/2" thick clear acrylic body provides strength and impact resistance while maintaining full visibility of the cutting area. The adjustable workpiece carrier accommodates stock up to 7-1/2" wide and 1-1/2" thick, and the integrated toggle clamp holds material firmly in place throughout the cut. With its stable miter bar base offering up to 7" of front-to-back adjustment, this jig delivers consistent results for joinery work that demands accuracy and control.

Features:

• Cuts accurate and repeatable tenons by holding workpieces securely in a vertical position for controlled passes on a table saw or router table.

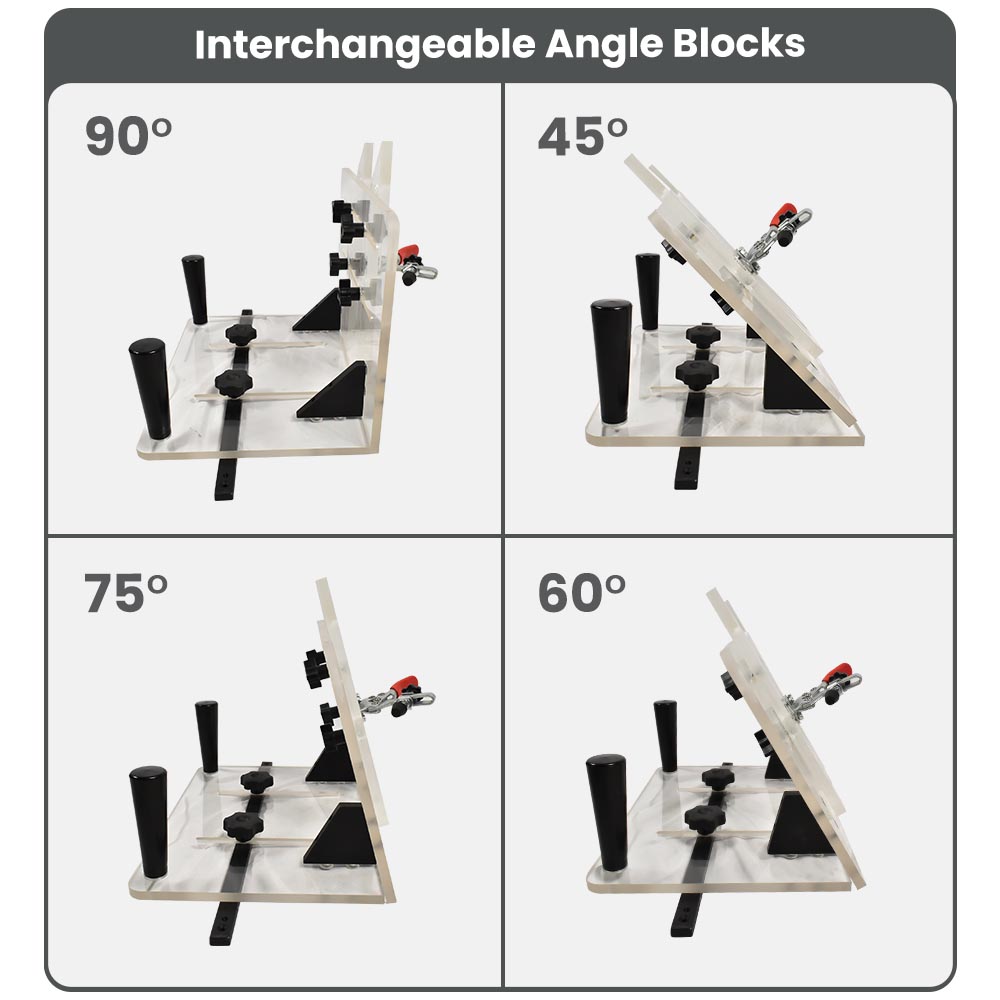

• Supports precise vertical and angled tenon cuts using interchangeable angle blocks that set the jig at 90°, 45°, 60°, or 75° depending on orientation.

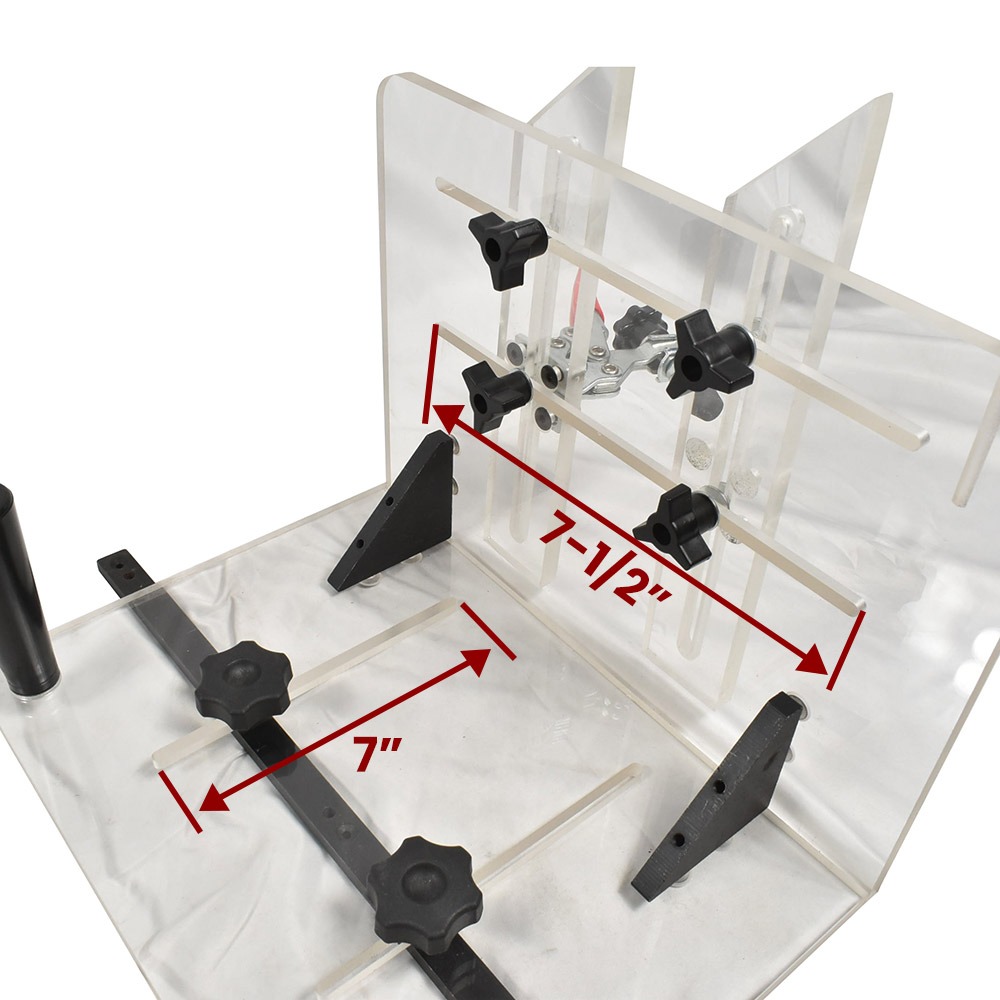

• Accommodates a wide range of stock sizes by adjusting the workpiece carrier to hold material up to 7-1/2" wide and up to 1-1/2" thick.
• Secures material during cutting with an integrated toggle clamp that applies consistent pressure to prevent movement without damaging the workpiece.
• Allows accurate positioning relative to the blade or bit using an adjustable miter bar base that provides up to 7" of front-to-back travel.

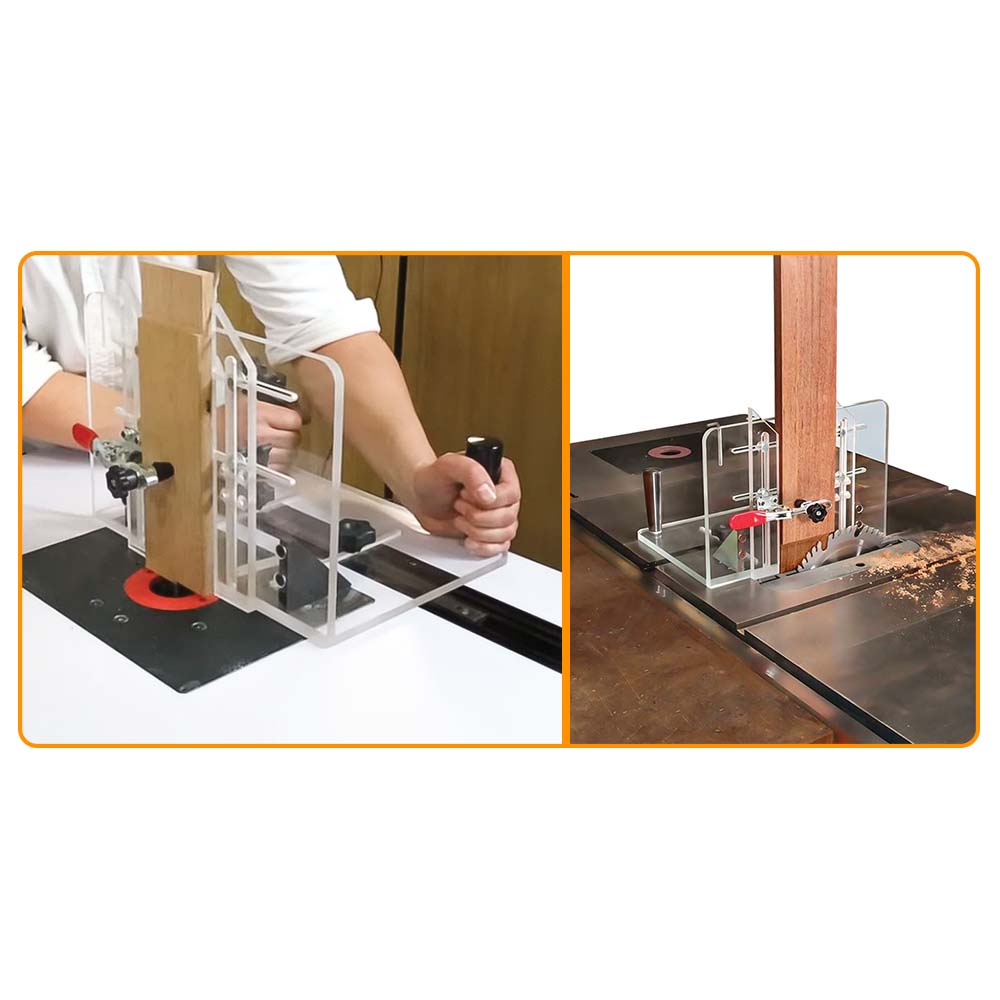

• Operates on both table saws and router tables by riding in a standard miter slot for straight and controlled movement during vertical cuts.
• Maintains visibility and stability during operation with a rigid 1/2" thick clear acrylic body that provides impact resistance while keeping the cutting area visible.
