Cast Iron Table Ext+Phenol.Plate

260.08 260.08
Share :

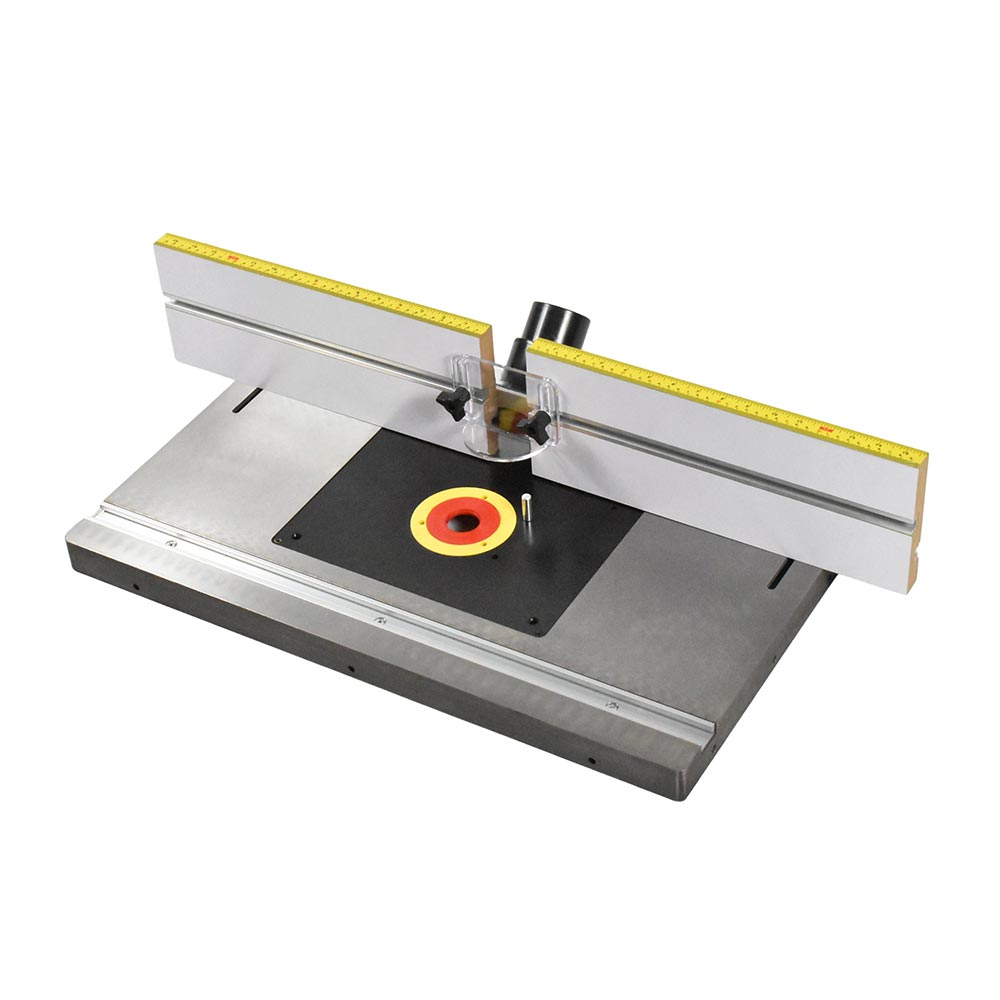

MLCS Cast Iron Router Table Extension - Phenolic Plate and Fence saves money and workspace by turning your table saw into a rock-solid router table.

Features:

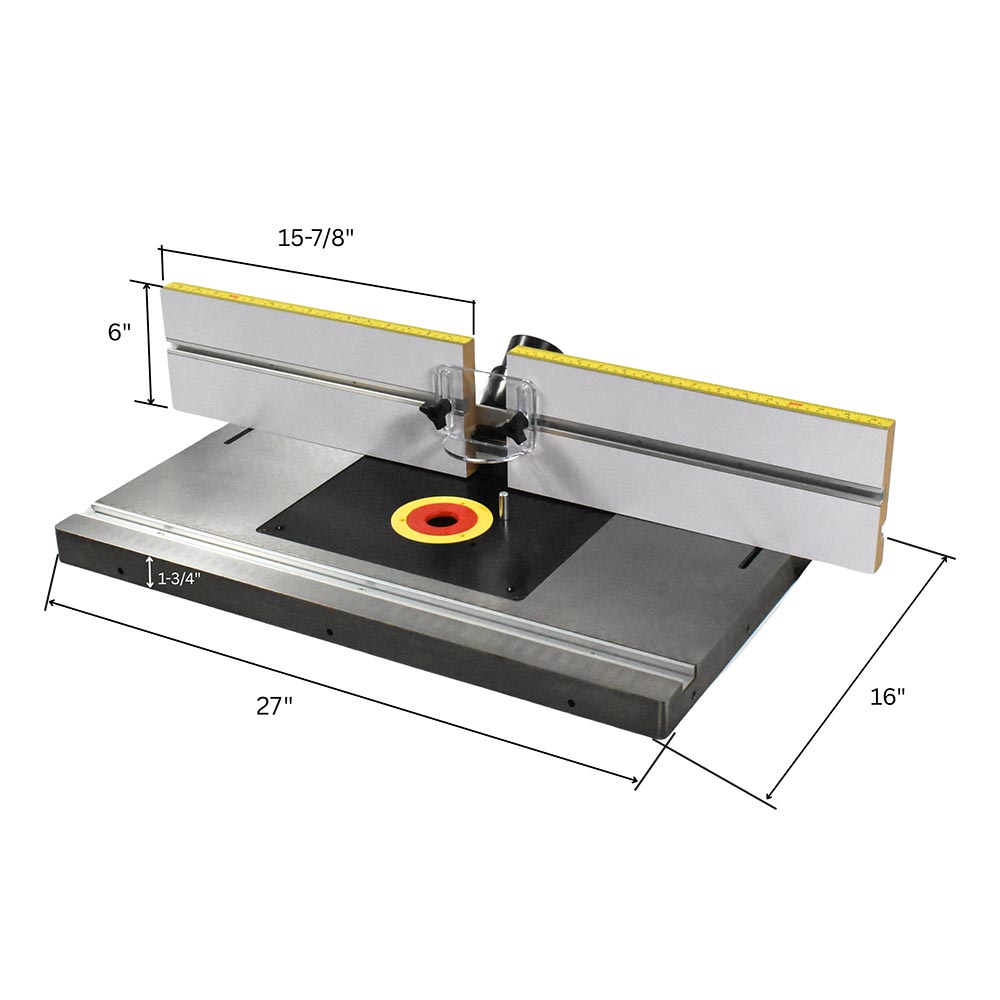

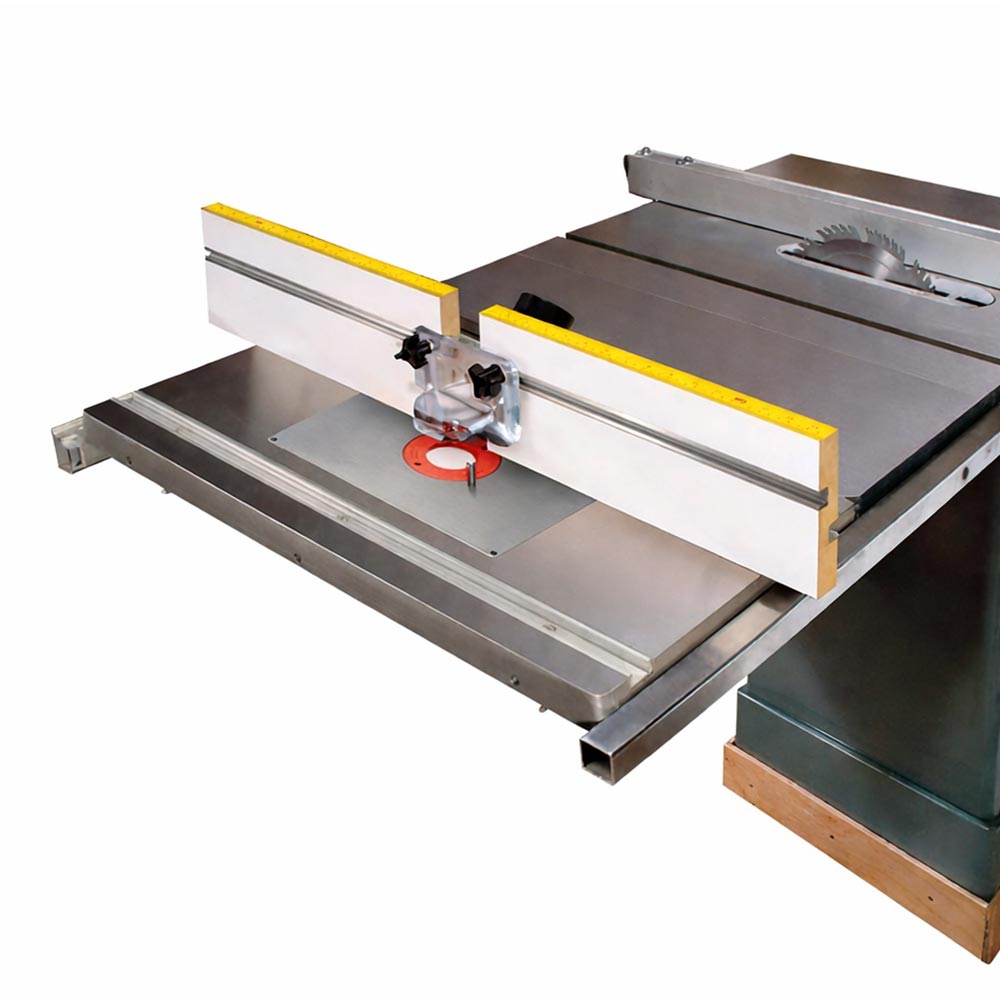

  • This sturdy 27" wide by 16" table top will mount between the rails of your table saw on either the right or left side between the rails.
  • Will work with all table saws where the rails are 27" apart.
  • Can also be mounted to a cabinet or open steel stand.

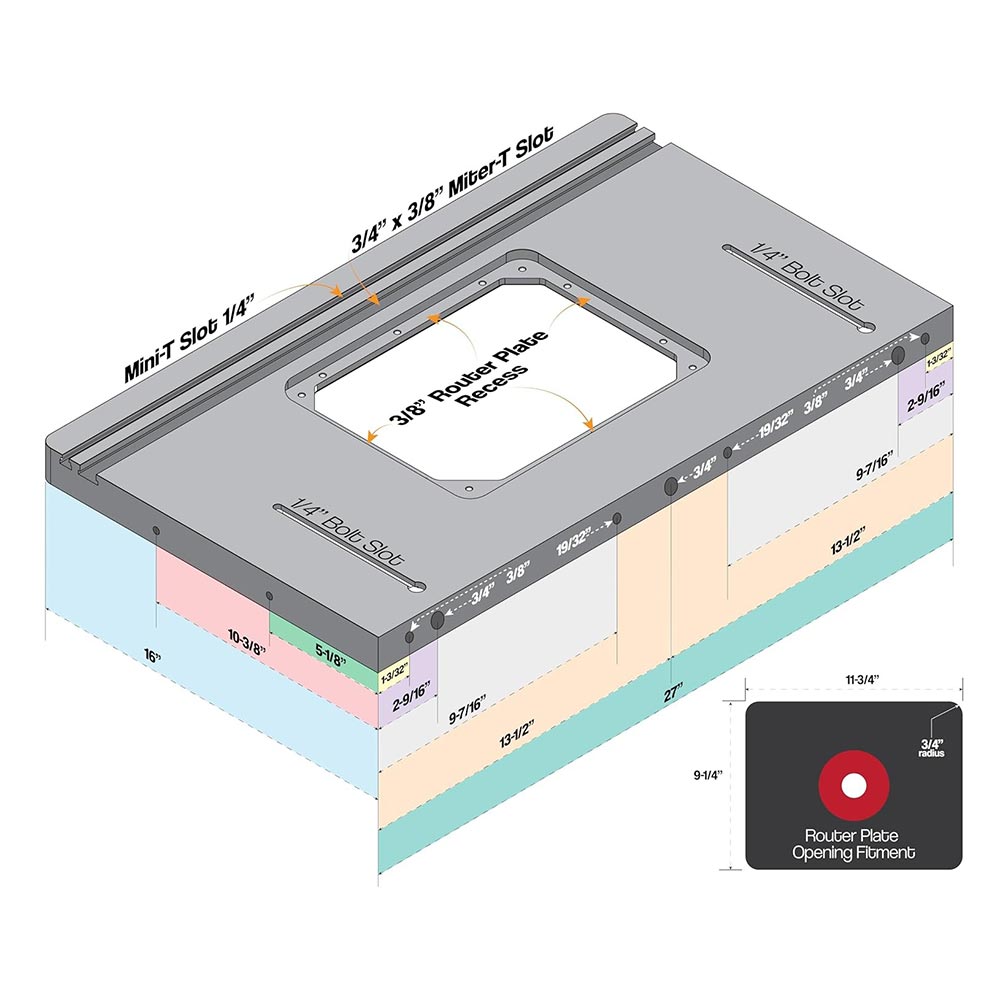

  • The router plate insert opening in the table top measures 9-1/32" x 12-3/32".

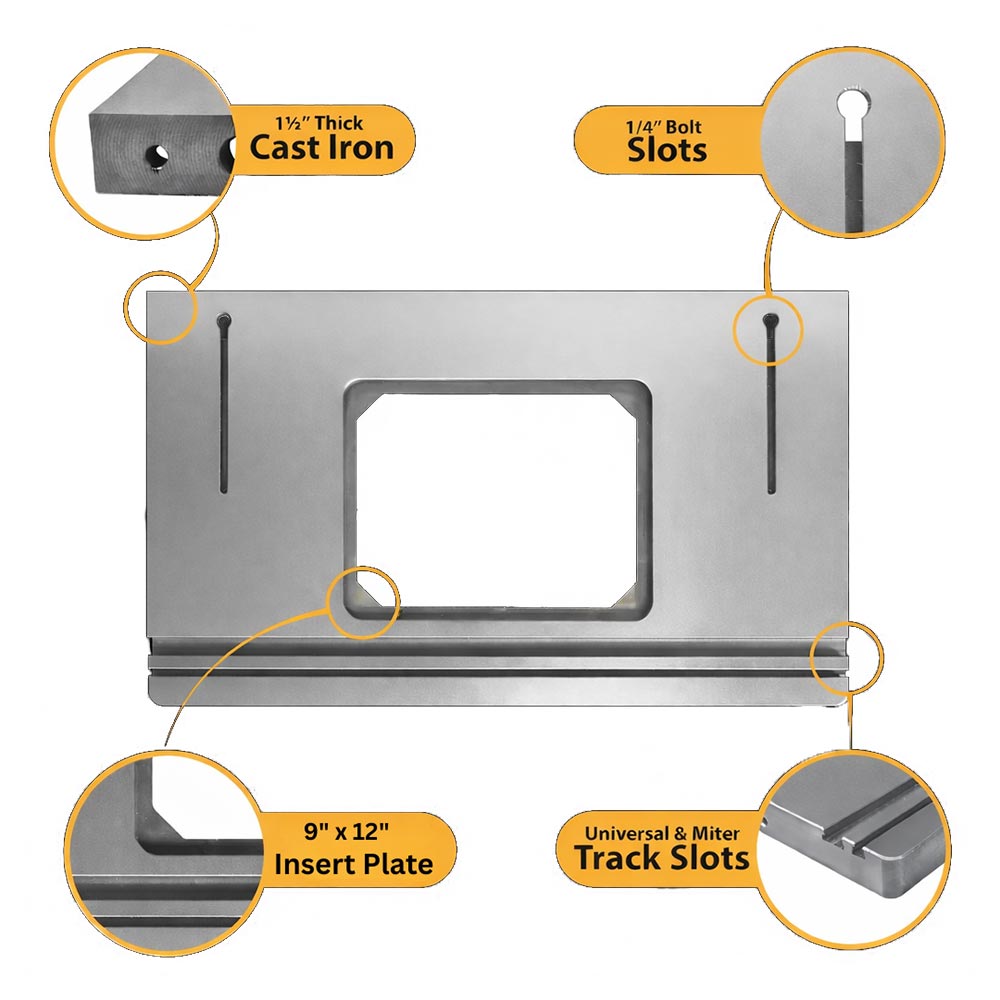

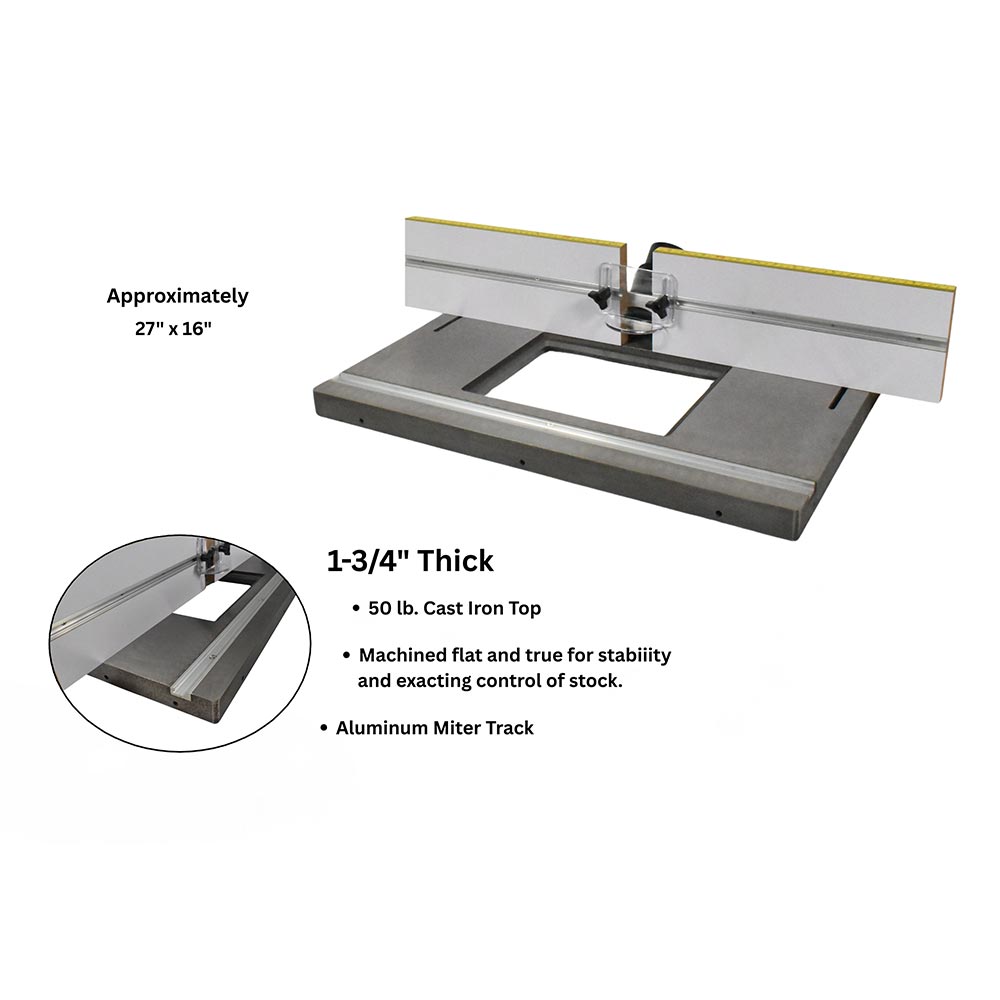

  • 27" x16" 50 lb. Cast Iron Top machined flat and true for stability and exacting control of stock.

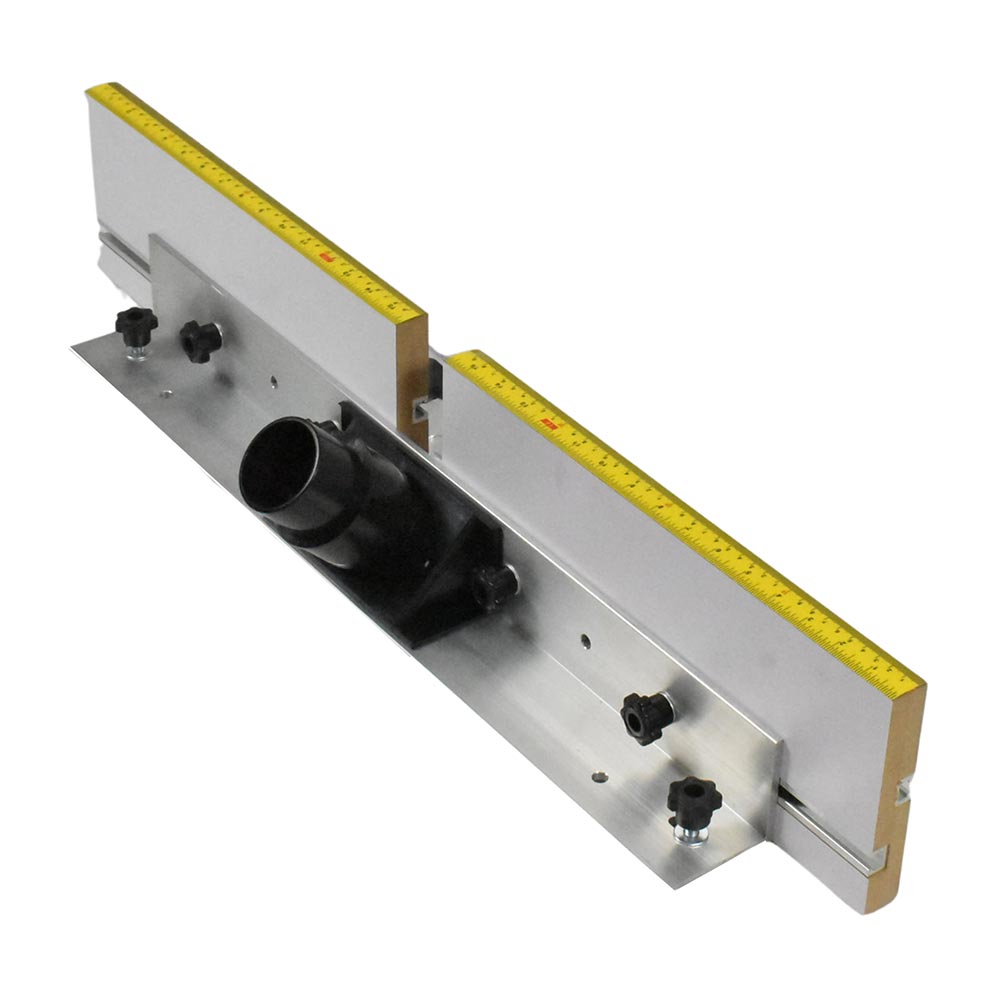

  • Extra Tall Split Fence allows edge routing for safer vertical routing.
  • Includes Measuring Tape that reads both right to left and left to right for easy measurements.
  • Aluminum Miter Track in the table and T-Track in the fence allows the use of jigs, a miter gauge, and feather boards.
  • Includes 3/8" thick Phenolic Plate with two insert rings and pin.
  • 2-1/4" Dust Port for standard Shop Vac hoses.
  • Durable plastic Safety Guard helps protect eyes.
  • Fence stores on 2 hooks under the router table when not in use.
  • PowerLift Pro® Compatible
  • May require additional mounting hardware (not included) to attach to your saw rails. Insert plate color may vary.

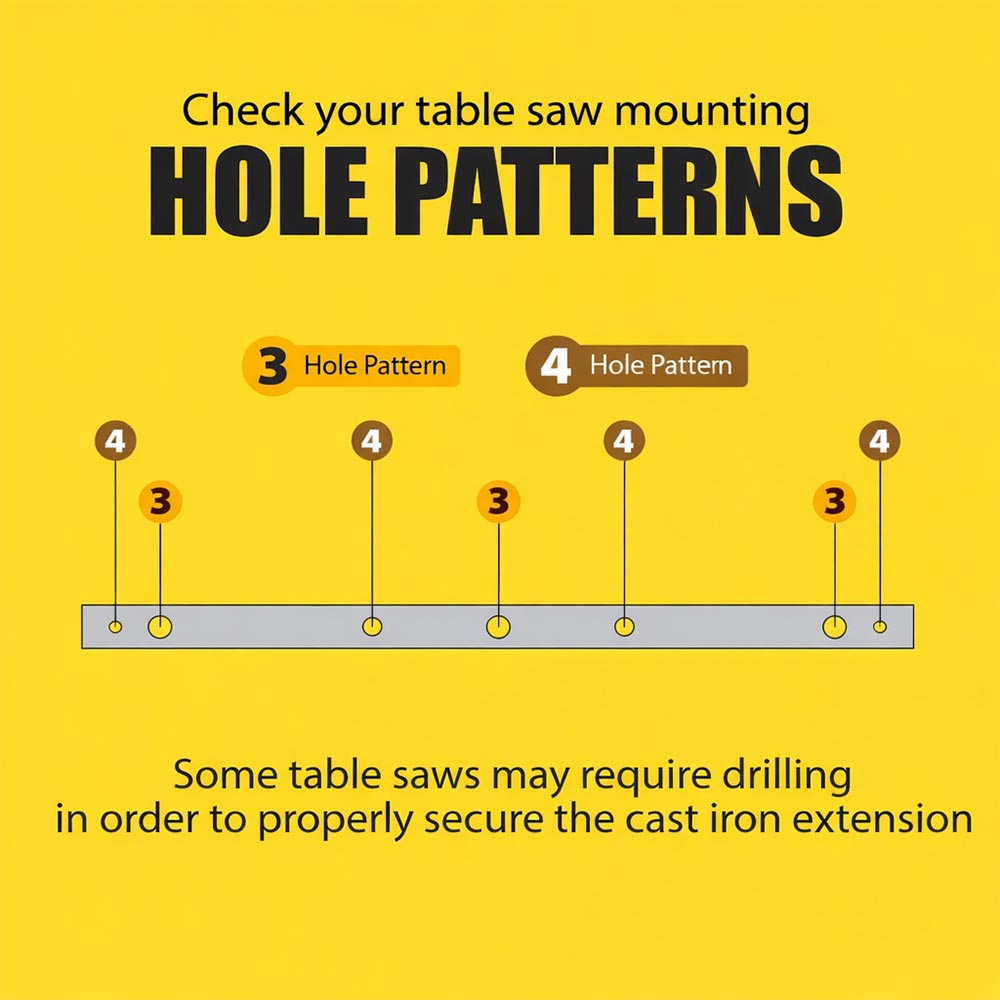

  • 4 Hole Alignment: First hole is 1-1/8" from end, every other hole is 8-1/4". Holes are centered on the 1-1/2" thick top.
  • 3 Hole Alignment: Holes are 7/8" diameter. First hole is 2-3/4" from end, center hole is in the middle at 13-1/2".
