MLCS Horizontal Router Table routs wide stock flat with tall router bits in the horizontal position. Quickly and easily make mortise and tenon joinery, raised panels with vertical raised panel bits, moldings and picture frames. Don't stand stock on edge! Much safer and more accurate than standing wide stock on edge. No need for tall auxiliary fences, multiple featherboards or jigs.

Features:

• Features micro adjustable bit height adjustments. 1/16" per turn allows for very precise adjustments: (1/4 turn = 1/64", 1/2 turn = 1/32", 3/4 turn = 3/64").
• The table is 24" wide x 20" deep x 25" height with a sturdy 3/4" thick MDF core, durable melamine surface and polyethylene plastic edges. Now features a full extruded aluminum support structure.
• 3/4" thick MDF core with melamine surface extension fences, on both sides of the router plate give maximum support to long stock.
• The 3/8" thick, 11-3/4" x 11-1/2" router plate is held in routing position by sturdy aluminum extrusions, along with two locking knobs which safely secure the sliding router plate in position.
• Miter T-track fits a standard 3/8" x 3/4" miter bar or safety bar.

OPTIONAL ADD-ON FEATURES:

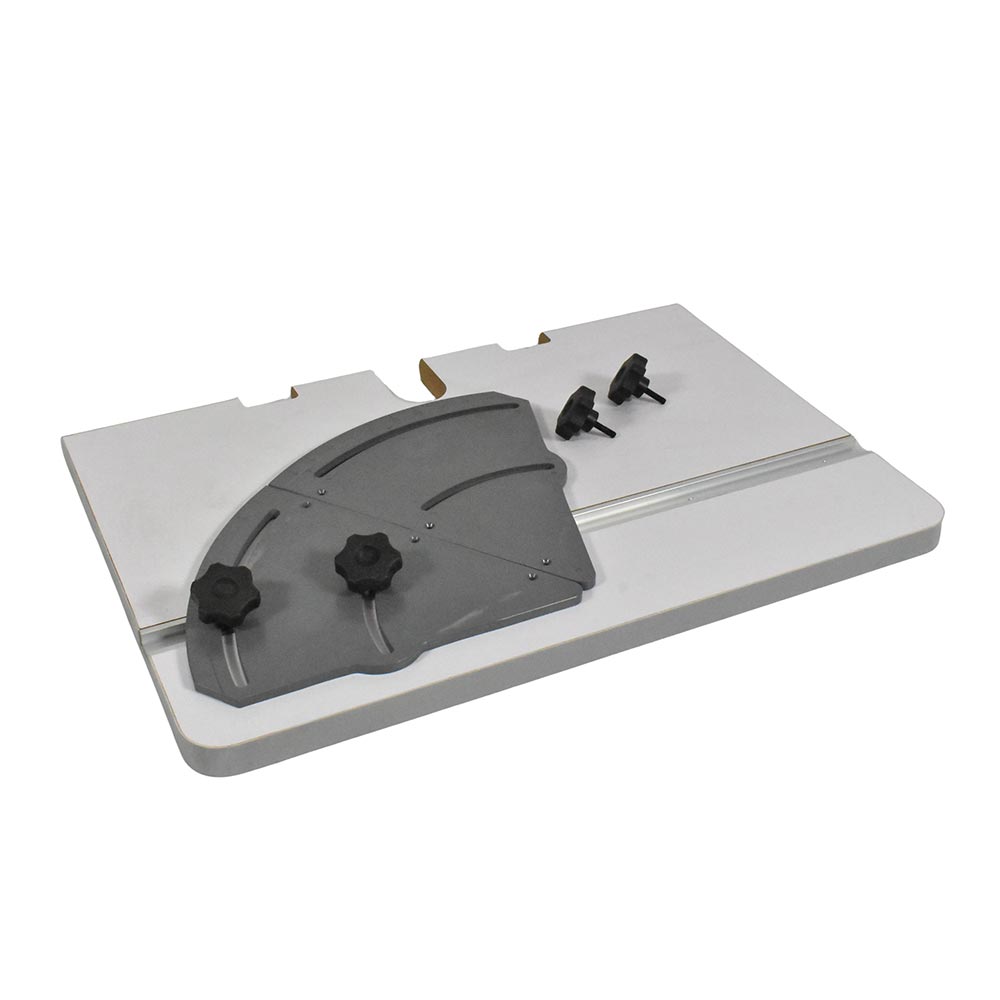

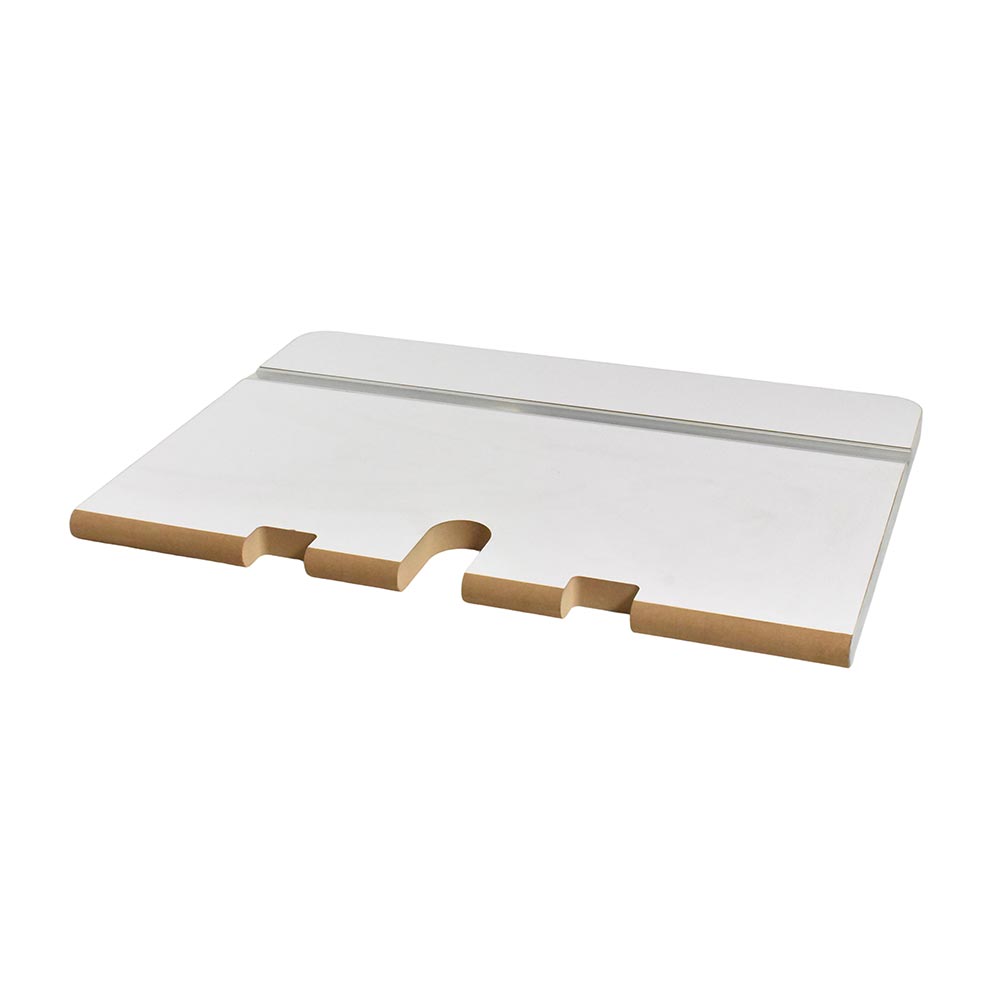

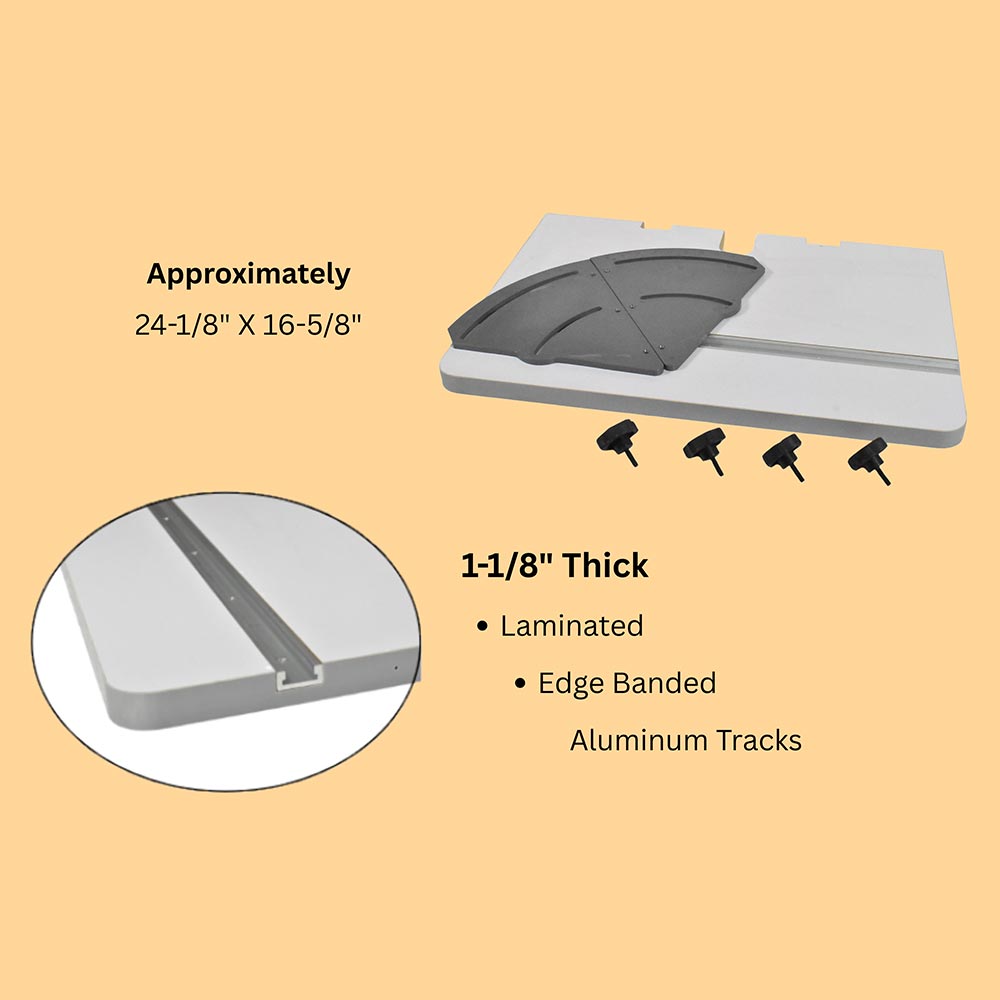

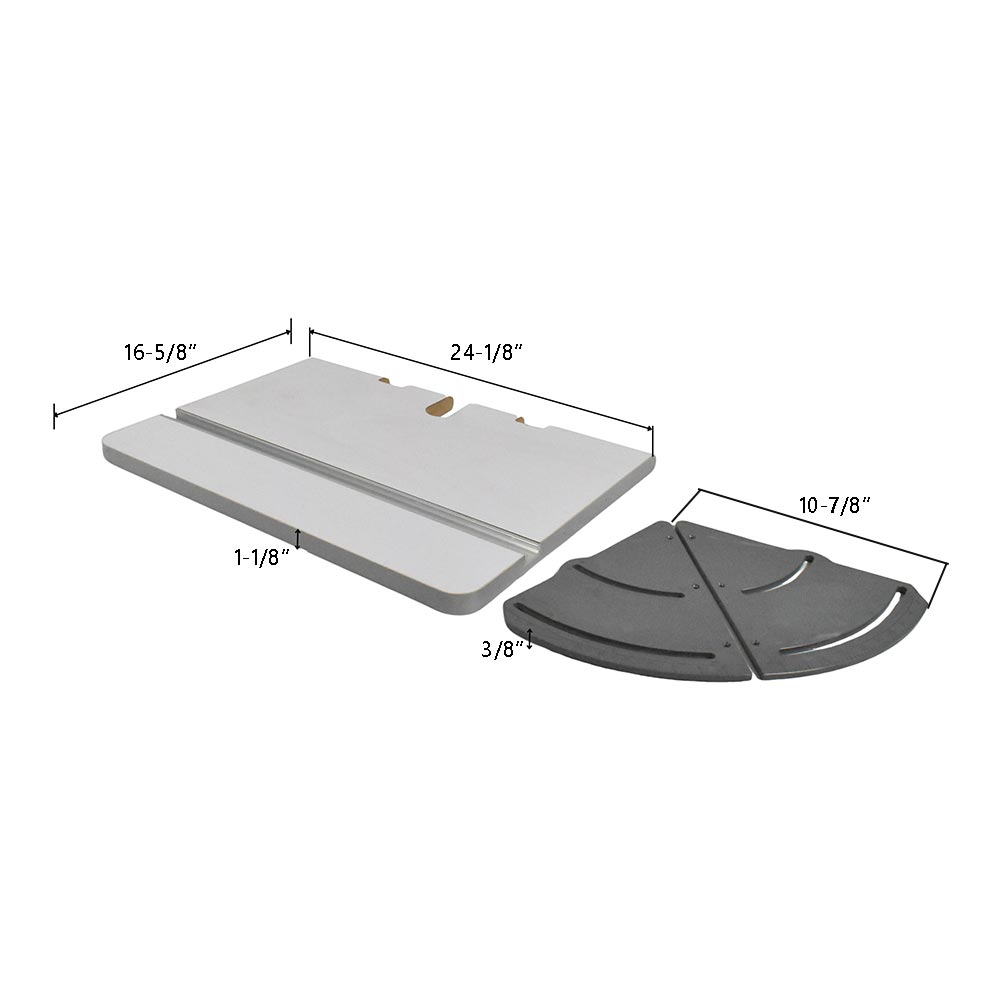

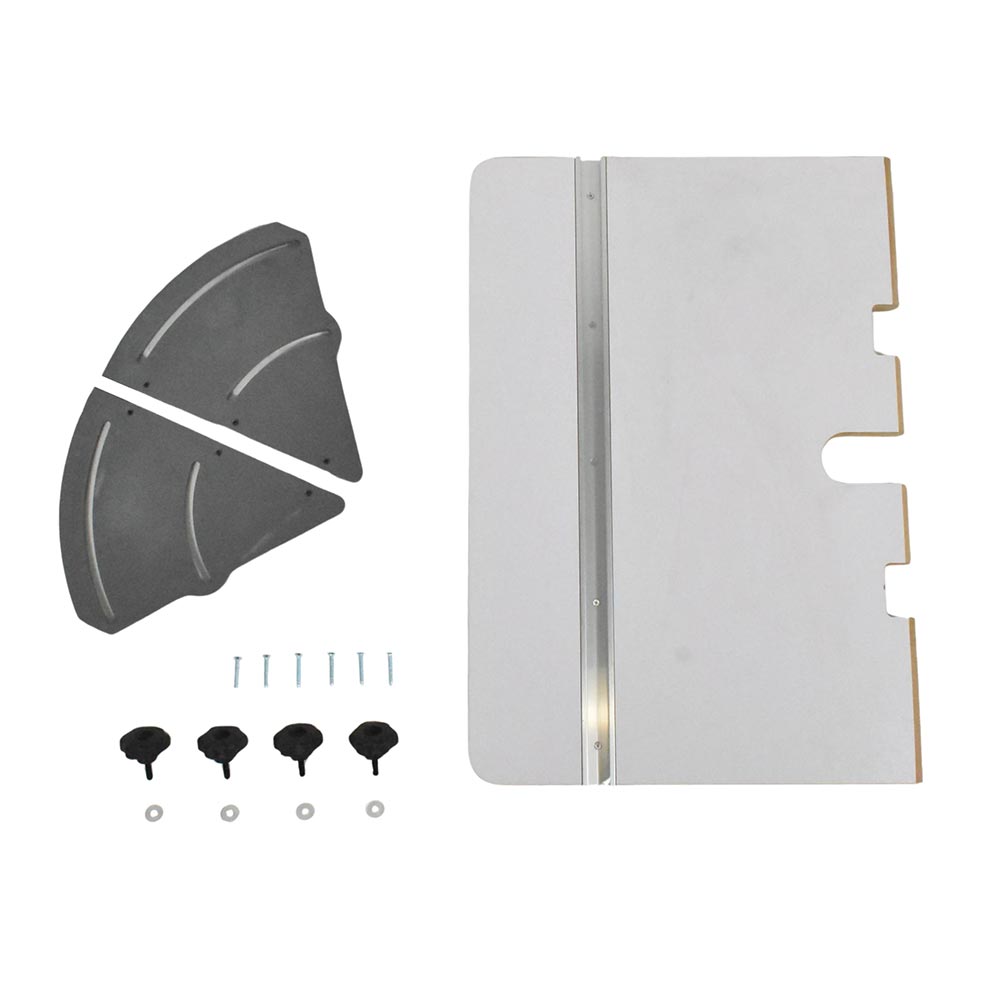

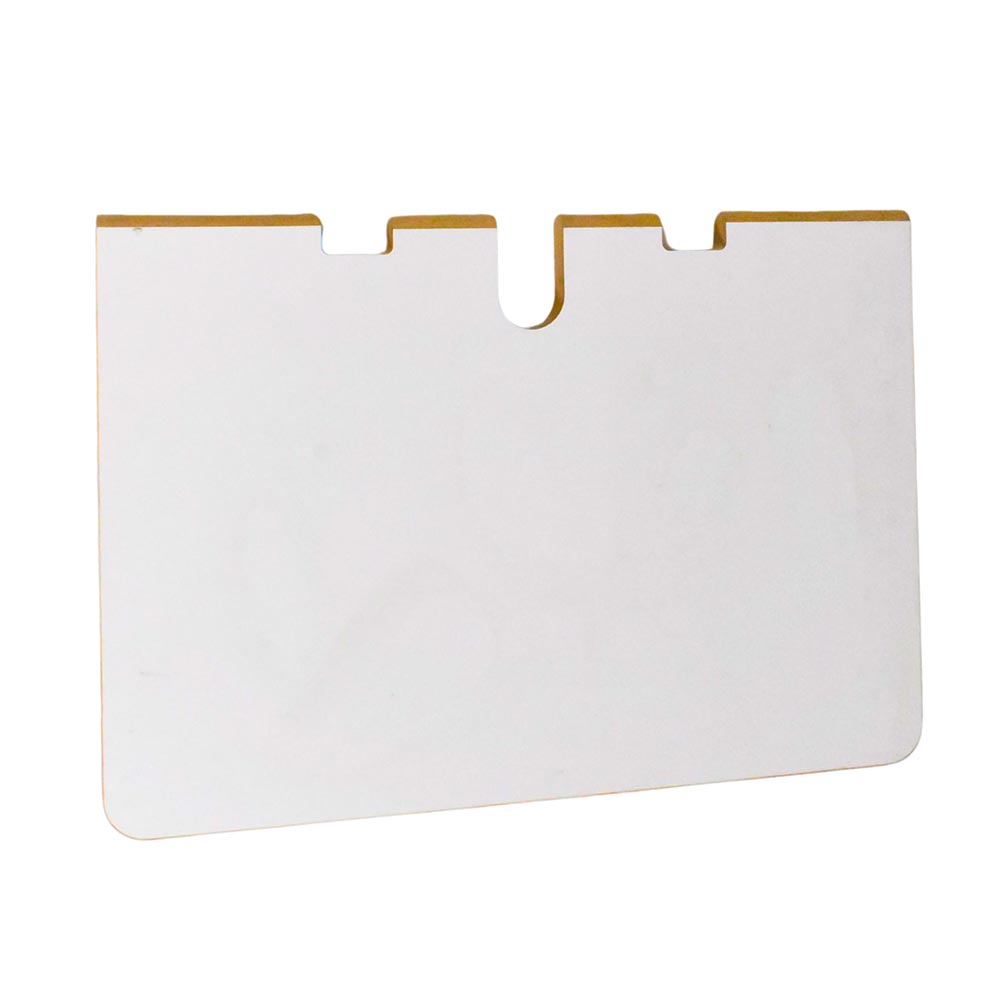

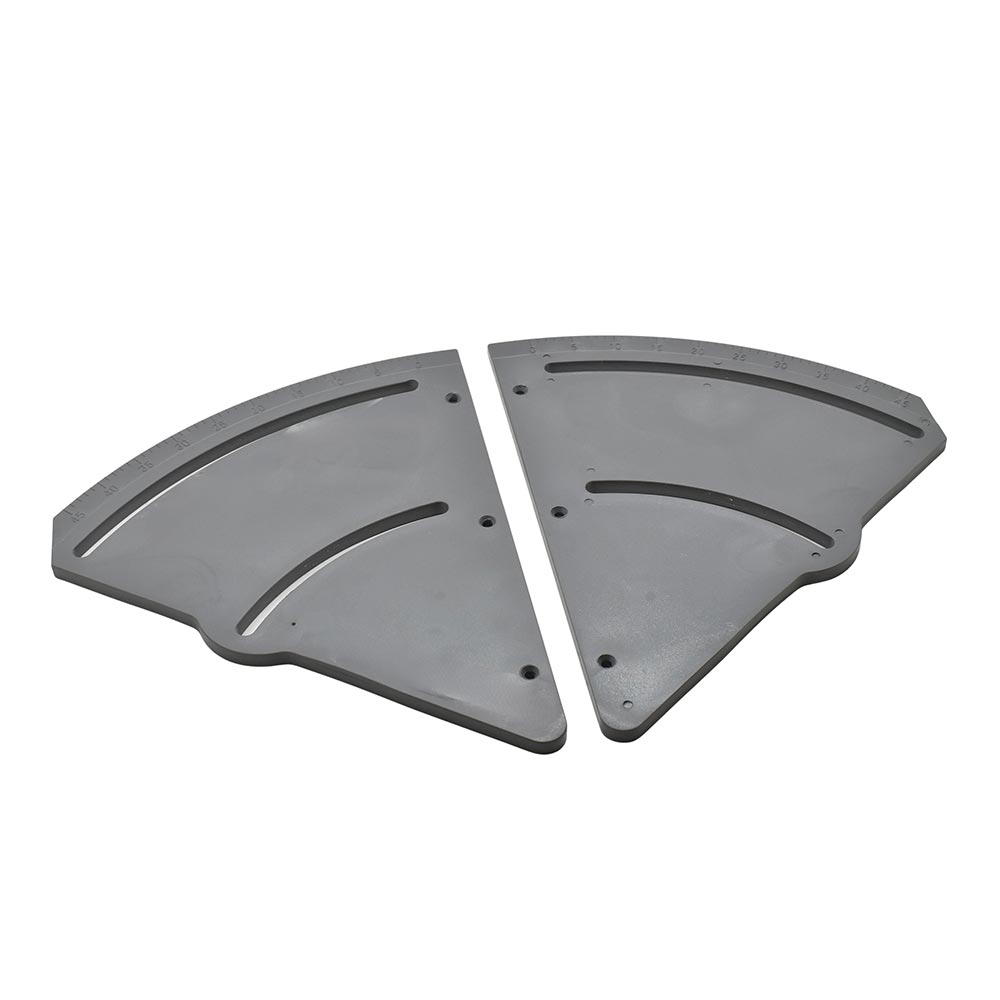

Tilt Top #9764 Features

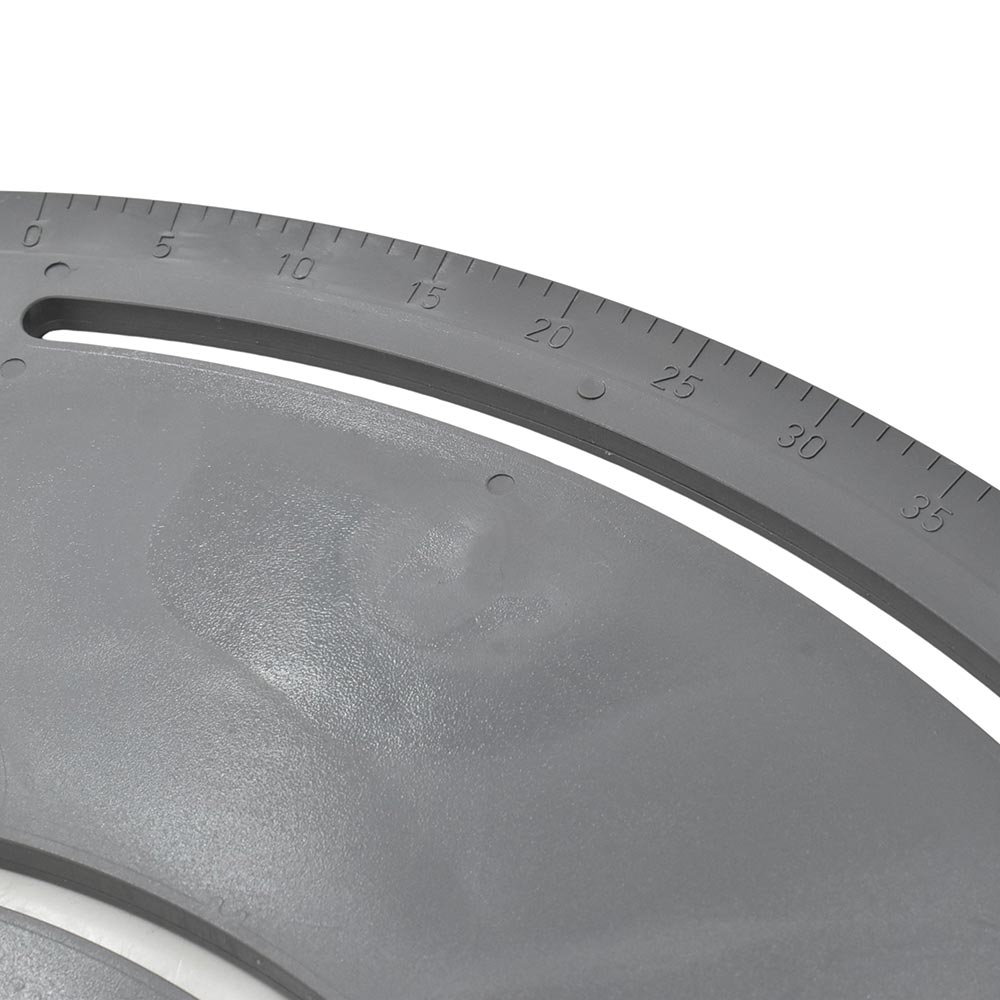

• Tilt Top tilts up to 45 degree, allowing you to create offset angles that can't be cut on a conventional 90 degree table surface.
• Creates custom chamfers using a straight router bit.
• Cut spline joints on multi-sided objects.
• Produce tapered moldings using crown molding or chair rail bits
