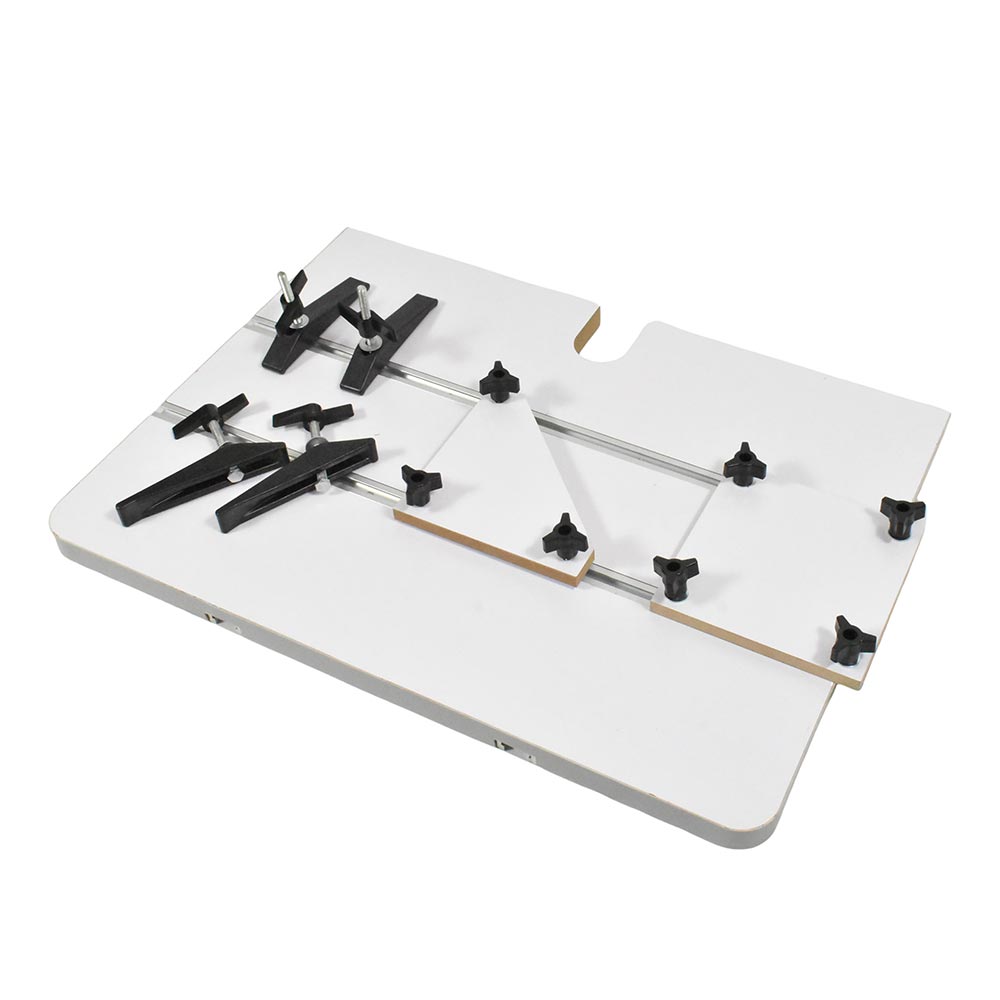

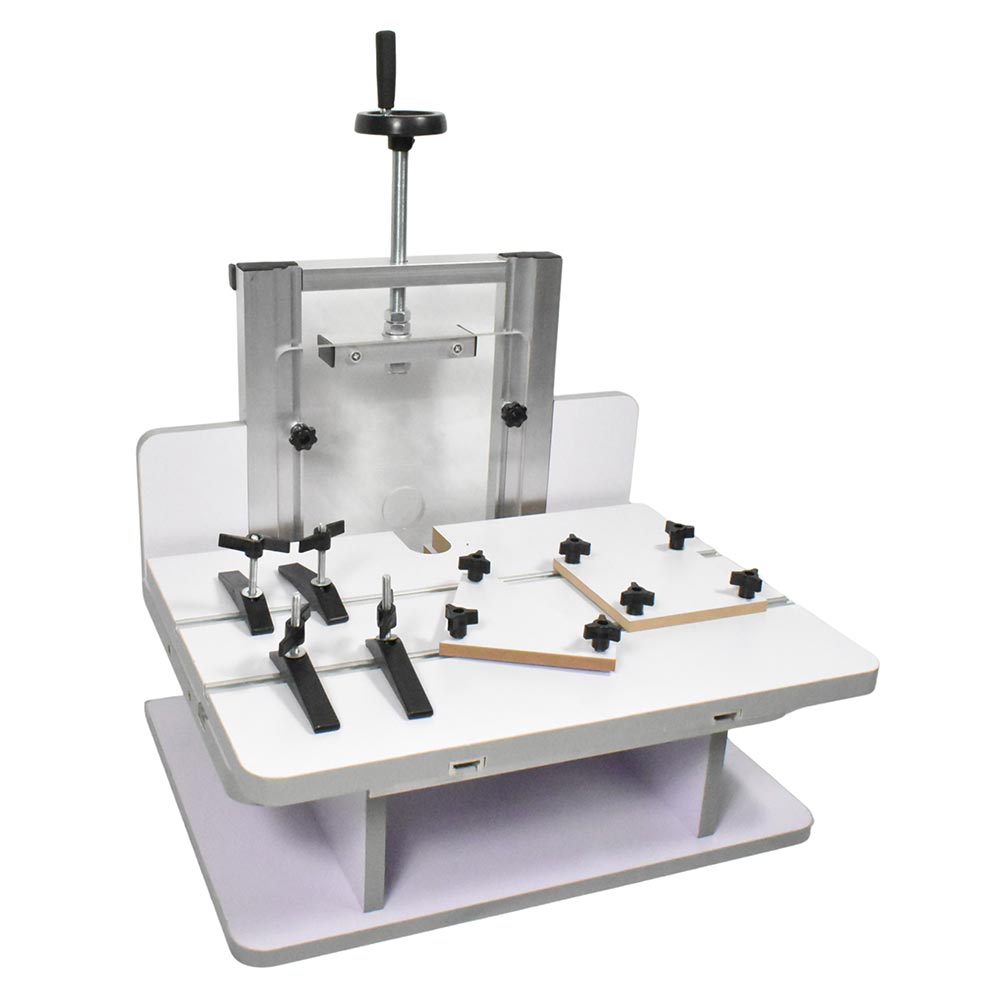

The MLCS 9766 Mortising Table is designed to convert the MLCS 9767 Horizontal Router Table into a controlled mortising and tenoning system for accurate joinery. The sliding platform provides full X and Y axis movement across the work area so mortises and tenons can be positioned precisely during routing. The table mounts into the 9767 T-tracks using a perpendicular aluminum support frame, and the mortising platform slides within vertical T-tracks beneath it to allow smooth two direction travel. Depth of cut is controlled by moving the table forward or backward toward the router plate while four adjustable hold down clamps secure the workpiece firmly in place. Included 90 degree and 45 degree stop locks allow accurate alignment for straight and angled mortising operations. Built with a 3/4 inch thick MDF sliding table reinforced by aluminum T-tracks, this accessory provides stable and repeatable performance for edge mortising, end mortising, and precision tenon work.

Features:

• Converts the MLCS 9767 Horizontal Router Table into a controlled mortising and tenoning system for accurate joinery.
• Provides full X and Y axis movement across the mounted work area by sliding smoothly along aluminum T-tracks.
• Allows controlled mortise depth by moving the table forward or backward toward the router plate to position the workpiece accurately relative to the cutter.

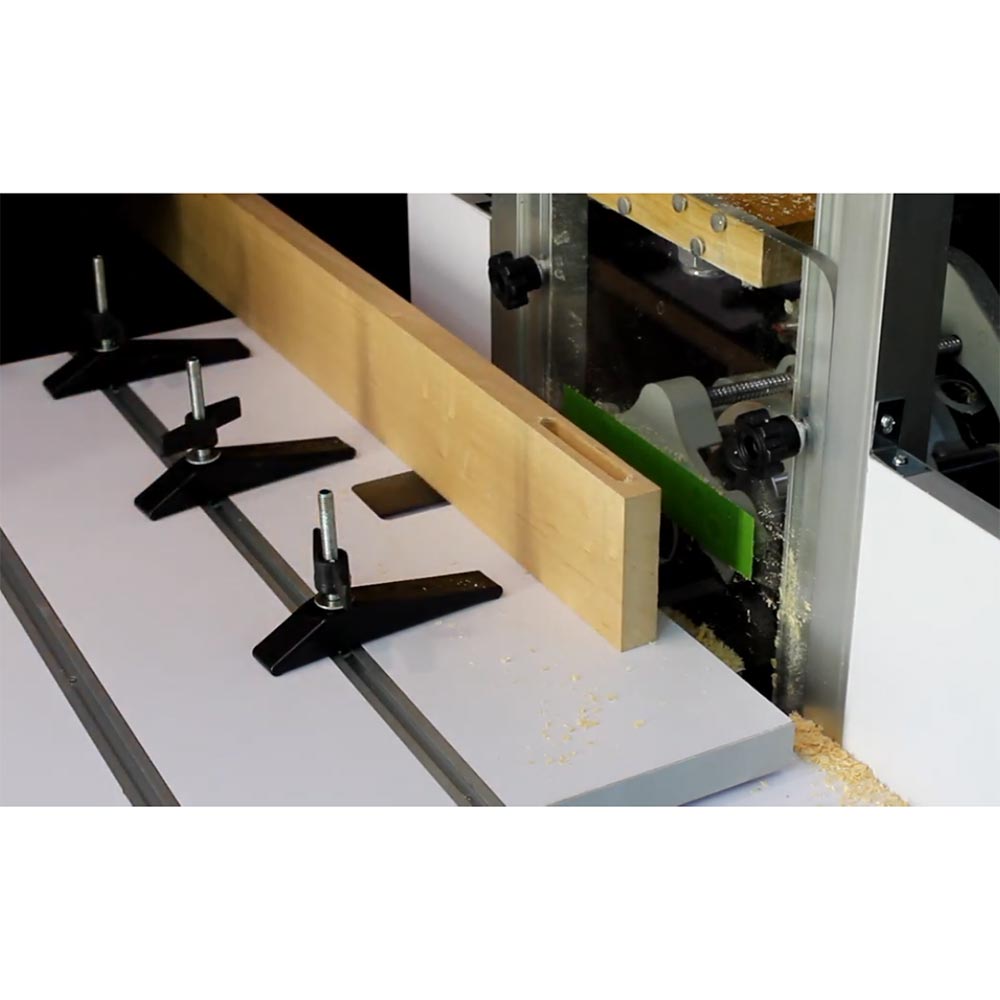

• Ideal for edge mortising, end mortising, centered mortises, offset mortises, straight tenons, and angled joinery operations.

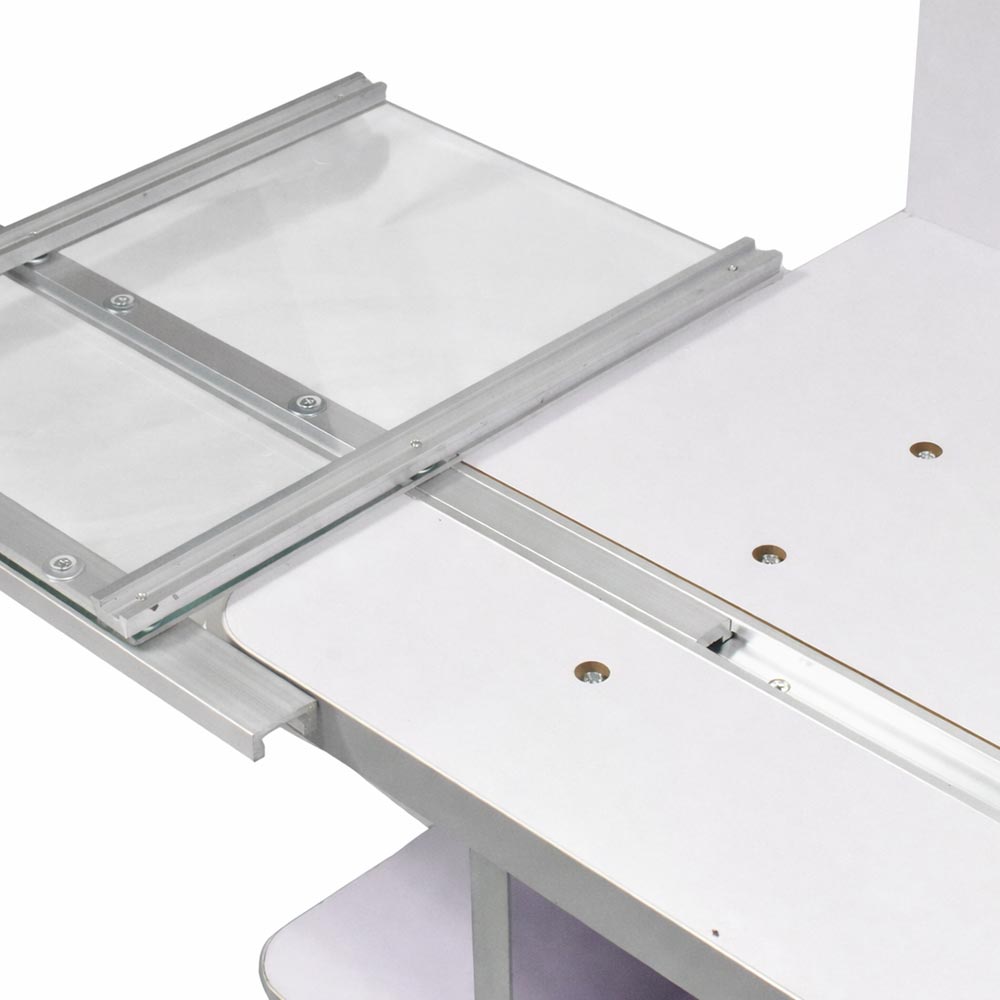

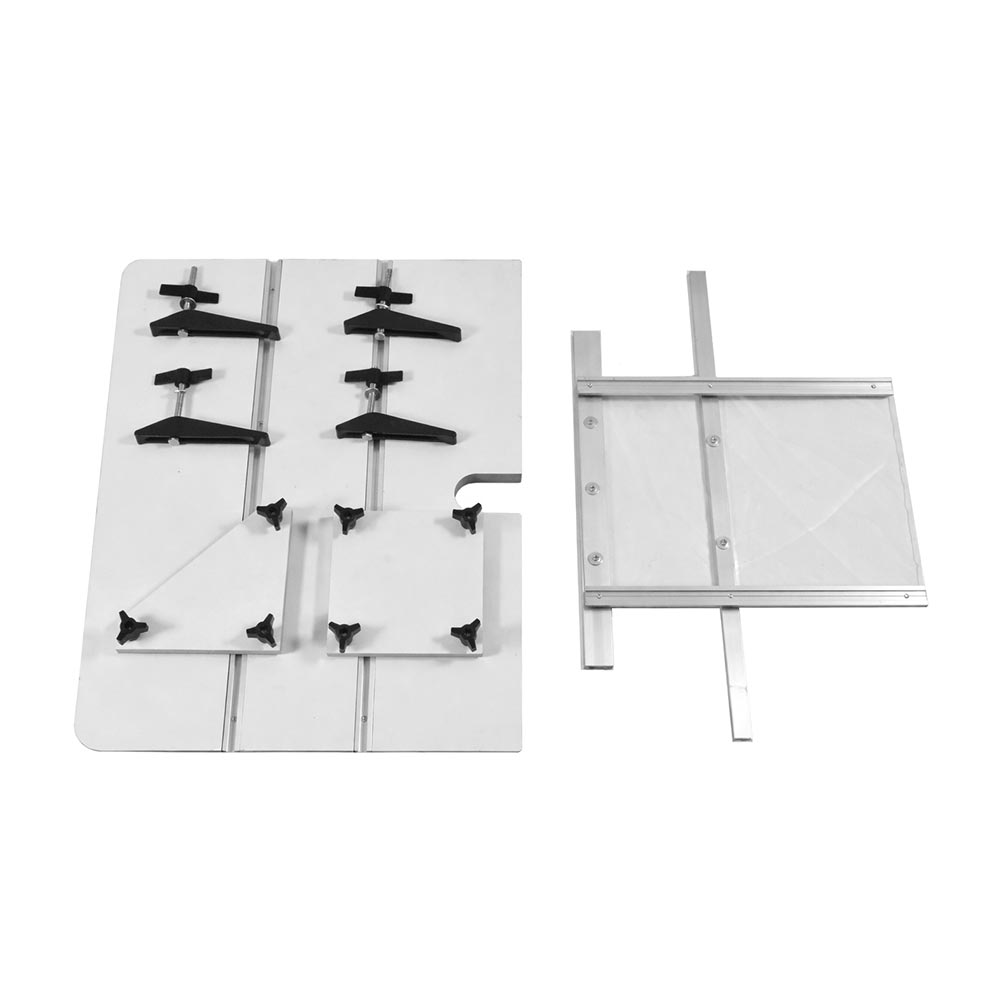

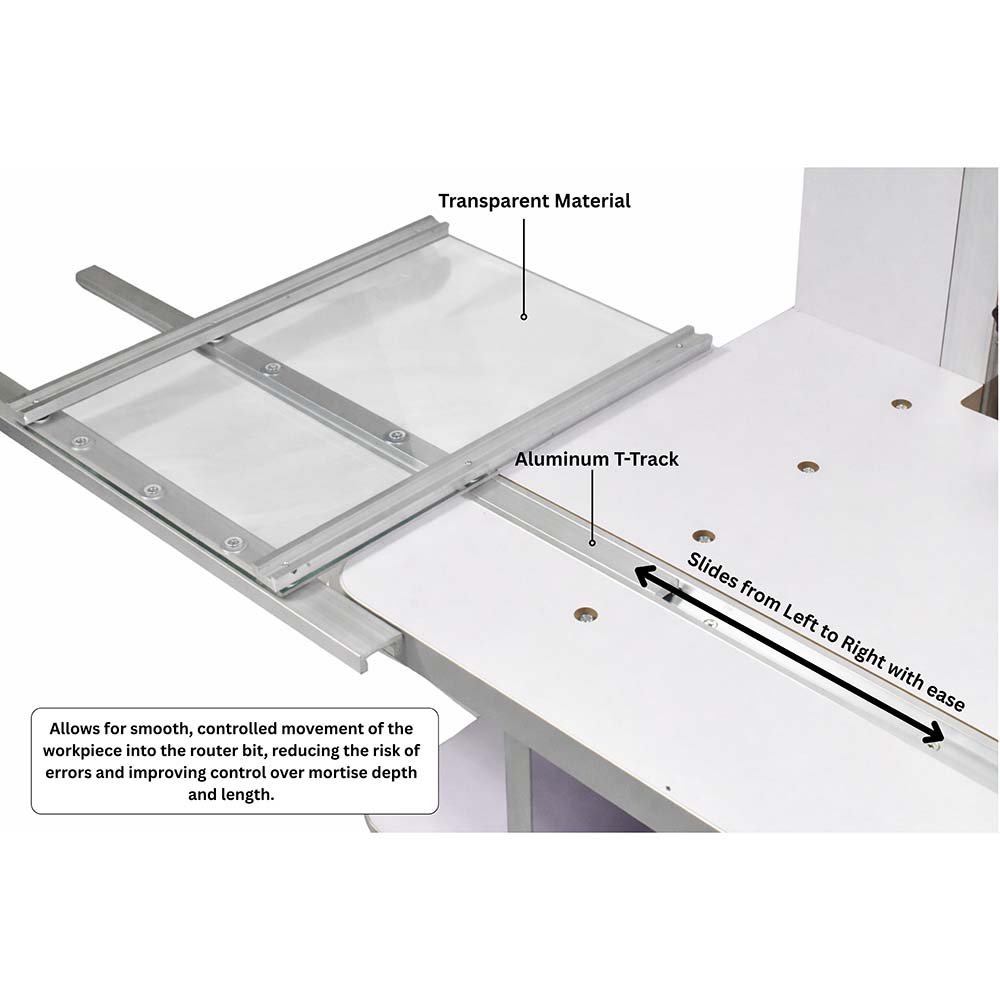

• Installs using a perpendicular aluminum T-track support frame that slides into the 9767-Horizontal Router Table T-tracks, while the mortising table mounts into vertical T-tracks beneath it for smooth dual axis travel.

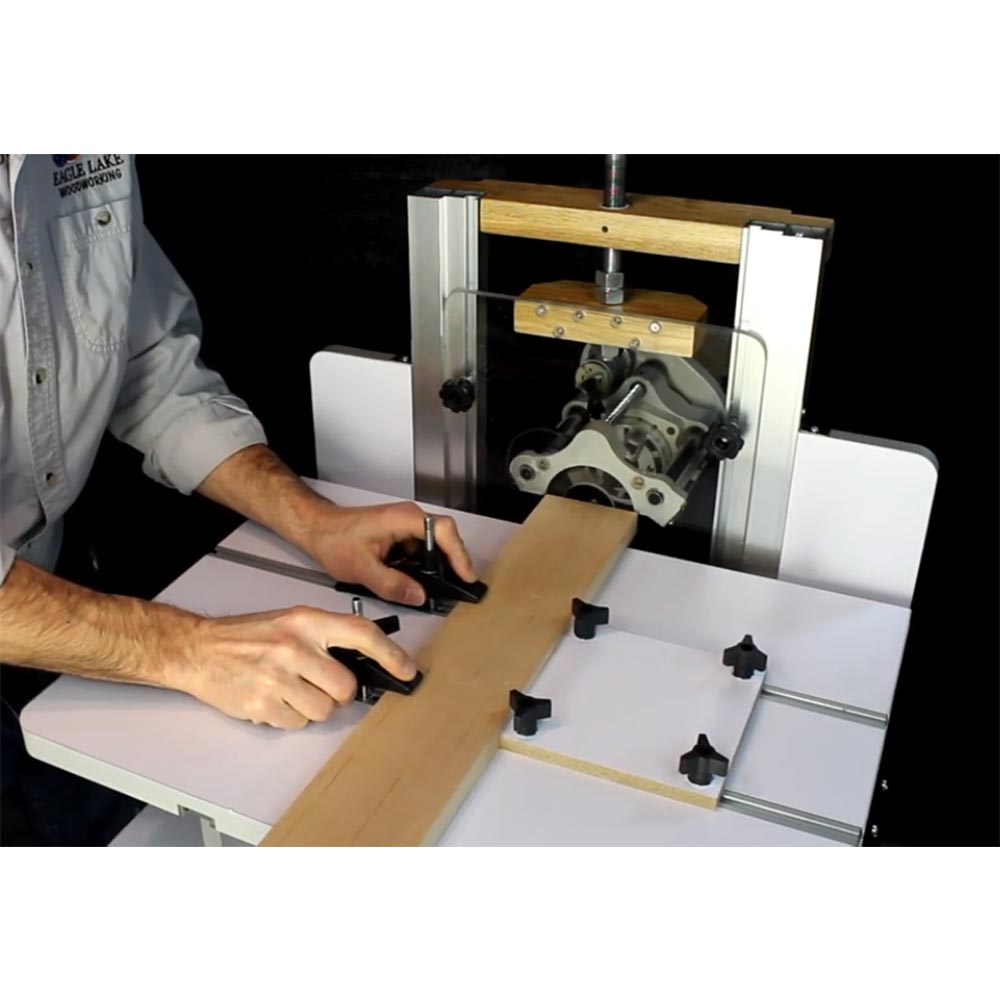

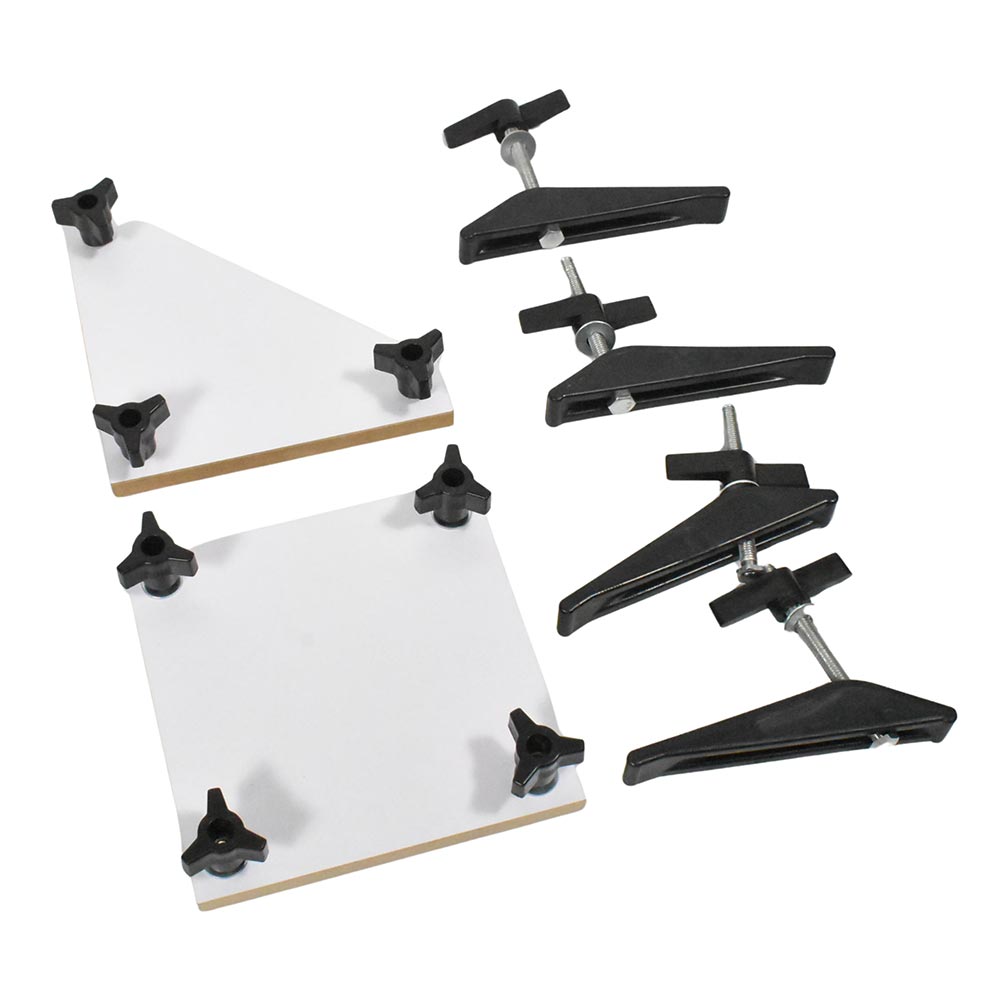

• Includes four adjustable hold down clamps that secure stock firmly during routing and assist with controlled table movement.

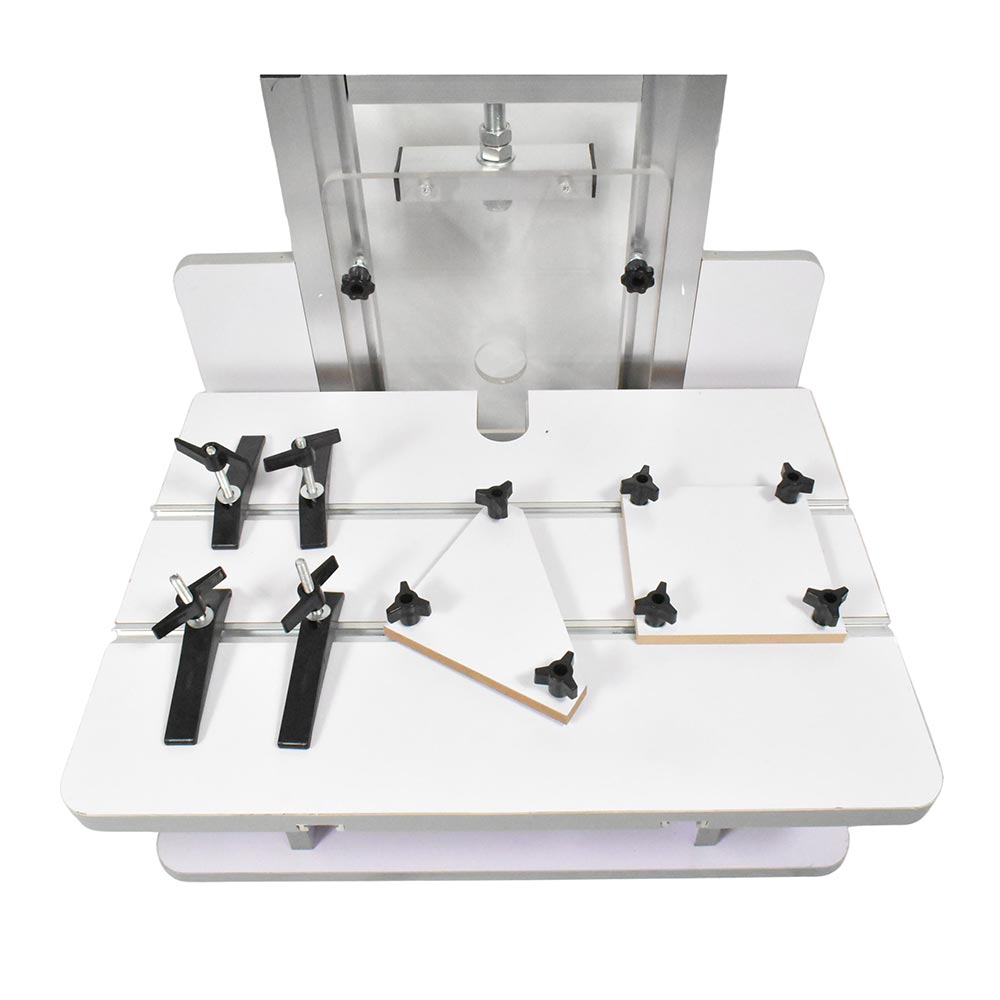

• Positions workpieces accurately with included stop locks for both 90 degree and 45-degree alignment to support straight and angled mortising operations.
• Supports repeatable mortise placement and consistent tenon cutting by maintaining controlled movement and fixed reference positioning during batch work.

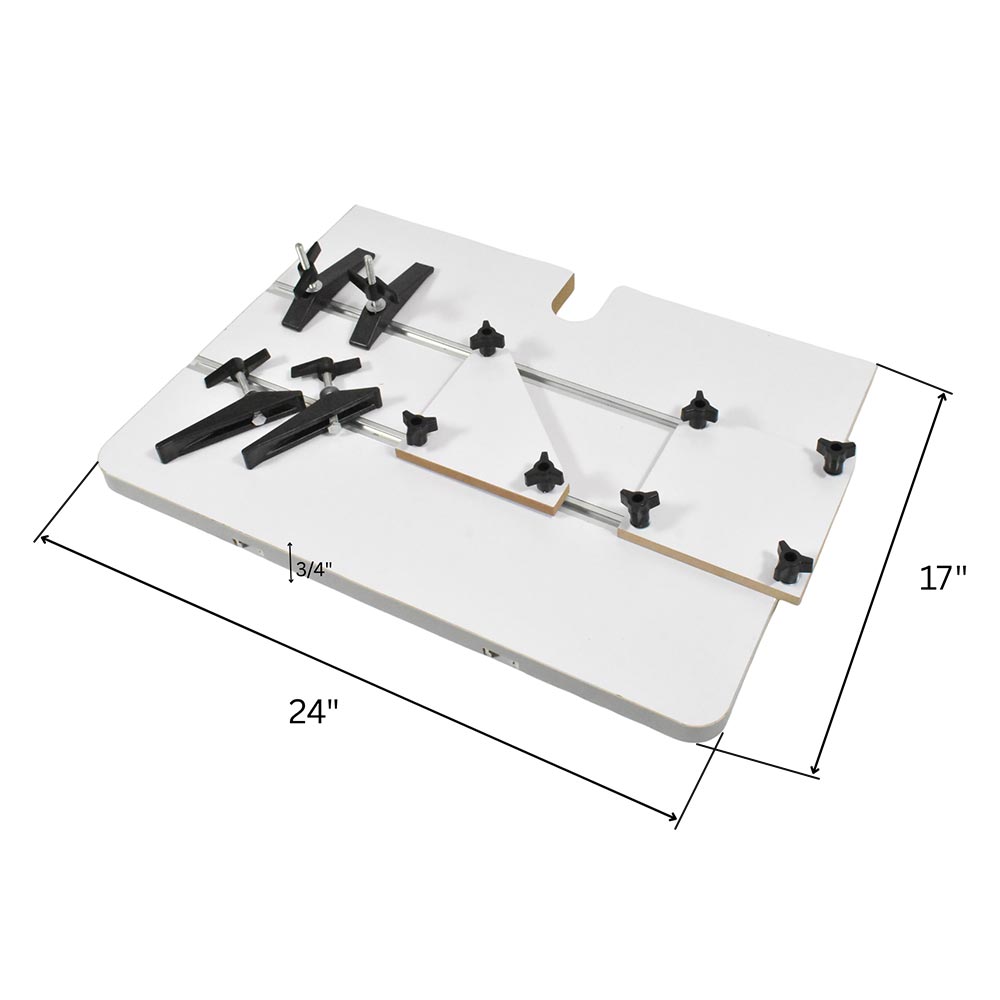

• Built with a 3/4-inch thick MDF sliding table reinforced by aluminum T-tracks for stable support during routing operations

Optional Add-On Features:

Mortising Top #9766 Features

• Mortising top is a safer, easier, and accurate way to cut mortise and tenon joinery.
• The X-Y tables slide on aluminum t-tracks to insure straight, accurate cuts.
