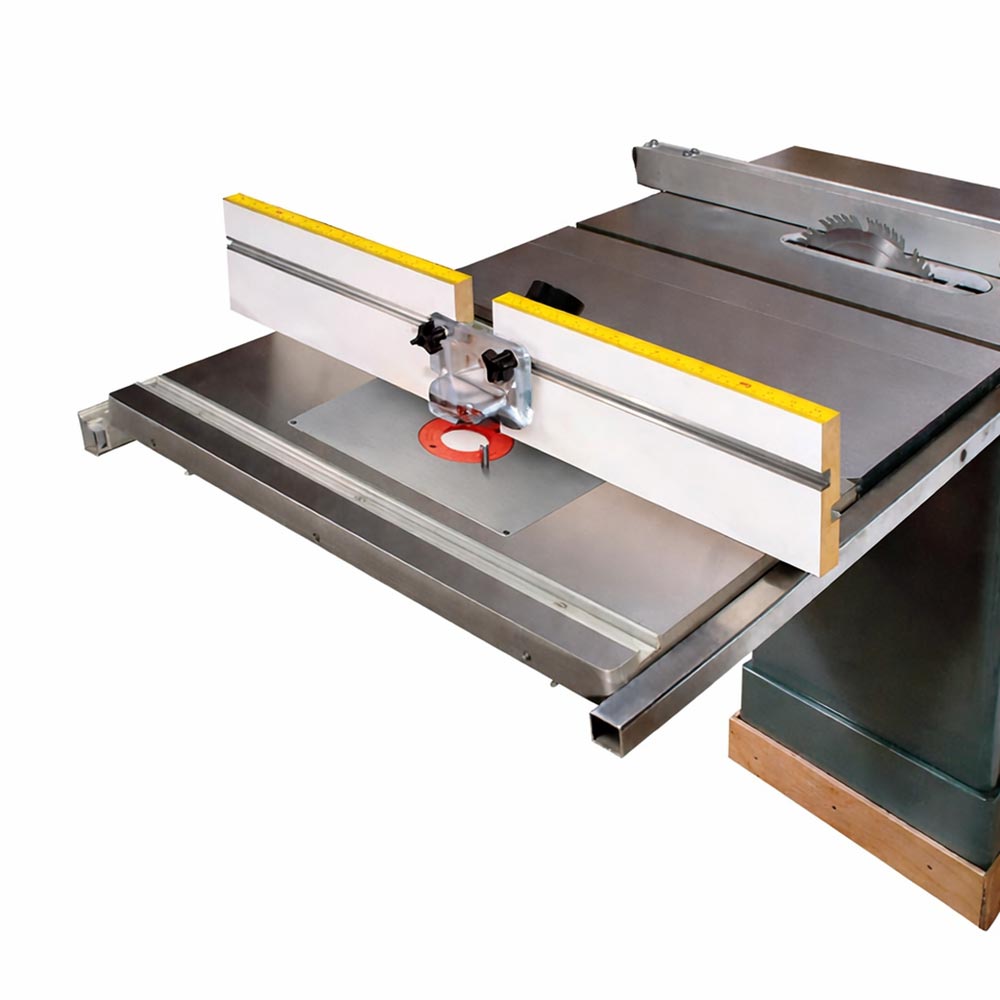

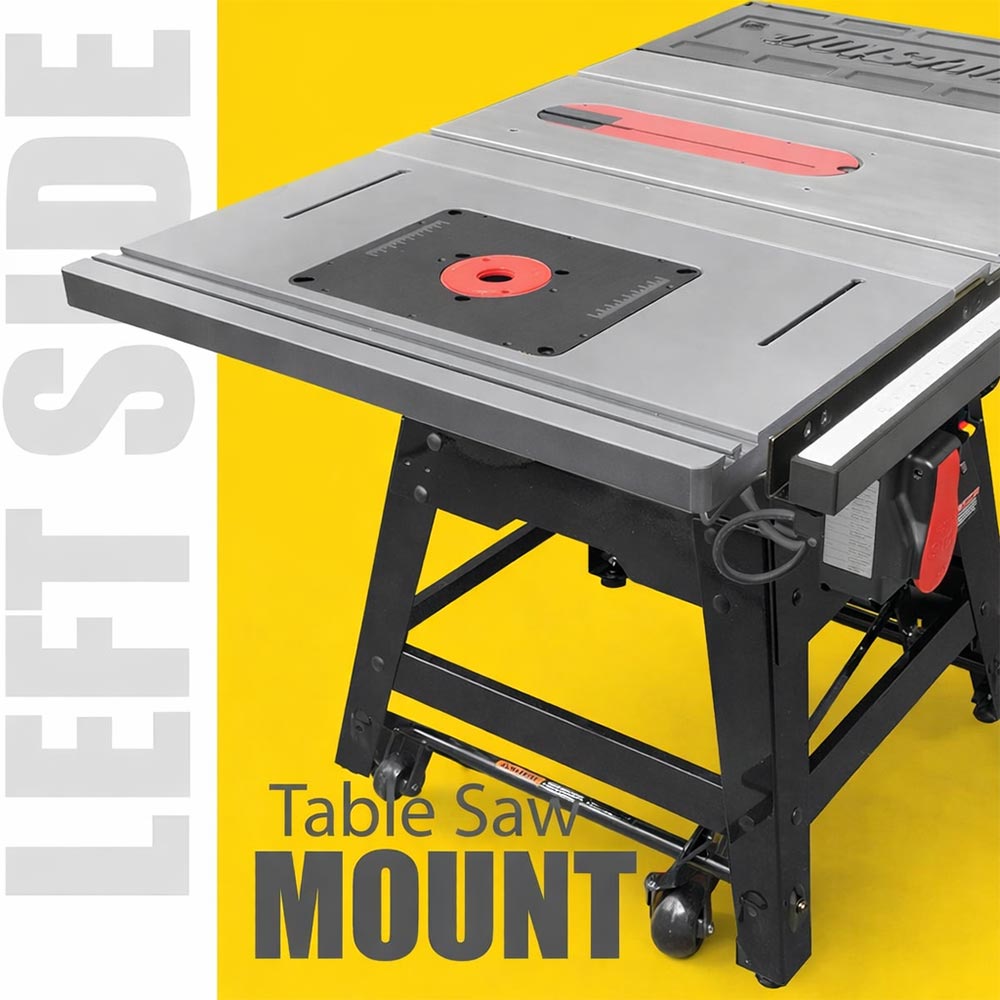

The MLCS 9769 Cast Iron Router Table Extension Wing is designed to mount between 27-inch table saw rail systems to create a rigid and integrated routing platform. It expands routing capability by providing a full 27-inch by 16-inch machined cast iron surface that supports controlled edge routing, jig use, and repeatable stock positioning. The 1-1/2-inch-thick cast iron top weighs approximately 50 pounds and is machined flat to maintain stability and reduce vibration during routing operations. A precision-machined insert opening sized for 9-1/32-inch by 12-3/32-inch router plates allows custom plate or router lift selection to match specific routing requirements. Designed for permanent installation and modular compatibility, this extension delivers stable and repeatable routing performance for cabinet shops and serious woodworking applications.

Features:

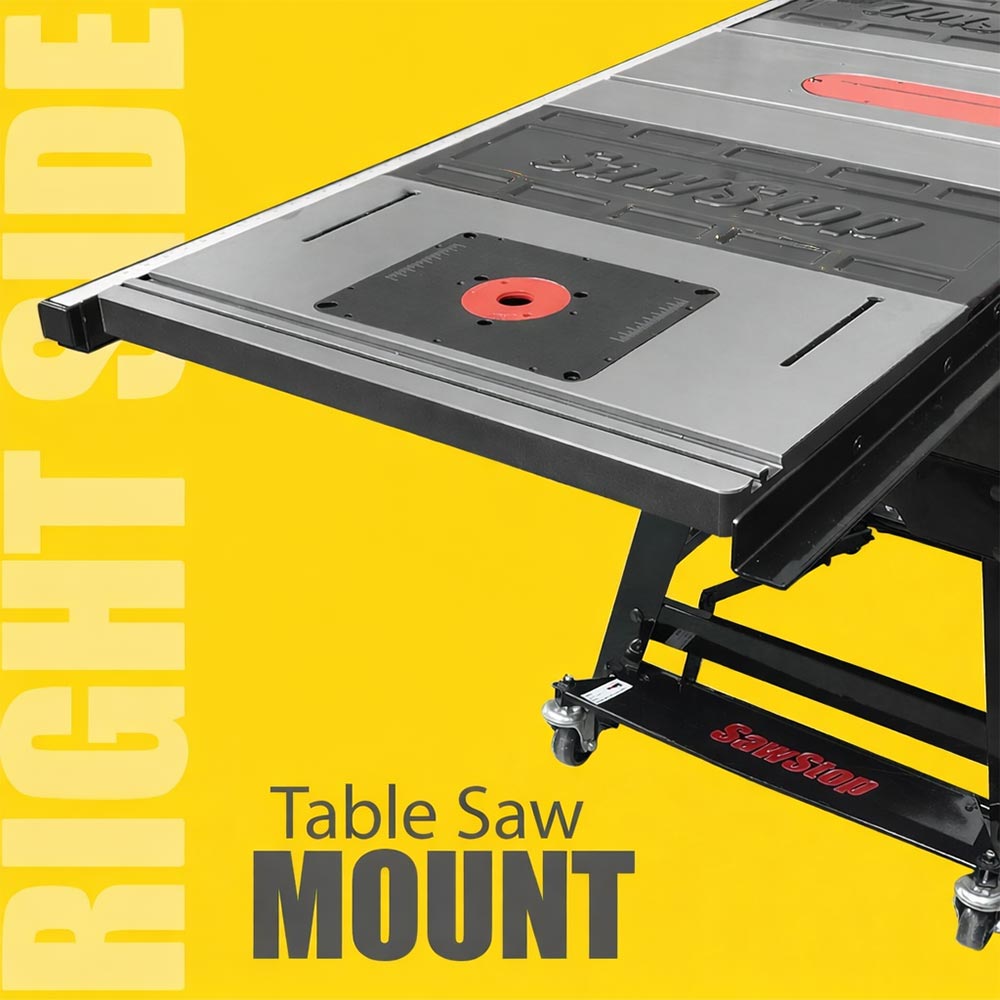

• Converts a table saw into a precision cast iron routing station by mounting securely between 27-inch rail systems with support for 3-bolt and 4-bolt configurations.

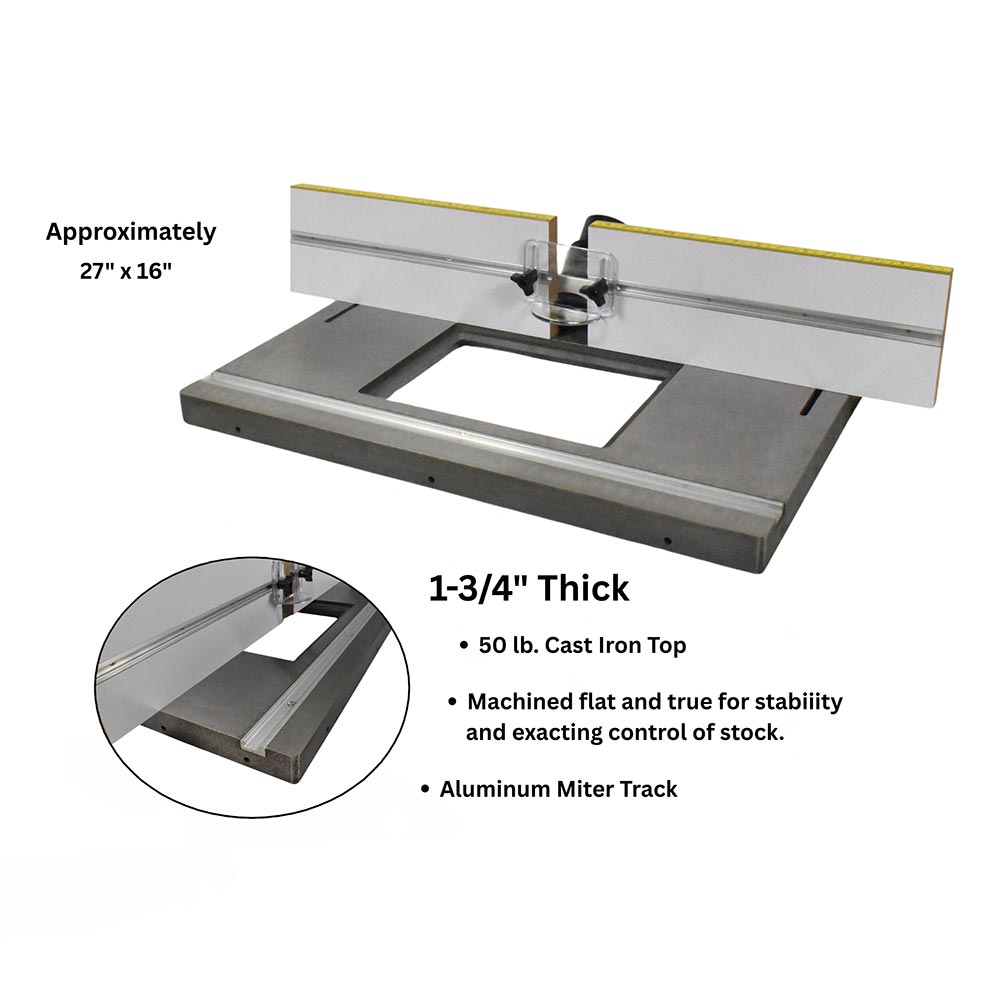

• Delivers routing stability with a 27-inch by 16-inch, 1-1/2-inch-thick cast iron top weighing approximately 50 pounds and machined flat for consistent stock control and reduced vibration.

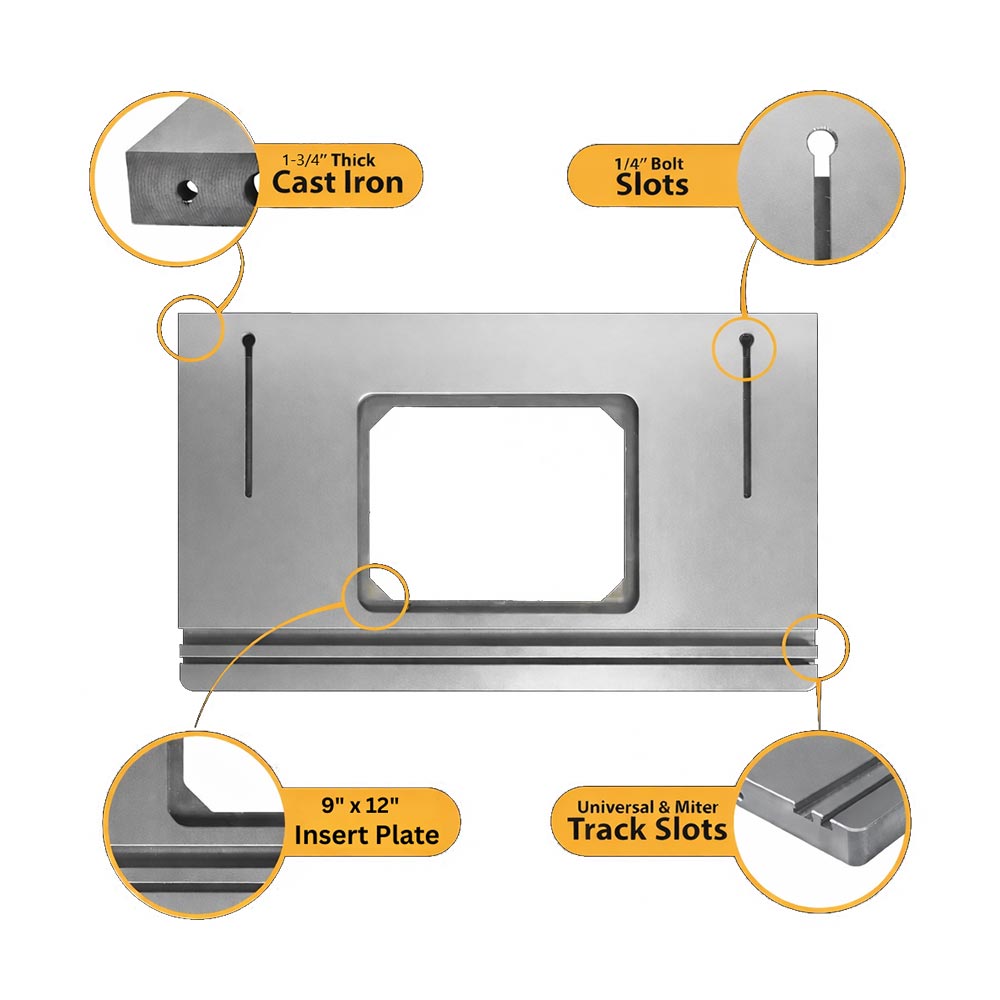

• Designed with a precision-machined insert opening sized for 9-1/32-inch by 12-3/32-inch router plates and compatible router lift systems.

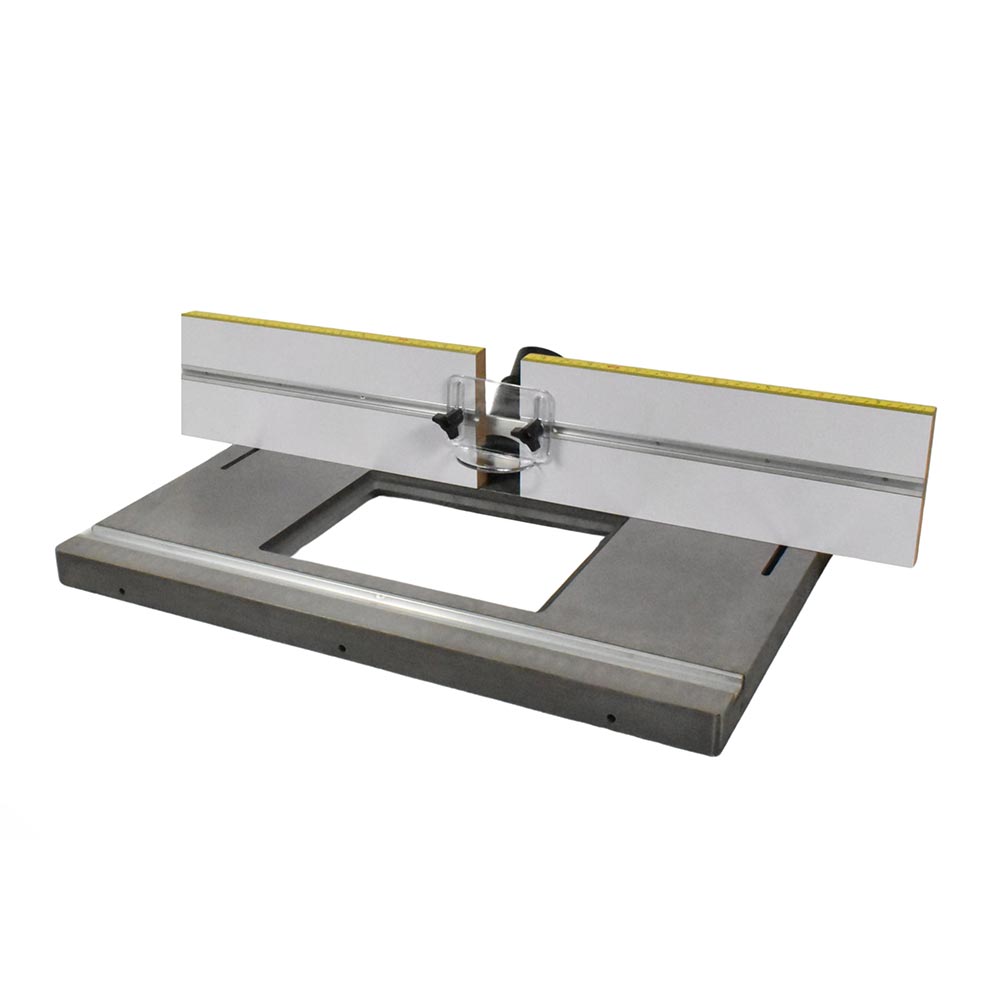

• Provides controlled edge routing with an extra-tall L-aluminum split fence and laminated MDF sub fences adjustable from 0 to 4 inches for proper bit clearance and zero-clearance support.
• Stores the fence conveniently on integrated under-table hooks when not in use.
• Improves measurement accuracy with dual-direction fence measuring scales for right-to-left and left-to-right setups.
• Expands routing capability with a standard 3/4-inch by 3/8-inch miter slot and integrated aluminum T-track for miter gauges, feather boards, and jigs.
• Improves dust management with a 2-1/2-inch dust port compatible with standard shop vacuum systems.
• Compatible with MLCS U-Turn and PowerLift Pro router lift systems for expanded routing capacity.

Specifications:

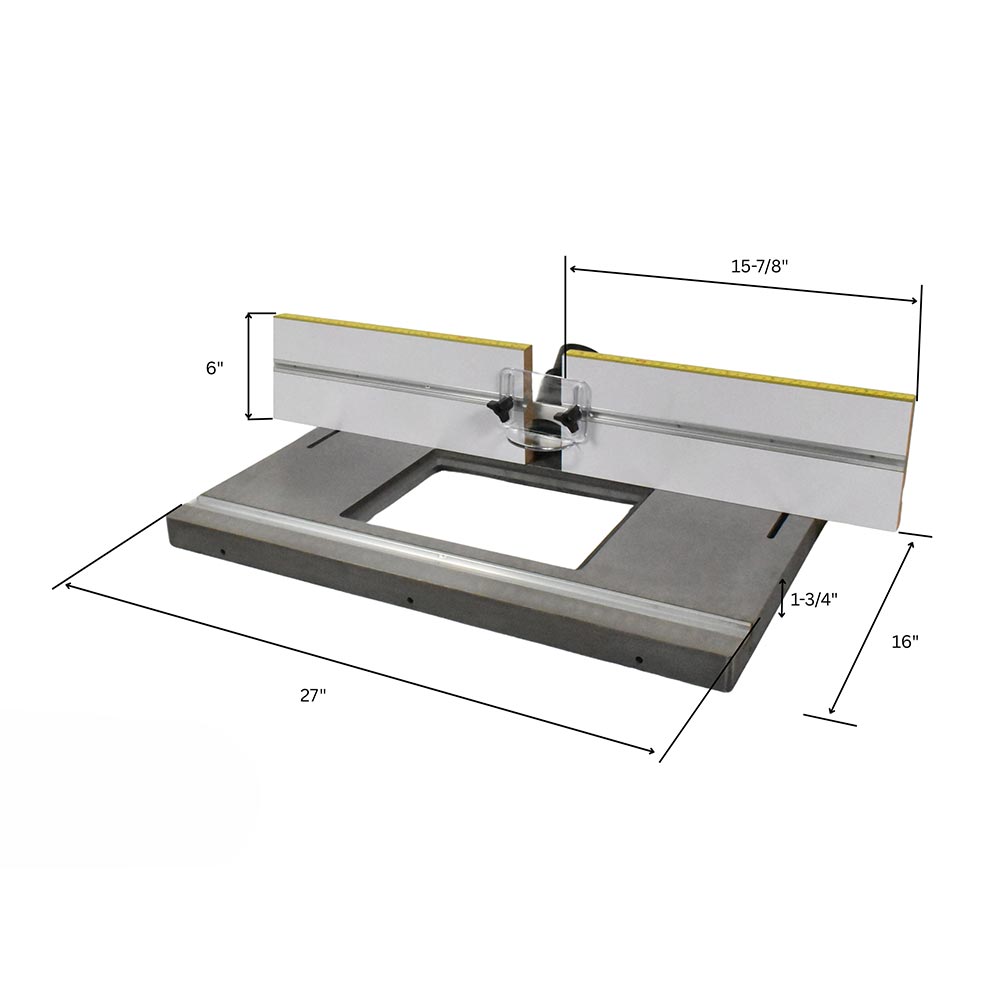

• Overall Table Dimensions: 27” W x 16” D
• Table Thickness: 1-1/2”
• Table Material: Machined Cast Iron
• Table Weight: 50 lbs
• Insert Plate Cutout: 9-1/32” x 12-3/32”
• Fence Type: L-Aluminum Split Fence
• Fence Face: Laminated MDF Subfences (Adjustable 0"–4")
• Dust Port Size: 2-1/2”
• Rail Compatibility: 27" Rail Spacing

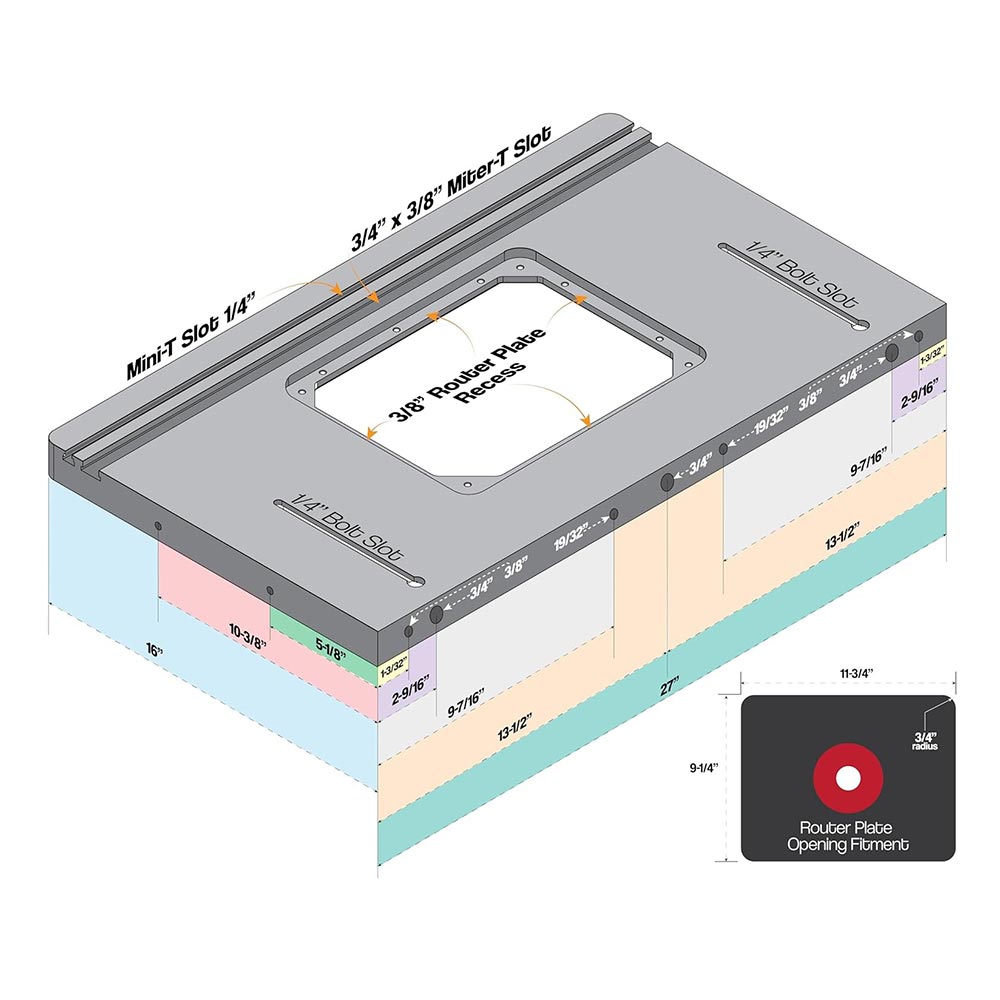

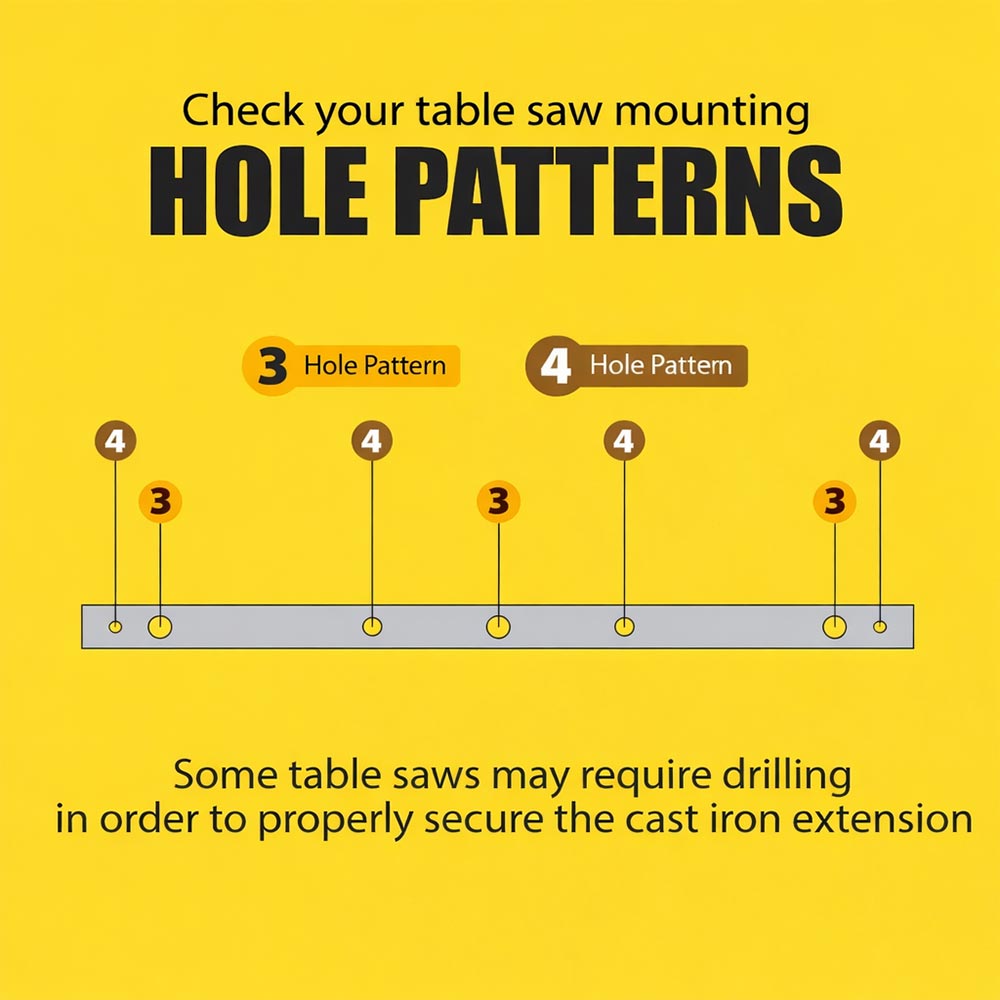

• 4-Hole Alignment: First hole 1-1/8" from end, Remaining holes spaced 8-1/4" apart, & Holes centered on 1-1/2" thick top
• 3-Hole Alignment: First hole is 2-3/4" from end, center hole is in the middle at 13-1/2", & Holes are 7/8" diameter.
• Lift Compatibility: MLCS U-Turn, MLCS PowerLift Pro, & other lifts using 9-1/32" x 12-3/32" plates
