MLCS Horizontal Router Table Package routs wide stock flat with tall router bits in the horizontal position. Quickly and easily make mortise and tenon joinery, raised panels with vertical raised panel bits, moldings and picture frames. Don't stand stock on edge! Much safer and more accurate than standing wide stock on edge. No need for tall auxiliary fences, multiple featherboards or jigs.

Features:

Horizontal Table #9767:

• Features micro adjustable bit height adjustments. 1/16" per turn allows for very precise adjustments: (1/4 turn = 1/64", 1/2 turn = 1/32", 3/4 turn = 3/64").
• The table is 24" wide x 20" deep x 25" height with a sturdy 3/4" thick MDF core, durable melamine surface and polyethylene plastic edges. Now features a full extruded aluminum support structure.
• 3/4" thick MDF core with melamine surface extension fences, on both sides of the router plate give maximum support to long stock.
• The 3/8" thick, 11-3/4" x 11-1/2" router plate is held in routing position by sturdy aluminum extrusions, along with two locking knobs which safely secure the sliding router plate in position.
• Miter T-track fits a standard 3/8" x 3/4" miter bar or safety bar.

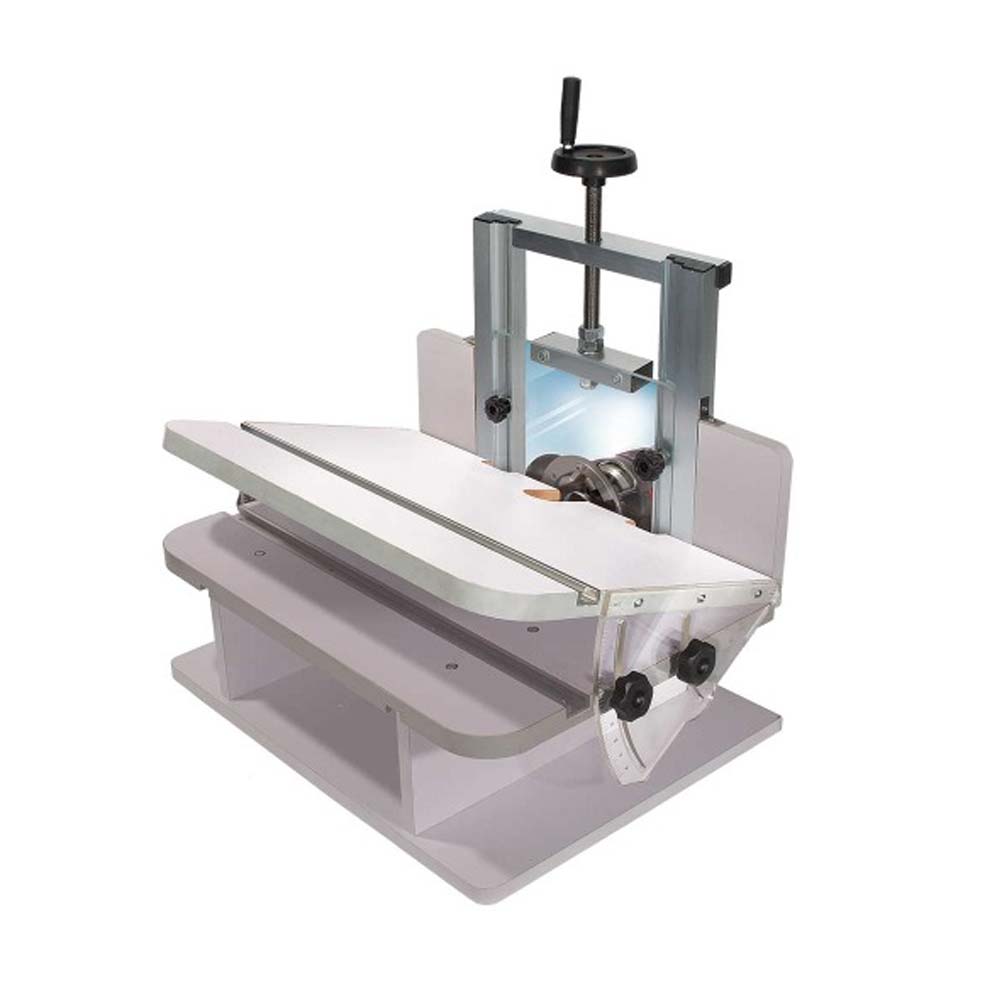

Tilt Top #9764:

• Top tilts up to 45 degree, allowing you to create offset angles that can't be cut on a conventional 90 degree table surface.
• Creates custom chamfers using a straight router bit.
• Cut spline joints on multi-sided objects.
• Produce tapered moldings using crown molding or chair rail bits

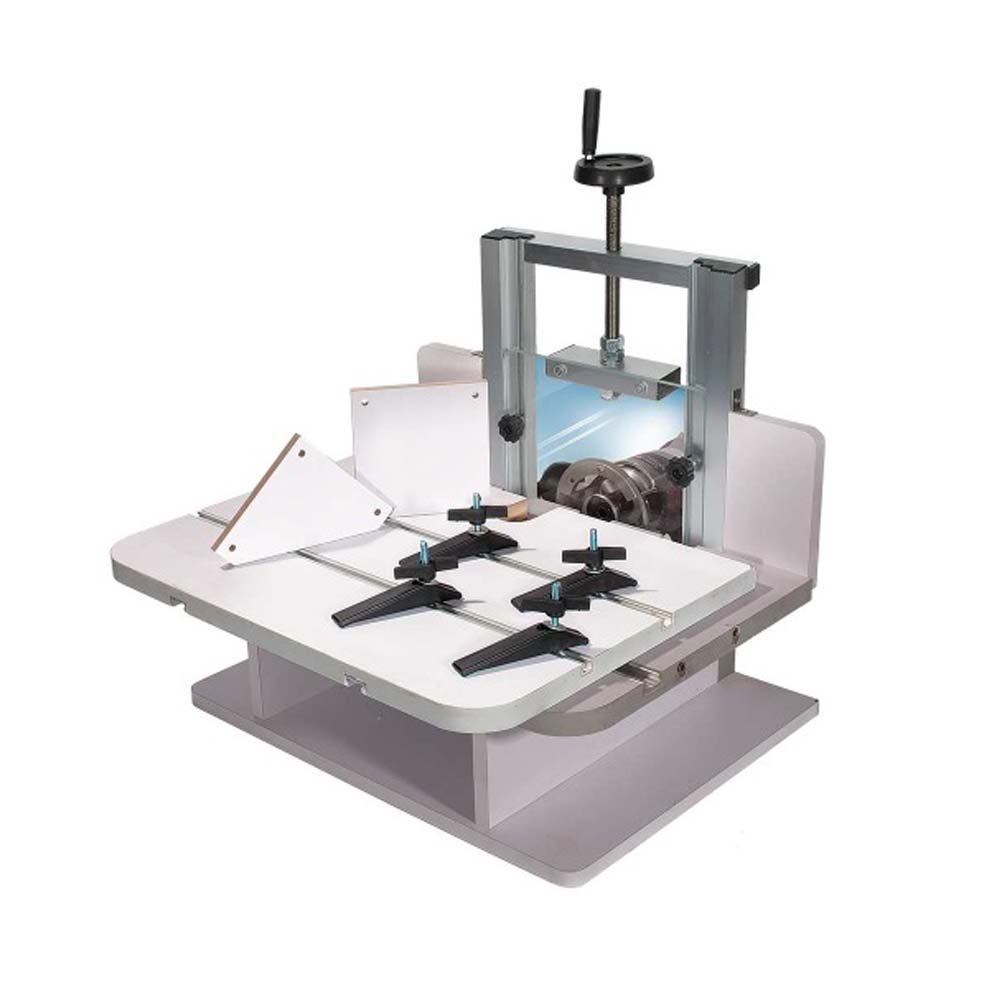

Mortising Top #9766:

• Mortising top is a safer, easier, and accurate way to cut mortise and tenon joinery.
• The X-Y tables slide on aluminum t-tracks to insure straight, accurate cuts.

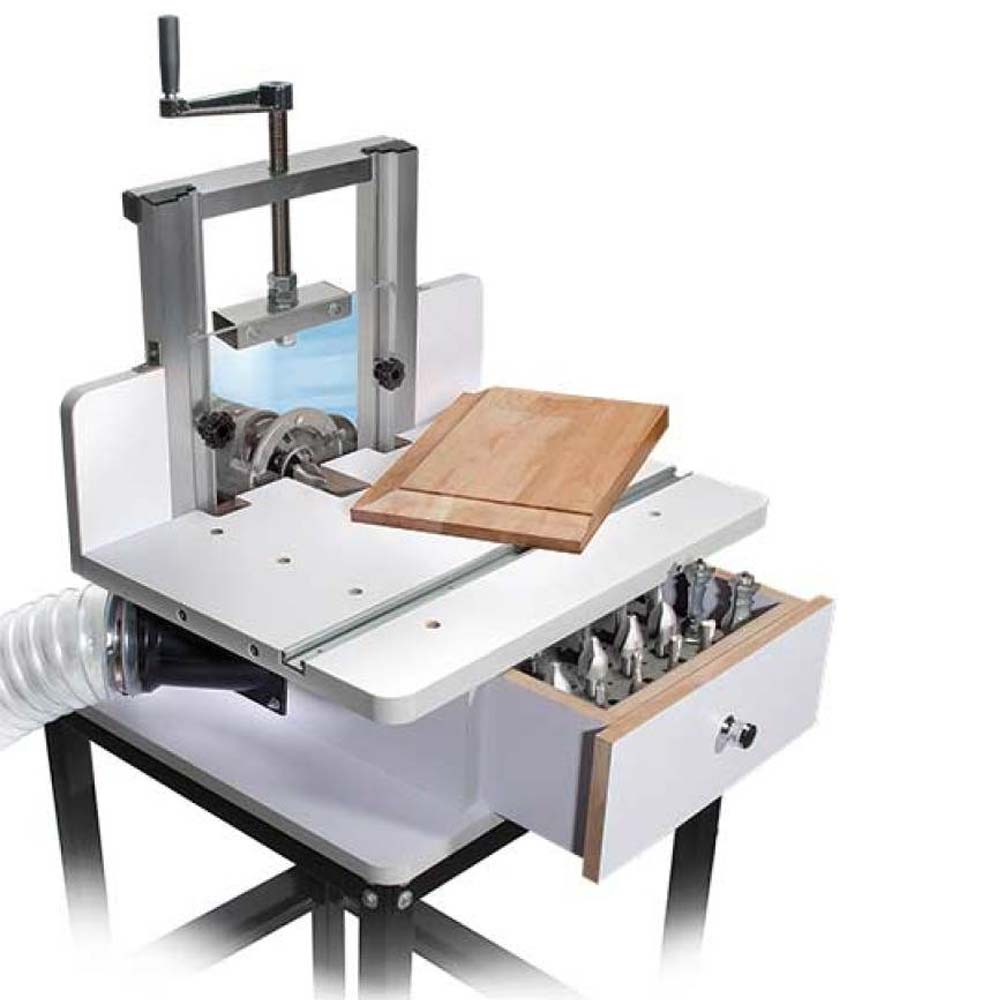

Horizontal Router Table Premium Kit #9763

• The Premium Upgrade Kit greatly improves your routing experience with the MLCS *FLATBED* Horizontal Table.
• The Cast-Aluminum Extension Handle makes height adjustments even easier. By adding this extra strong and extra long handle, the force required to make precision adjustments is much less then the original stock handwheel.
• The premium upgrade kit includes everything you need to enclose the base of your horizontal table and make it dust collection ready. A 2-1/2" dust collection adaptor mounts to the side of the table. A back panel encloses the dust collection area and still allows for all height adjustments to be made.
• A Large Storage Drawer has been added to the front of the table, with enough room to hold a large selection of router bits and router accessories.

Includes:

• Horizontal Table #9767
• Tilt Top #9764
• Mortising Top #9766
• Premium Upgrade Kit #9763
