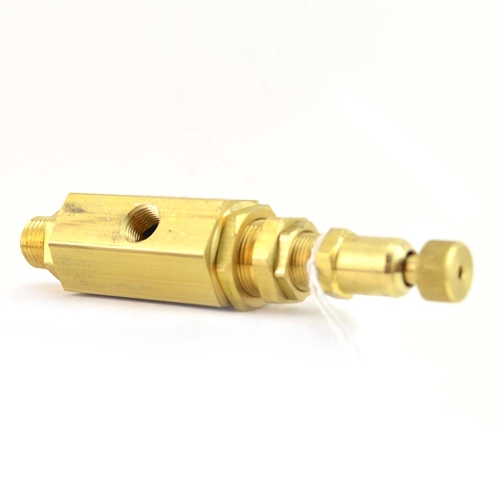

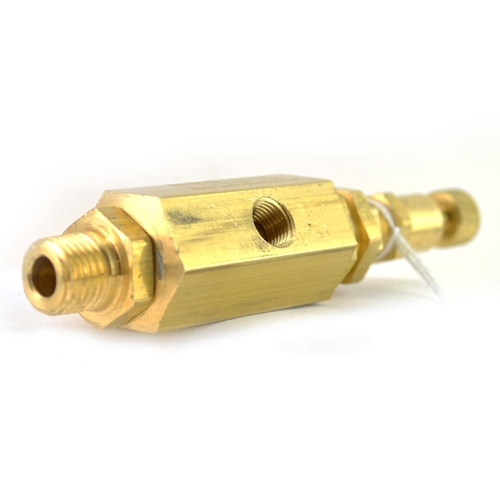

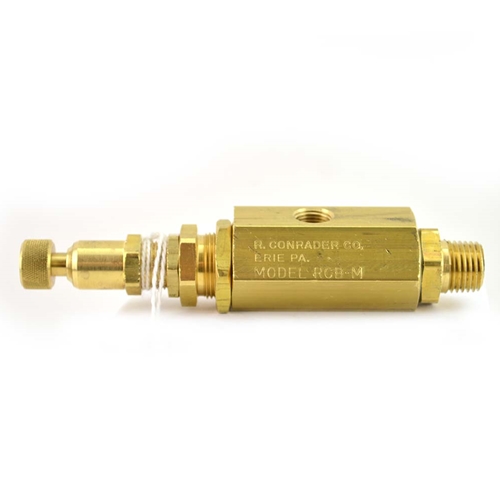

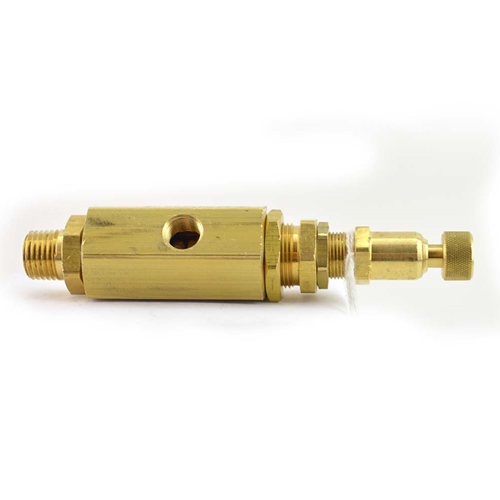

Pilot Valves are used on compressed air systems to control other devices using a pneumatic signal. The pilot valve is factory set in a pressure range with an unload (cut-out) and load (cut-in) setting. As the system pressure increases and the unload (cut-out) pressure is achieved, the pilot valve opens and pressurizes the line downstream of the pilot. As the system pressure deceases and the load (cut-in) pressure is achieved, the pilot valve closes and depressurizes the line downstream of the pilot valve.

Specifications:

• Preset at 95-125 PSI

• Operating Pressure: 20-1200 PSI
• Operating Temperature Range: -15° to 400° F

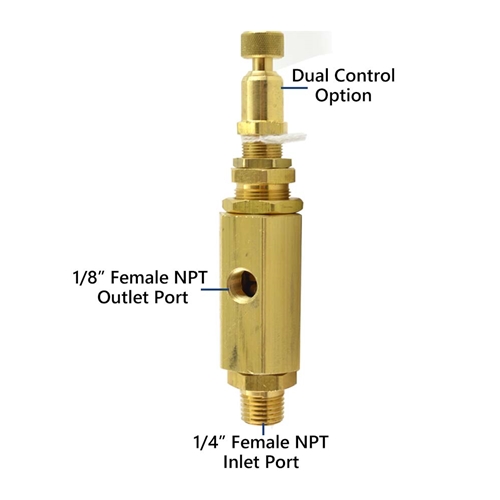

• Inlet Connection Port: 1/4″ Male NPT
• Outlet Connection Port: 1/8″ Female NPT
• Body/Fittings: Brass
• O-Rings: Silicone/Viton
• Poppets: Reinforced PTFE
• Springs: Stainless Steel
• Made in USA

This item fits the following models:

• Pilot Valve for pumps w/ unloaders (Emglo / Dewalt style) - RCB style

Dewalt

• 5130236-00

Emglo

• K5HGA-8P
• K5GA-8P
• K5WGA-8P
• K5CGA-8P
• K5HGA-17P
• K5GA-17P
• K5WGA-17P
• K5CGA-17P
• G8HGA-17P
• G8GA-17P
• G8CGA-17P
• G8VGA-17P
• G8KGA-17P
• G8HGA-8P
• G8GA-8P
• G8CGA-8P
• G8VGA-8P
• G8KGA-8P
