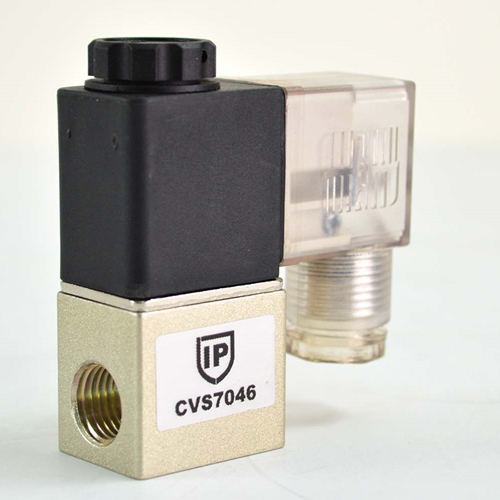

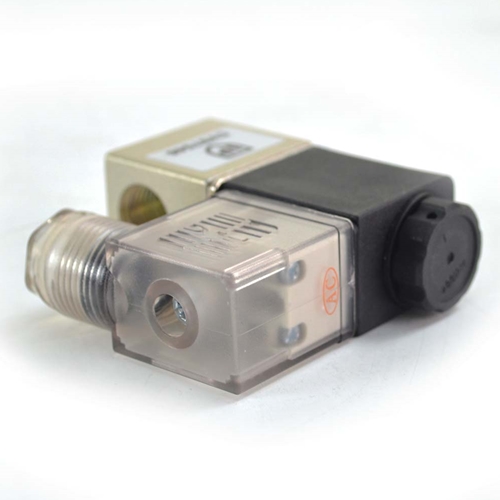

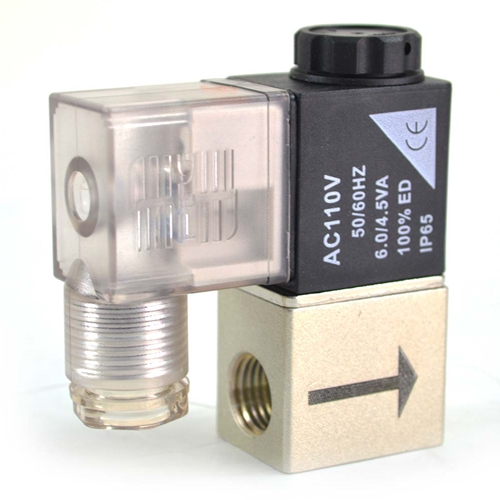

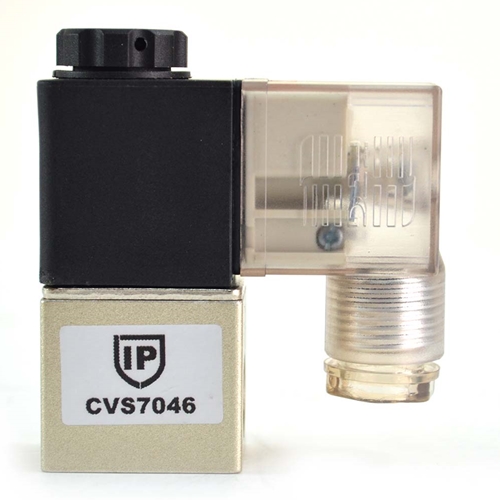

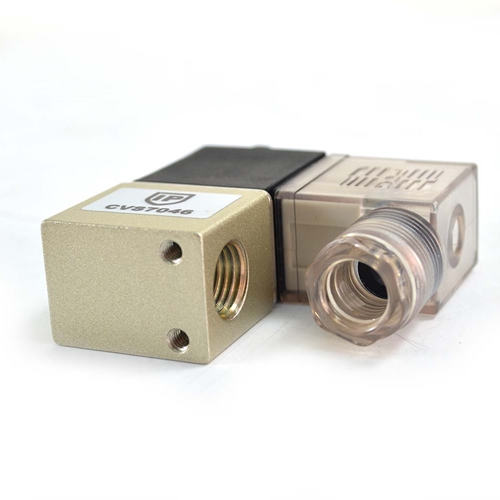

Interstate Pneumatics CVS7046 - 1/4" NPT 2 Way 2 Position Solenoid Valve is a state-of-the-art pneumatic valve. It is a 2/2 valve which means it has 2 ports and 2 flow positions. Put simply, this valve either blocks or opens air flow. This valve uses AC 110 V, is constructed with aluminum alloy, and has an aperture of 1/4”. Interstate Pneumatics solenoid pneumatic valves offer reliability, low power consuming, and long life. They have prewired connections which makes installation, maintenance, and control simple.

Specification:

• Voltage: AC 110V
• Positions: Two way/Two position
• Fluid Applied: Air, Water, Oil
• Action Mode: Direct Operation Style
• Style: NC style (normal closed)
• Port Size: 1/4" NPT
• Operating Pressure: 0-120 PSI
• Working Temp: (-5 to 60ºC / 23 to 140ºF)
• Insulation and Protection: Class F Class / IP65
• Wiring Form: Terminal
• Body Material: Aluminum Alloy
