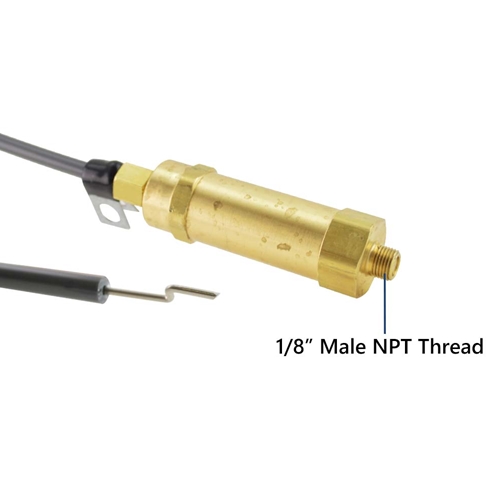

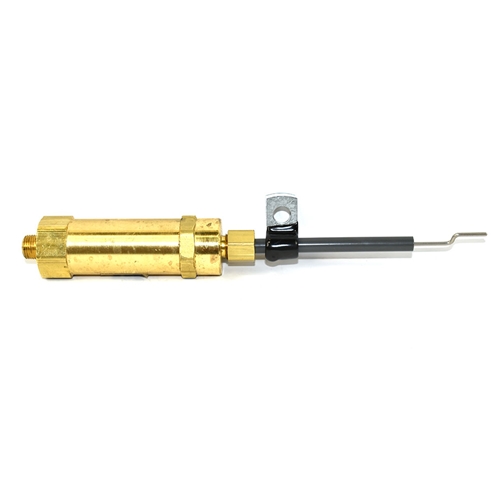

“Cable Style Throttle Controls” are mounted on the pilot valve or elsewhere on the compressor and the cable end is connected to the engine throttle arm. These are of brass construction with Viton seals, stainless steel springs, and stainless-steel cable. The cable is permanently lubricated and is self-cleaning. Routing clamps are used to mount and protect the cable.

Features:

• Can be customized to adapt to specific engines
• Brass construction with Viton seals, stainless steel springs, and stainless-steel cable
• The cable is self-cleaning. Routing clamps are used to mount and protect the cable

Specifications:

• Cable Length: 3 Inches
• Min Actuation Pressure: 80 PSI
• Max Operating Pressure: 500 PSI
• Operating Temperature Range: -15° to 400° F
• Stroke Length: 1.00 Inch
• Retracted Spring Force: 16.89 Lbf
• Inlet Connection: 1/8” Male NPT
• Works with both under 8 HP & over 8 HP Compressors
• Made in USA
