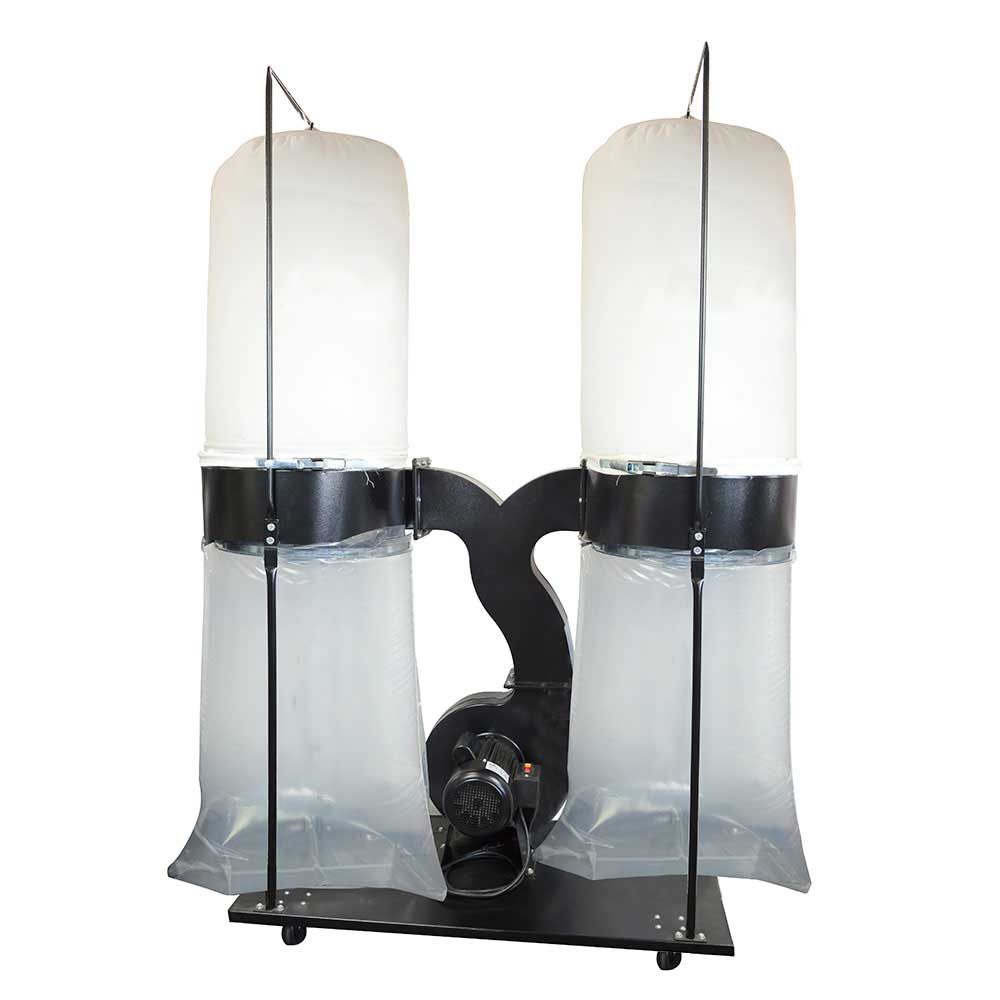

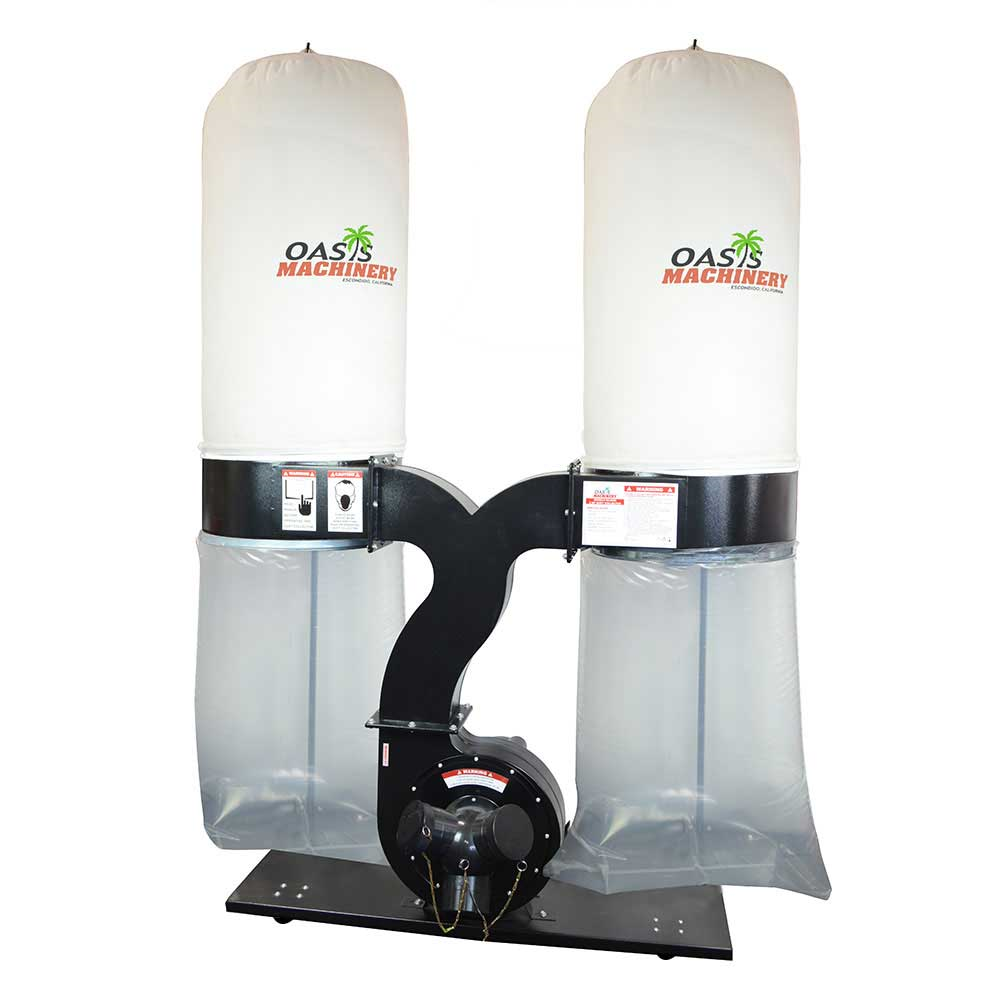

3 HP Four Bag Wood Dust Collector (1687A)

392.70 392.70
Share :

Oasis Machinery Heavy Duty 3HP Wood Dust Collector, DC3000. Oasis Machinery Dust Collector has 3 horsepower with an air speed of 1900CFM. This has the standard 6 inch intake and fits on almost any brand of machine that makes chips, wood dust, or debris. The collector comes with two clear lower bags so you can easily see when to empty them. It also has two large upper bags for premium ventilation.


Specifications:

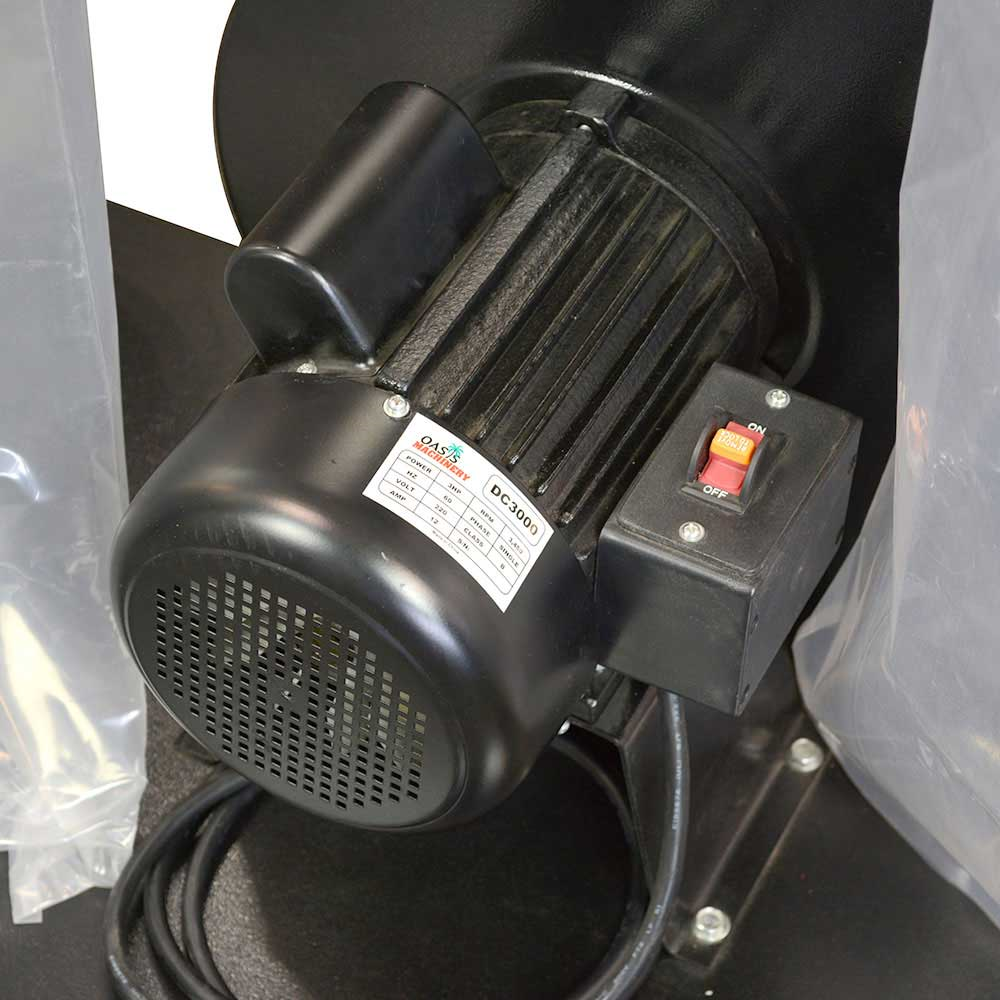

  • Motor Size: 3 HP, 220V, single-phase, 3,450 RPM
  • Motor amp draw: 220V - 12A
  • Impeller: 12" balanced steel radial
  • Maximum inlet size: 6"
  • Inlet adapter: 3-way x 4" inlets
  • Air suction capacity: Approx. 1900 CFM
  • Static pressure: 14.50"
  • Bag size (Dia. x depth): 19" x 33" (4)
  • Height (with bags inflated): 78"
  • Bag Volume: 10.8 cubic feet
  • Standard bag filtration: 30 Micron
  • Approximate shipping weight: 130 lbs
