23 Guage 1-3/8" Headless Micro Pin Nailer with Co2 Regulator, cylinder, hose & coupler Kit

Air Locker P635-CO2K 23 Guage 1-3/8" Headless Micro Pin Nailer with Co2 Regulator, cylinder, hose & coupler Kit

https://tscconnect.americangeneraltools.com/web/image/product.template/8385/image_1920?unique=7045ca4
MODEL NO:
N/A
UPC NO:
099461739703
Days
:
Hours
:
Mins
:
Secs

This combination does not exist.

 to view price
Product Image

23 Guage 1-3/8" Headless Micro Pin Nailer with Co2 Regulator, cylinder, hose & coupler Kit

127.21 127.21
Share :

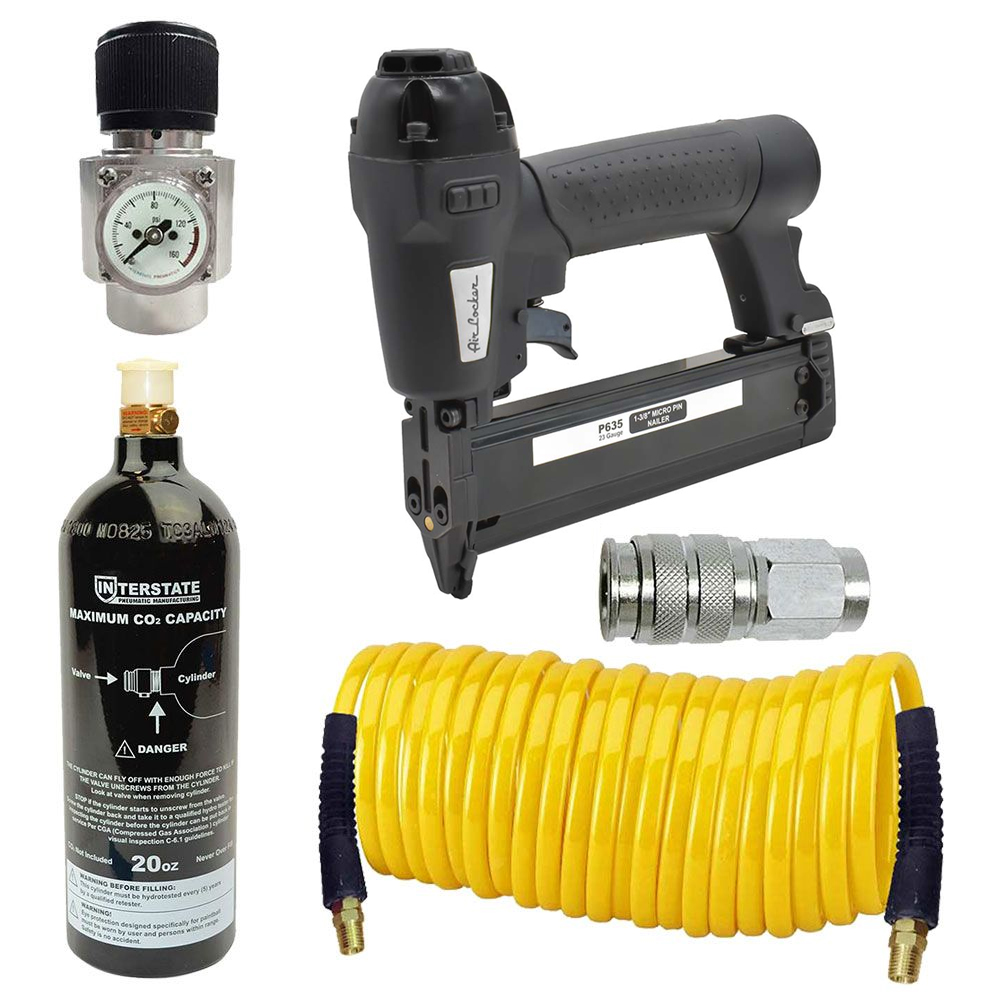

Air Locker P635-CO2K 23 Gauge 1-3/8" Headless Micro Pin Nailer with Co2 Regulator, Cylinder, Hose & Coupler Kit.

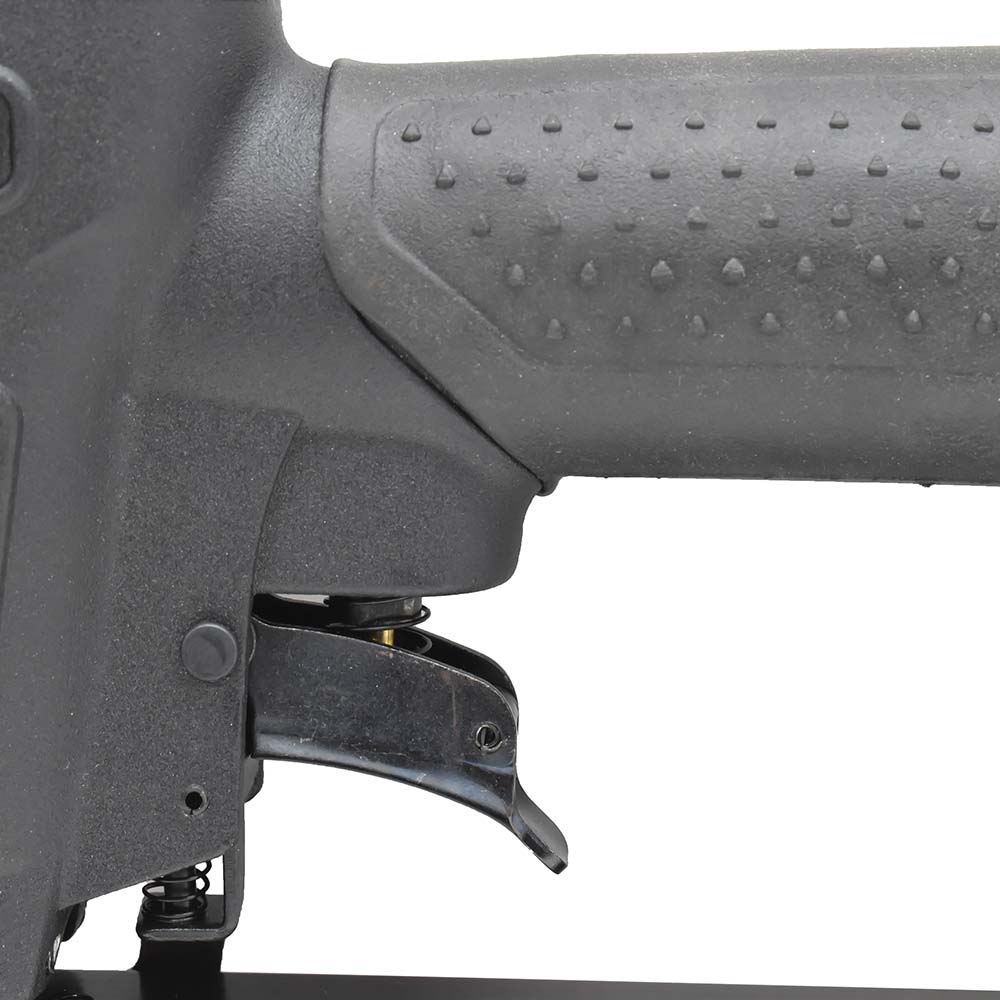

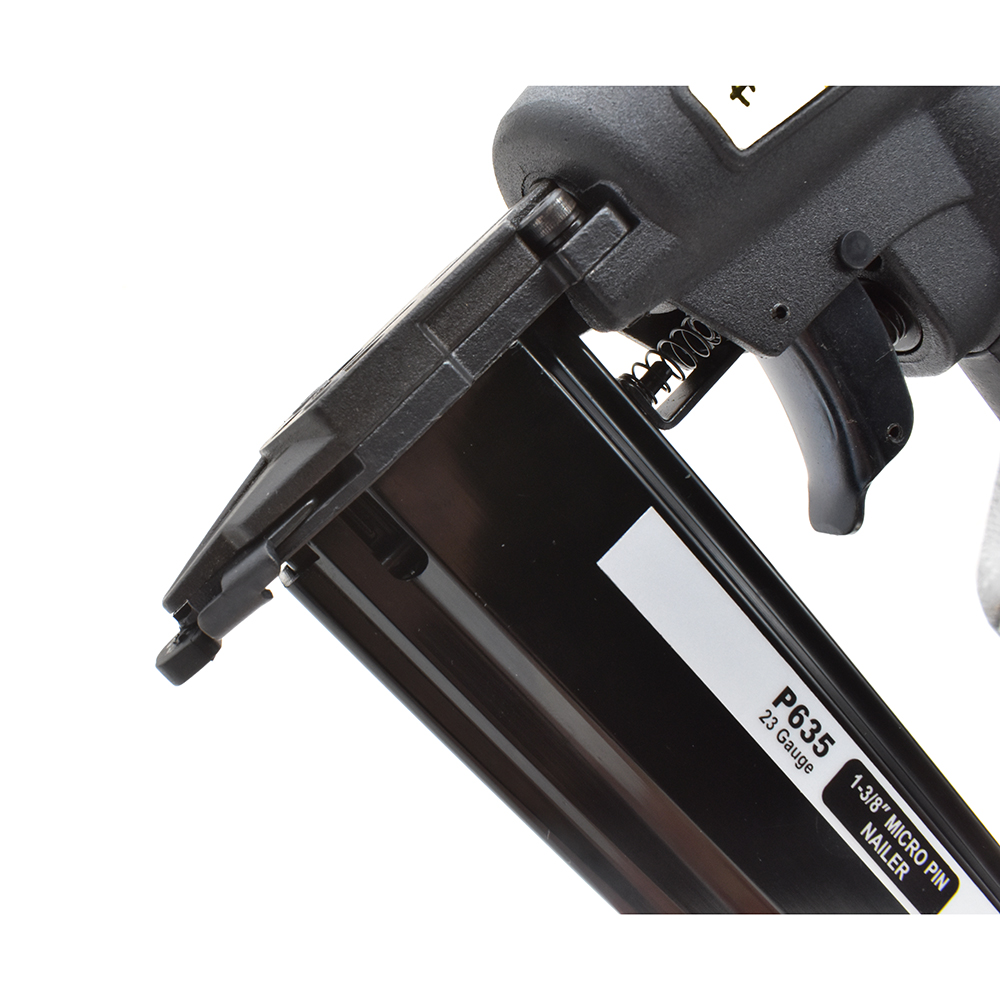

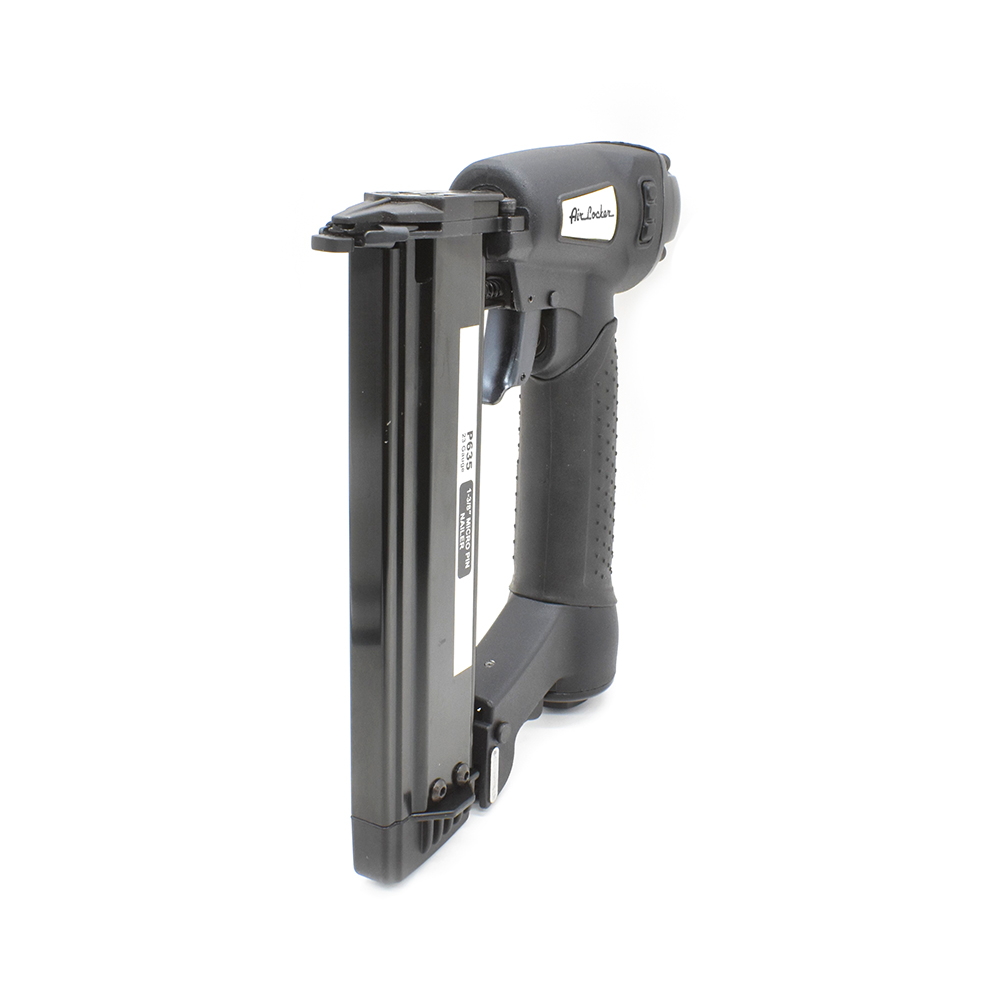

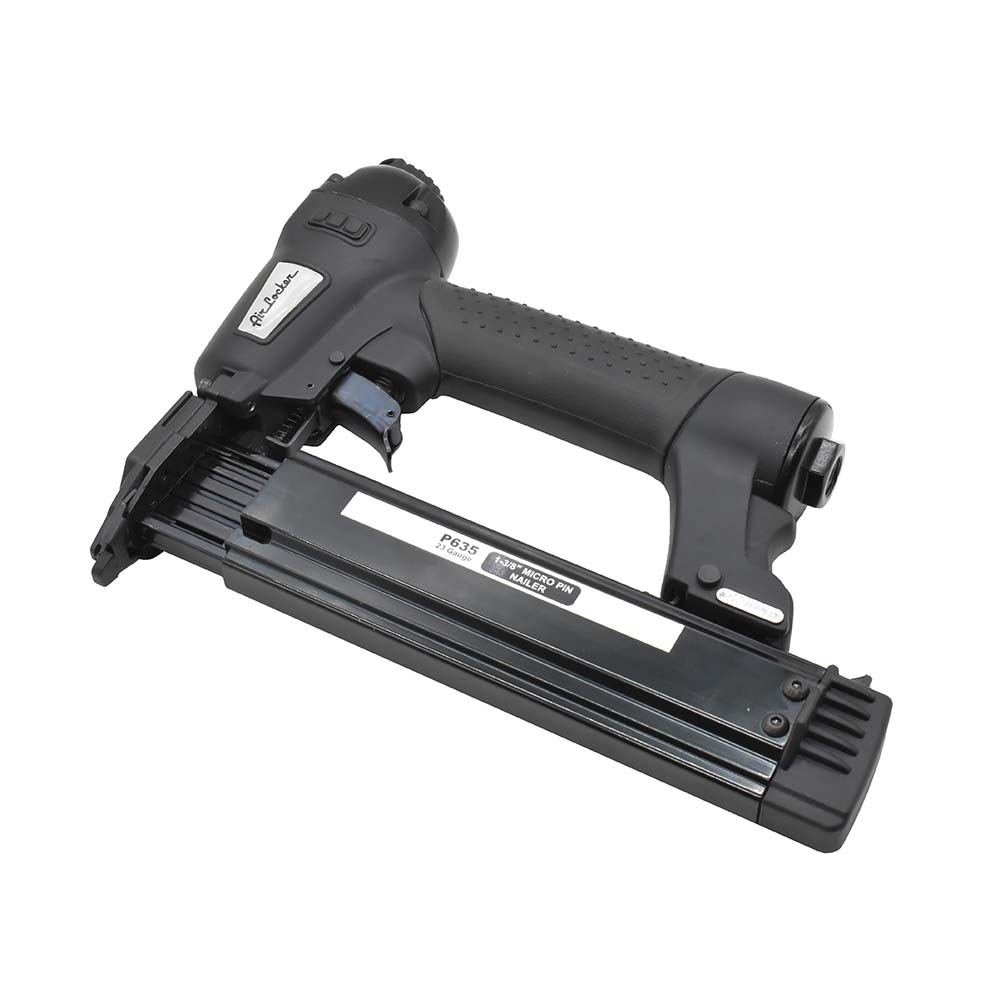

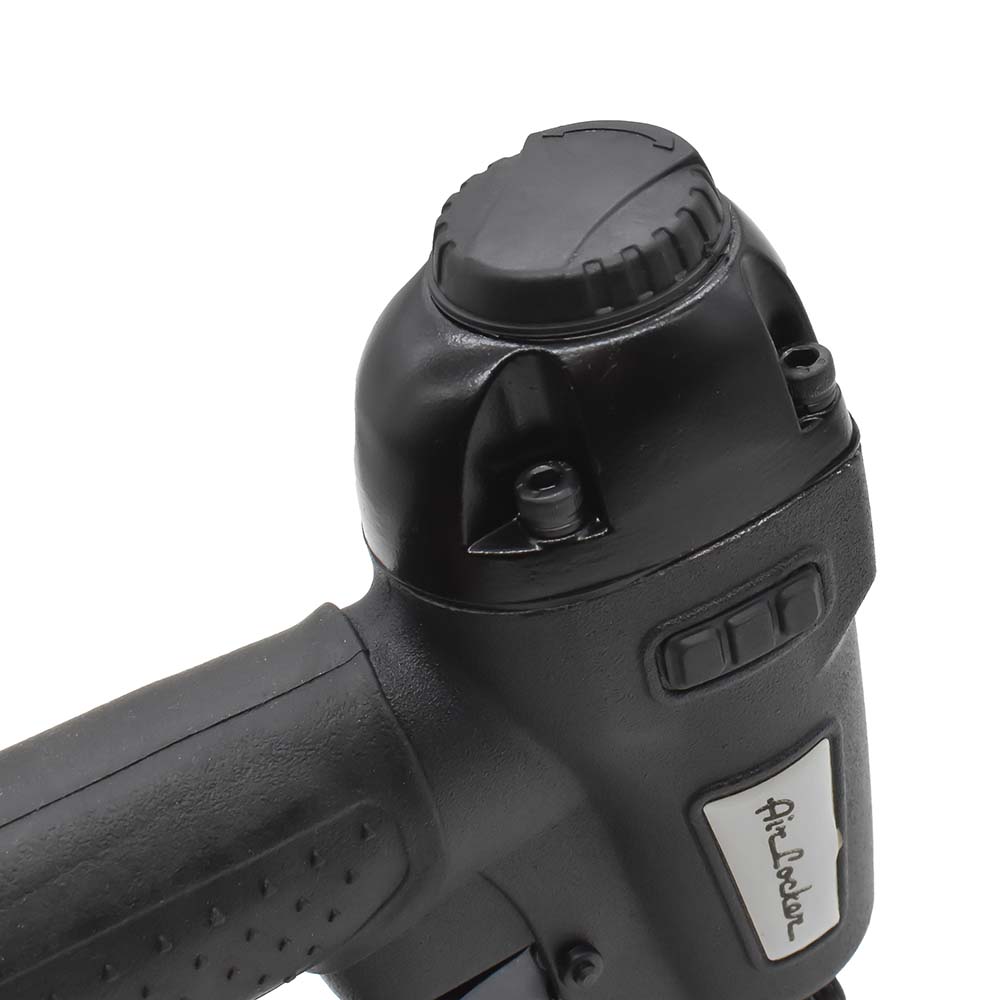

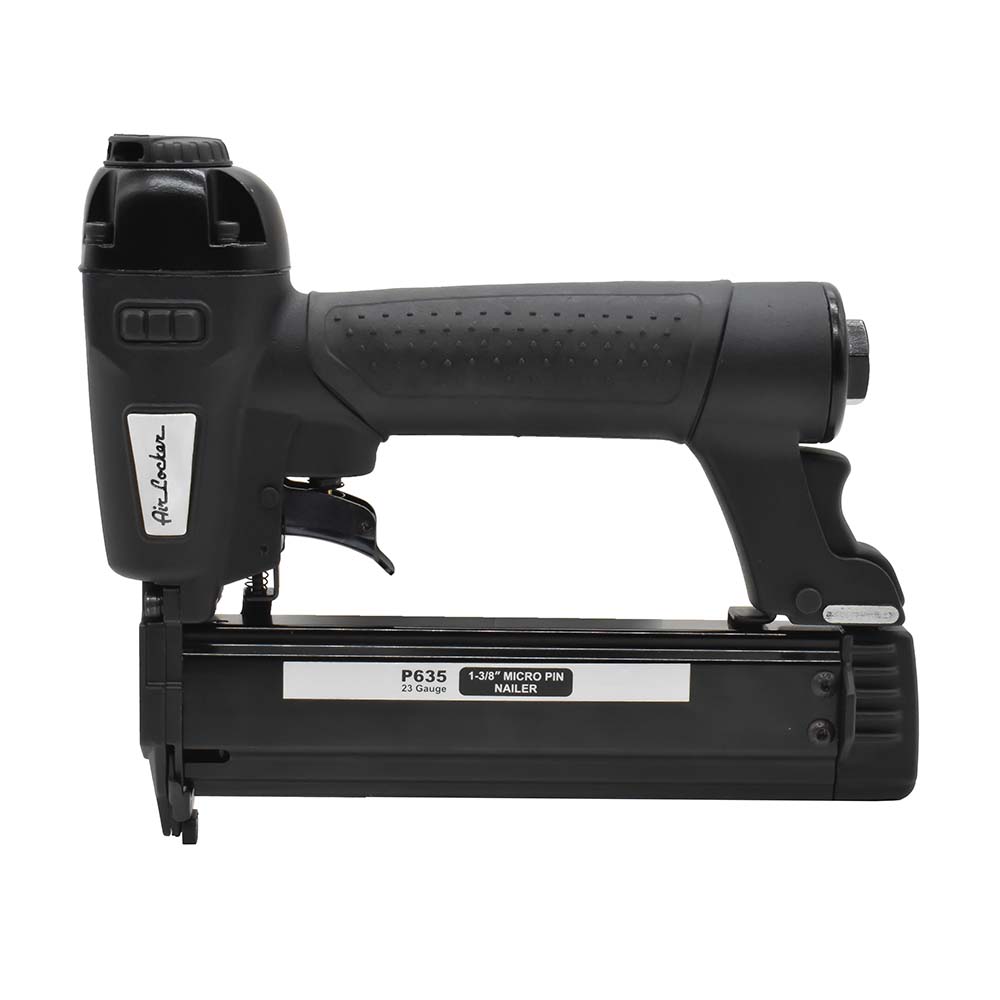

The Air Locker P635-CO2K 23 Gauge Micro Pin Nailer is perfect for cabinets, paneling, trim, molding, and various craft projects. It drives 23-gauge micro pin nails ranging from 1/2” to 1-3/8” in length. The high-capacity bottom load magazine holds up to 200 pin nails and automatically adjusts to different nail lengths. Designed with a low load indicator, it shows when it’s time to reload the magazine, eliminating empty nail holes on the material surface. Built from lightweight die-cast magnesium, this Nailer is both durable and efficient. It features a non-marring tip to protect work surfaces, a 360-degree adjustable exhaust, and padded rubber grips for enhanced comfort and control.

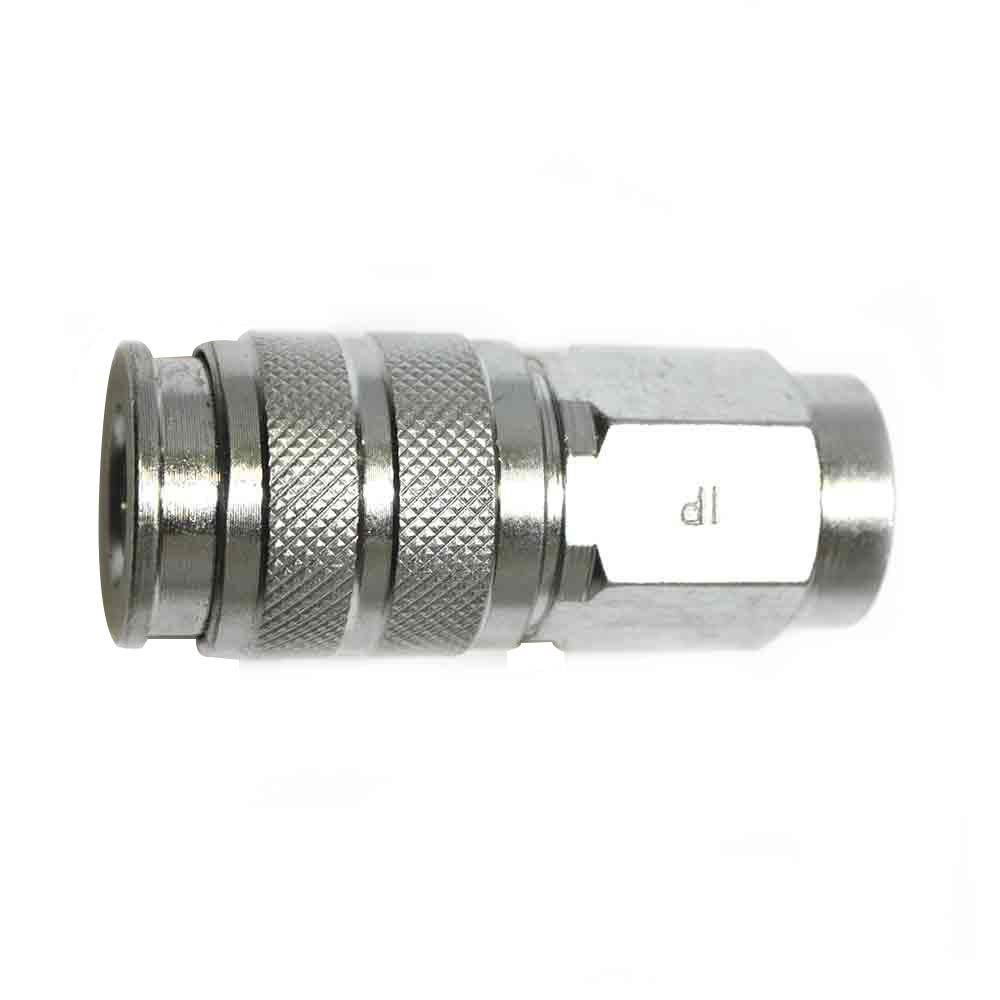

1/4 Inch Universal Steel Coupler x 1/4 Inch Female NPT. These couplers are interchangeable with the Universal Standard series couplers produced by other manufacturers. Precision machined from solid steel bar stock which provides longevity during mechanical shock in rugged applications. Maximum working pressure 300 PSI.

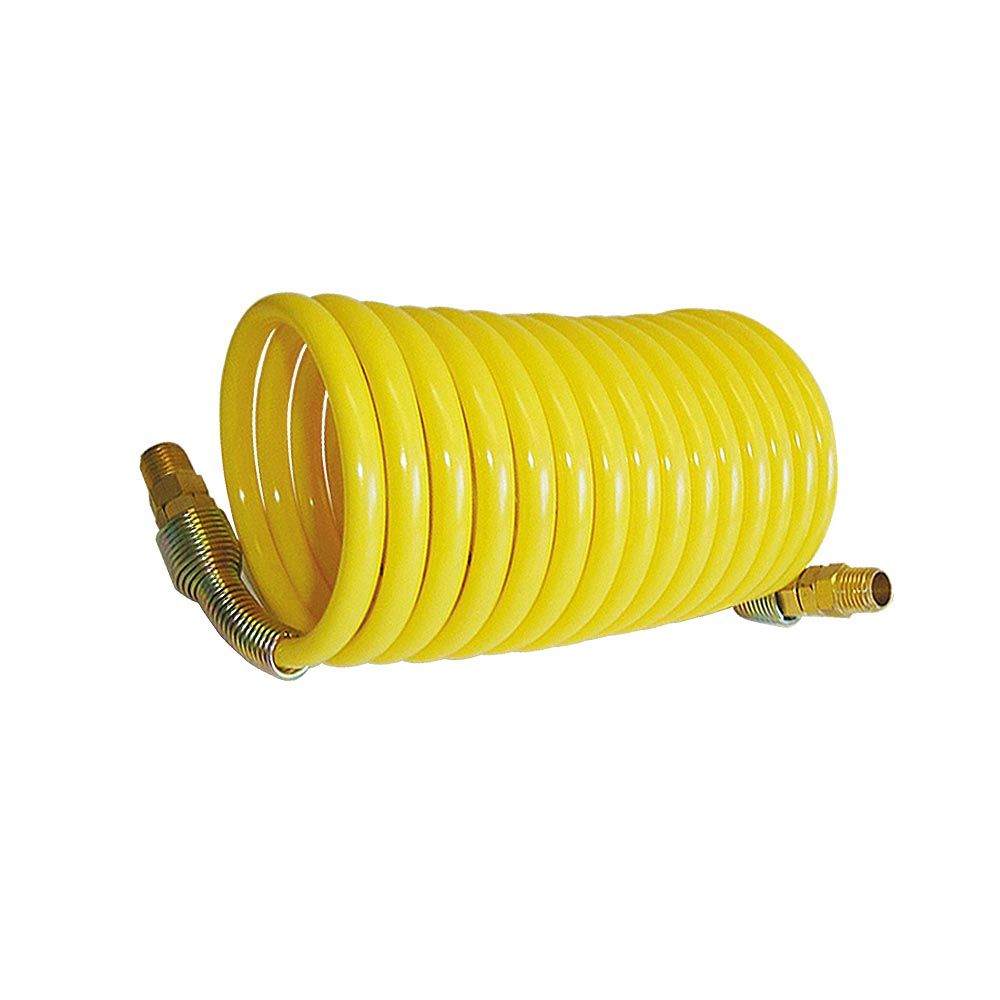

Polyurethane Coil Hoses are made from a special super tough compound for consistent performance. These hoses provides you with the highest quality and the most extensive offering of hosing in the industry. We have in-stock hosing customizing sizes, lengths, and colors in single or multi-spiral hose without requiring large set-up charges or minimum runs.

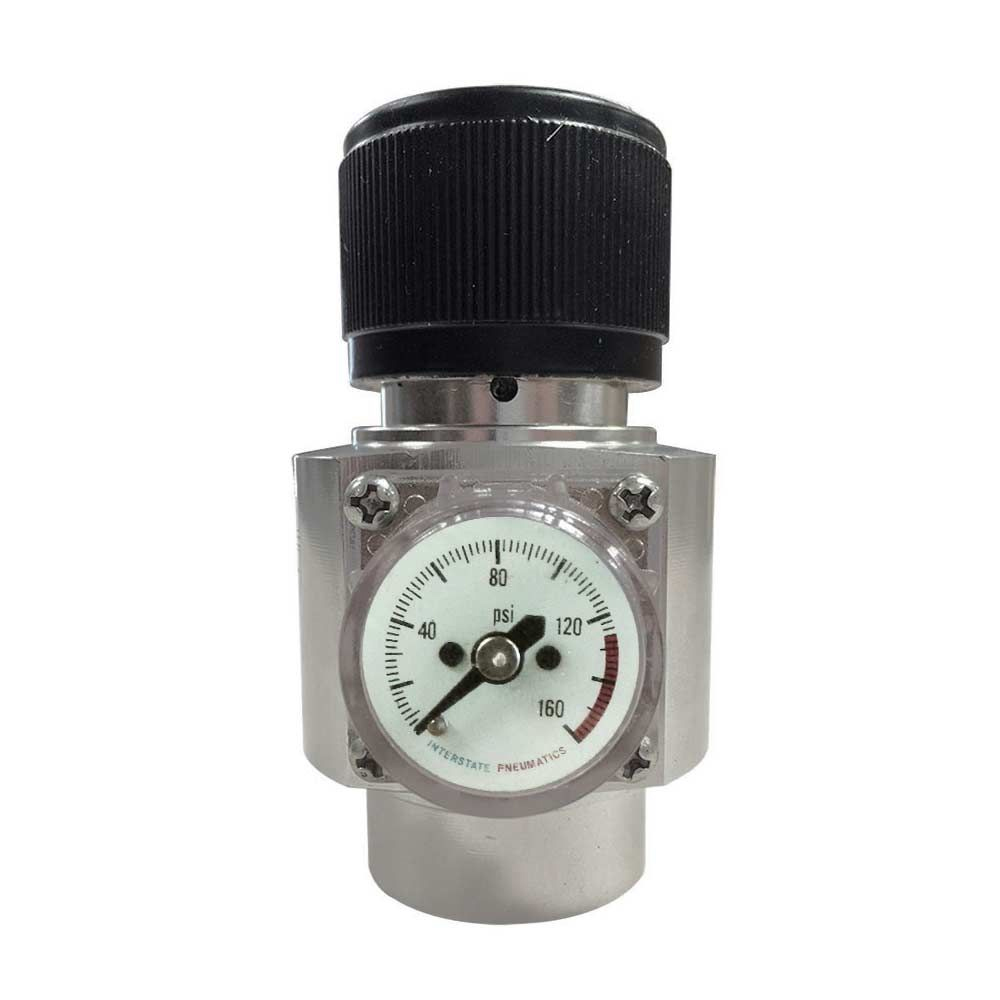

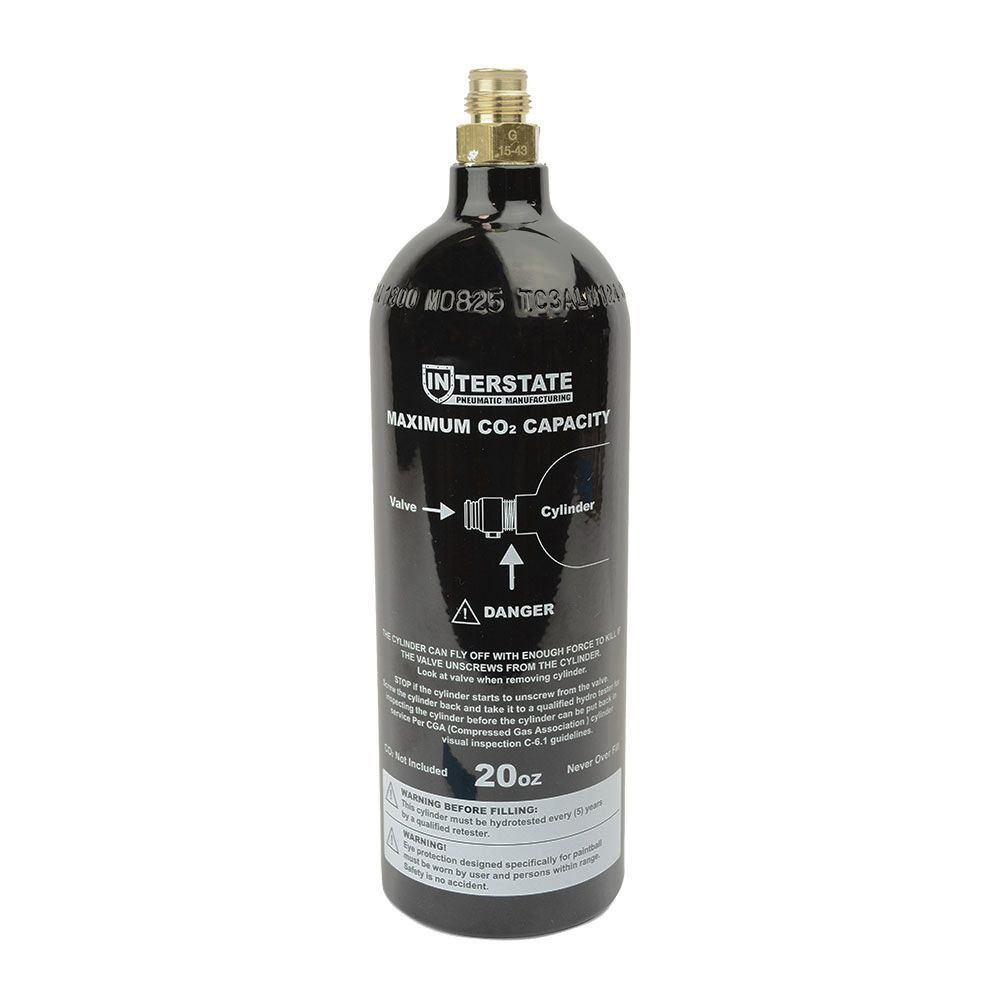

<p>High quality aluminium CO2 cylinders with industry standard pin valves. DOT / TC Stamped. Safety Burst Disc Brass Pin Valve. The Valve is an American made valve with safety relief valve and blow off valve to protect from accidental discharge due to unscrewing valve (NEVER UNSCREW VALVE FROM CO2 CYLINDER). The cylinder is rated for 1800 PSI for DOT (Department of Transport) for use in the United States and TC (Transport Canada) for use in Canada. These cylinders are shipped empty as required by federal law, but are ready to fill. They have a current HYDRO test. Can be used for Paintball and other application, including despensing beer or soda. For Beer and Soda applications correct pin valve style regulator is required.</p> <p>All metal CO2 Regulator has a 0-125 PSI pressure range with a maximum inlet pressure of 1200 PSI with a safety burst disc rating of 1800 PSI. Fits standards CO2 paint ball cylinders. Comes standard with a pressure gauge, dial regulator knob &amp; integrated steel belt clip.</p> <h3>Features:</h3> <ul> <li>Manufactured from lightweight die-cast magnesium for increased durability and efficiency.&nbsp;</li> <li>Drives 23-gauge micro pin nails from 1/2” to 1”. &nbsp;</li> <li>Narrow nose design reaches tight areas and corners for detailed trim work.&nbsp;</li> <li>Ideal for cabinets, paneling, trim and molding, and many types of craftworks.</li> <li>High-capacity bottom load magazine holds up to 150 pin nails and automatically adjusts between different nail lengths.&nbsp;</li> <li>Designed with a low load indicator that shows when it is time to reload the magazine to eliminate empty nail holes on material surface.&nbsp;</li> <li>Compact and lightweight, designed for optimum maneuverability.&nbsp;</li> <li>Rubber bumper to protect work surfaces.&nbsp;</li> <li>360° adjustable exhaust to keep oil and condensation away from work surfaces.&nbsp;</li> <li>Padded rubber grips for comfort and control.&nbsp;<br><br></li> </ul> <h2><span style="font-size: 18px;"><strong>Specifications:</strong></span></h2> <ul> <li><strong>Fastener Type:</strong> 23 Gauge Pin Nails</li> <li><strong>Fastener length:</strong> 1/2" - 1-3/8"</li> <li><strong>Weight (lbs):</strong> 2</li> <li><strong>Magazine capacity:</strong> 200 Pins</li> <li><strong>Magazine Loading:</strong> Side Load</li> <li><strong>Operating Pressure:</strong> 60 to 100 PSI</li> <li><strong>Thread:</strong> 1/4" NPT</li> <li><strong>Tool dimensions (LxWxH - in):</strong> 8.7x1.77x7.3</li> </ul> <h2><strong><span style="font-size: 18px;">Kit Includes:</span></strong></h2> <ul> <li>P635 Pin Nailer</li> <li>Operating Manual</li> <li>Oil Bottle</li> <li>Allen Wrench</li> <li>CardBoard Box</li> <li>G 1/2-14 Threads with O-Ring</li> <li>CO2 Regulator (WRCO2)</li> <li>20 Oz Aluminum CO2 Pin Valve Cylinder Tank Paintball (WRCO2-CL20)</li> <li>1/4" 12 Ft. Yellow Polyurethane Recoil Hose (HR14-012)</li> <li>Universal Steel Coupler (CG440)</li> </ul> <h2><strong><span style="font-size: 18px;">Applications:</span></strong></h2> <ul> <li>Intricate finishes</li> <li>Trim project</li> <li>Cabinets</li> <li>Decorative trim</li> <li>Glazing strips</li> <li>Molding</li> <li>Mirror and picture frame</li> <li>Finish and Trim Glazing strips</li> </ul> <p><strong>Warning:</strong></p> <p>CO2 can cause injury (suffocation &amp; Asphyxiation) or death, ventilate the area before entering. CO2 is stored at very pressure and a liquid CO2 is at cryogenic temperatures which can cause injury, burn, explosion, or death. CO2 should be handled by a trained professional and extreme caution should be taken when dealing with CO2. For safety always wear protective gear.</p>
