20A 125V NEMA 5-20P Generator Transfer Switch - Weatherproof Box with Circuit Breaker

29.70 29.70
Share :

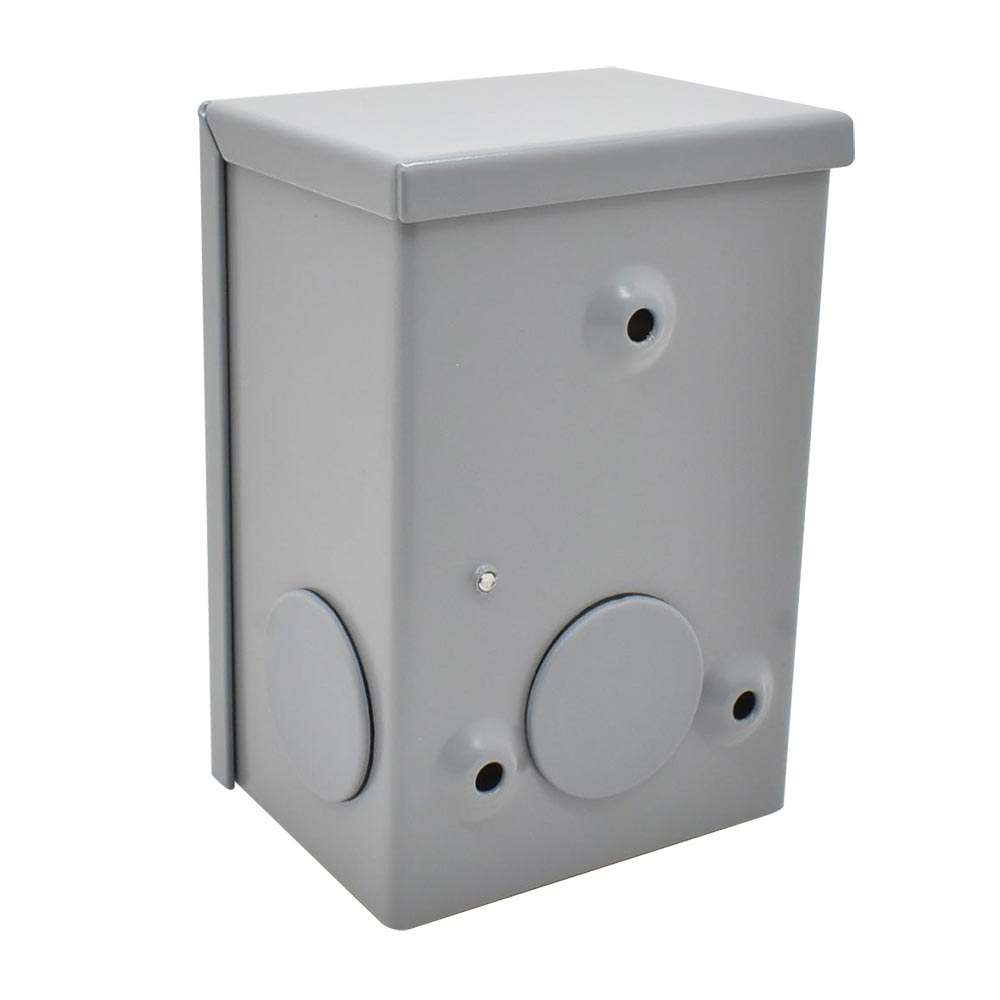

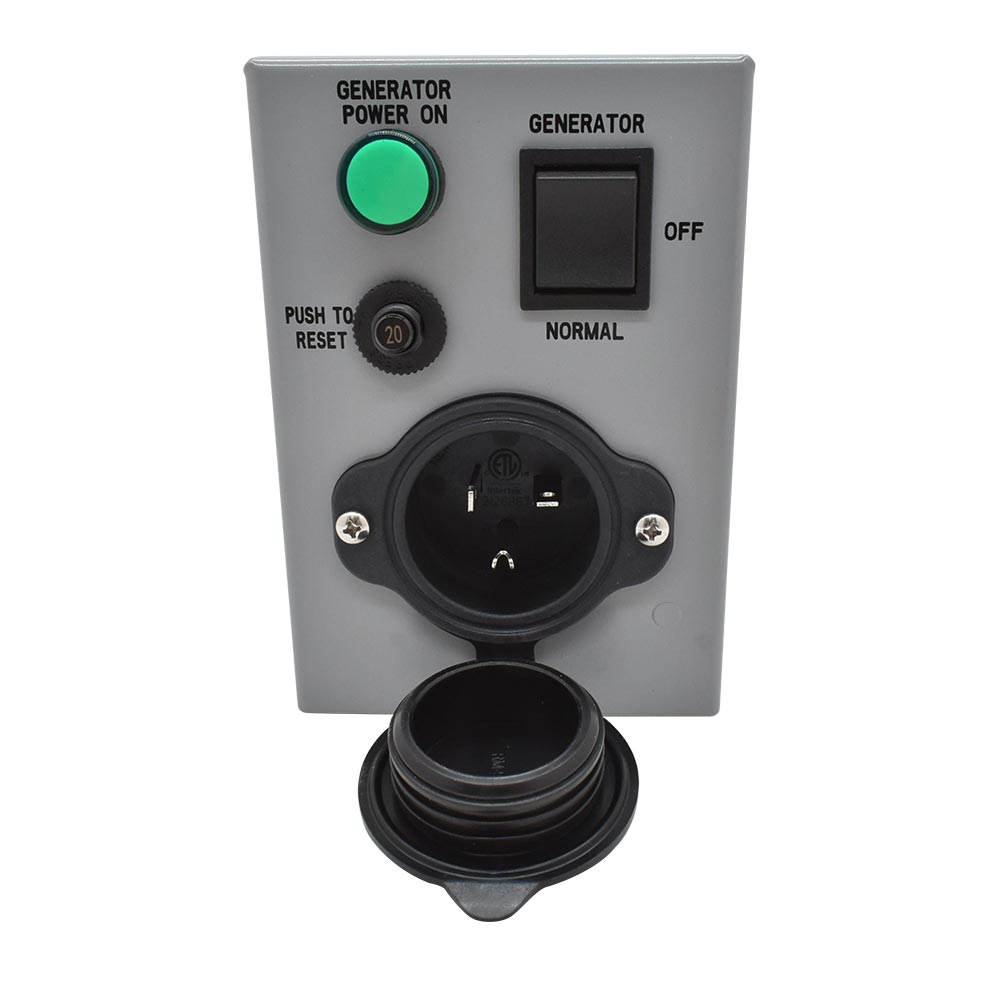

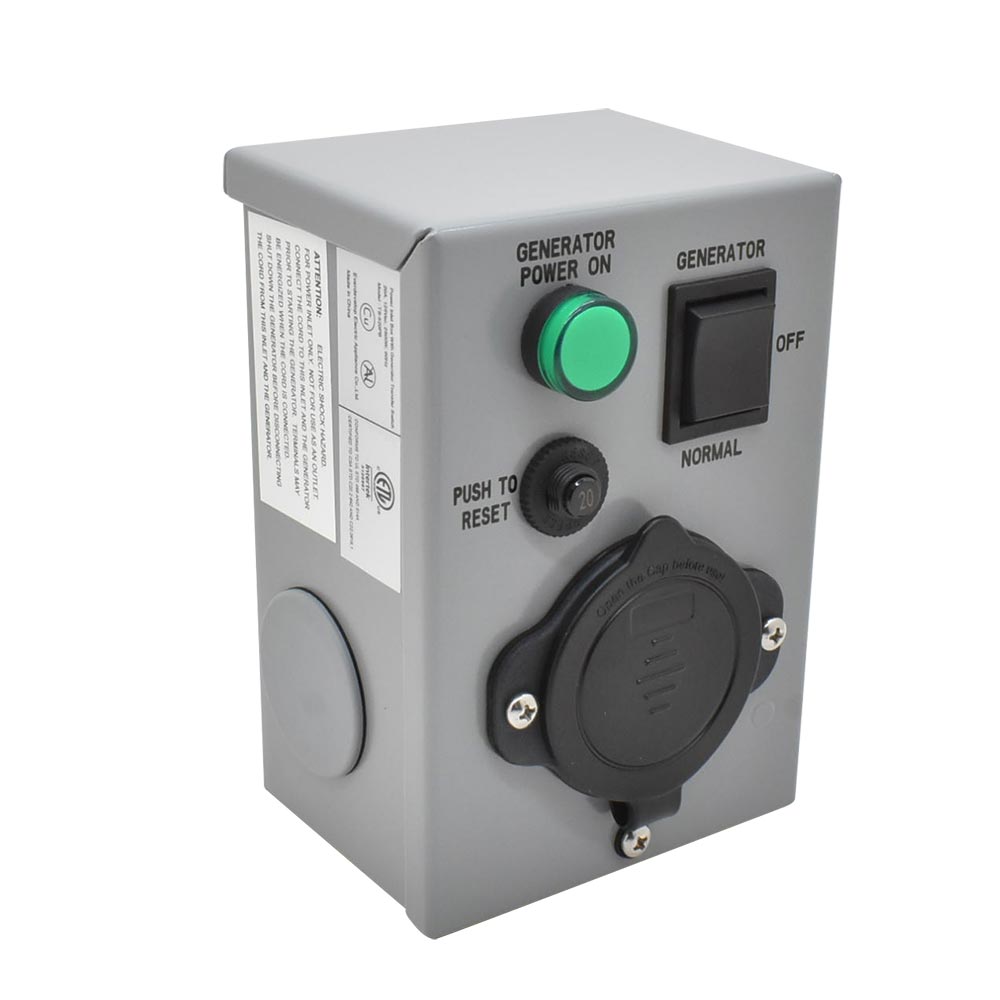

The RVA1626 is a 20 Amp, 125V manual transfer switch built for generators with a NEMA 5-20P plug connection. It delivers emergency backup power to essential systems like lights, heating, and appliances during utility outages. The steel enclosure features a weather-sealed cover and four side-mounted knockouts for flexible conduit entry. The internal wiring is pre-installed for faster setup and includes a built-in circuit breaker for overload protection. A green indicator light confirms live generator input. ETL listed and built for outdoor or indoor installation in residential or light commercial use.

Features:

  • Delivers safe and fast generator power access using a NEMA 5-20P inlet with a built-in circuit breaker to protect connected loads.
  • Supports 15A 125V household loads such as heating systems, refrigerators, and lights during outages.
  • Simplifies wiring with color-coded terminals—Line (Hot), Neutral, and Load clearly marked and pre-wired for fast and safe installation.
  • Includes dual neutral terminal blocks for both municipal mains and load-side wiring, ensuring proper power transfer and isolation.
  • Provides clear ground connection support with grounding bar terminal and 12 AWG grounding compatibility.
  • Protects with a sealed steel housing featuring rust-resistant powder coating and weatherproof cap for outdoor or indoor use.

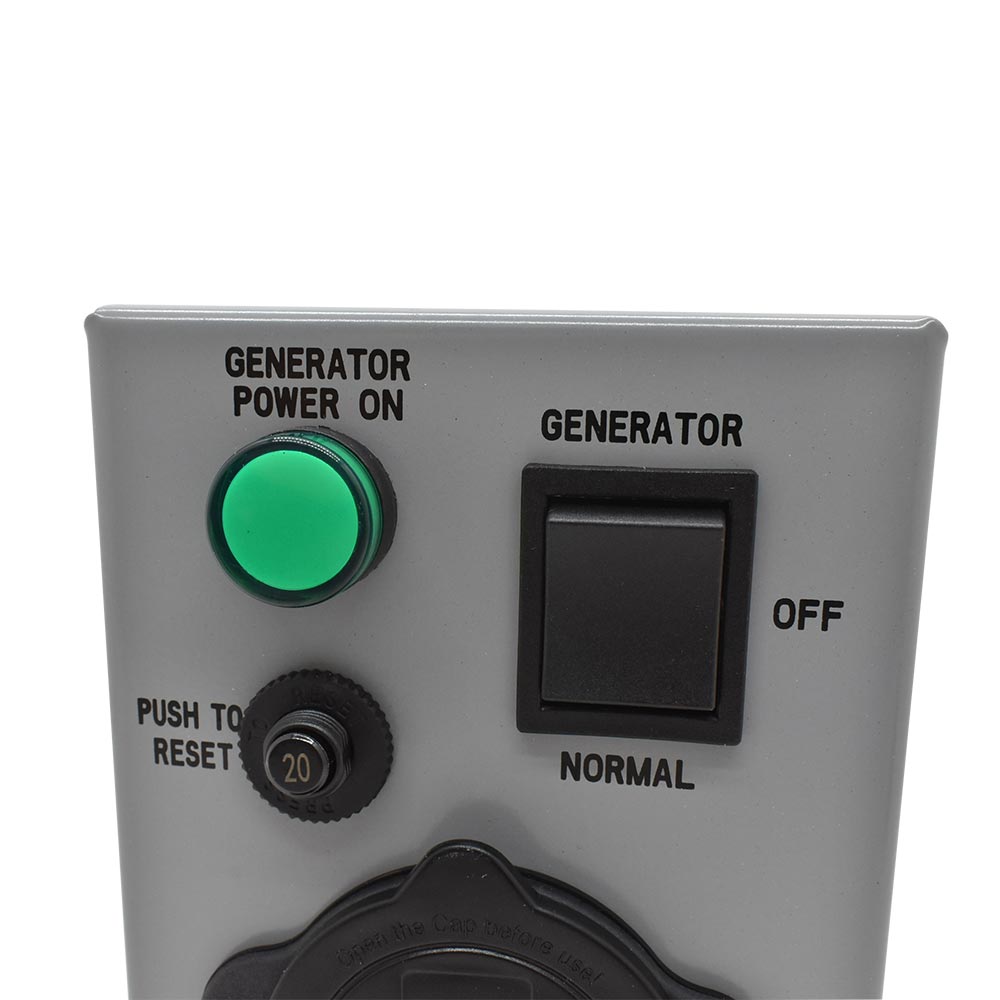

  • Signals connection status with a green indicator light, offering visibility and safety when powered.

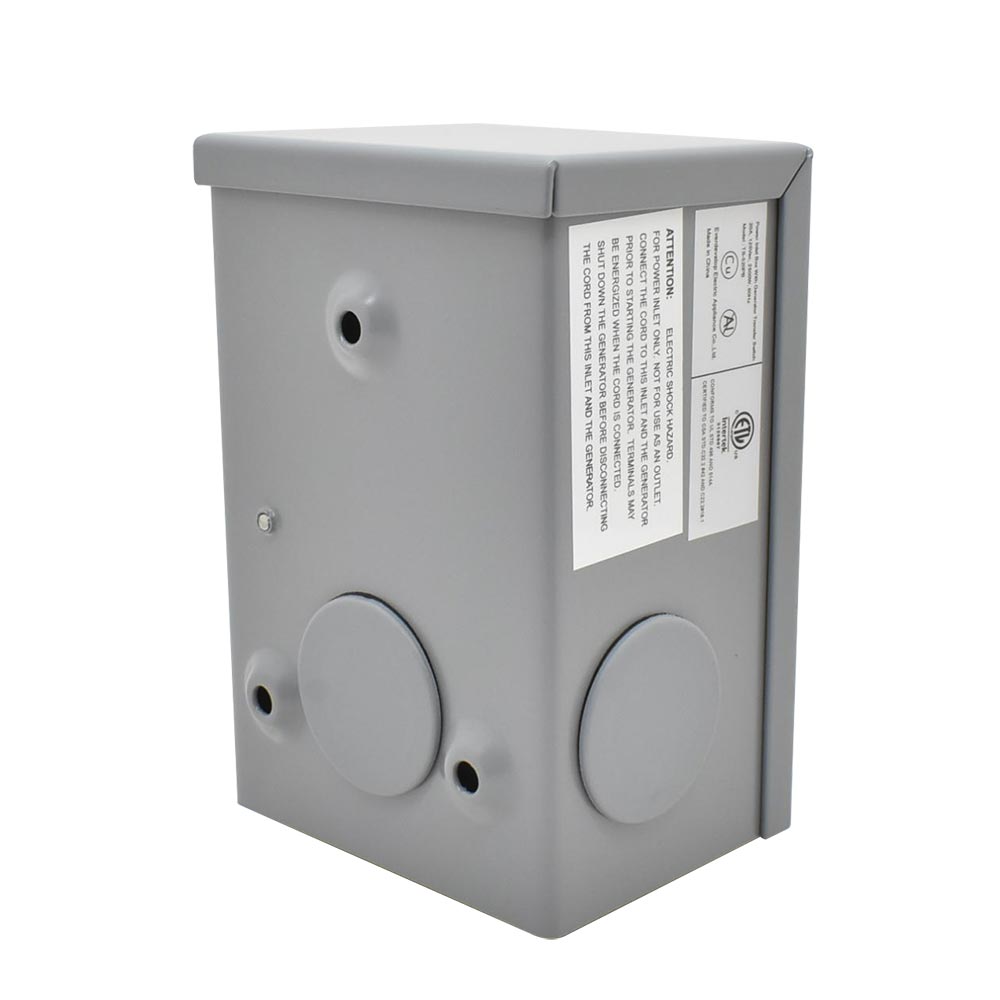

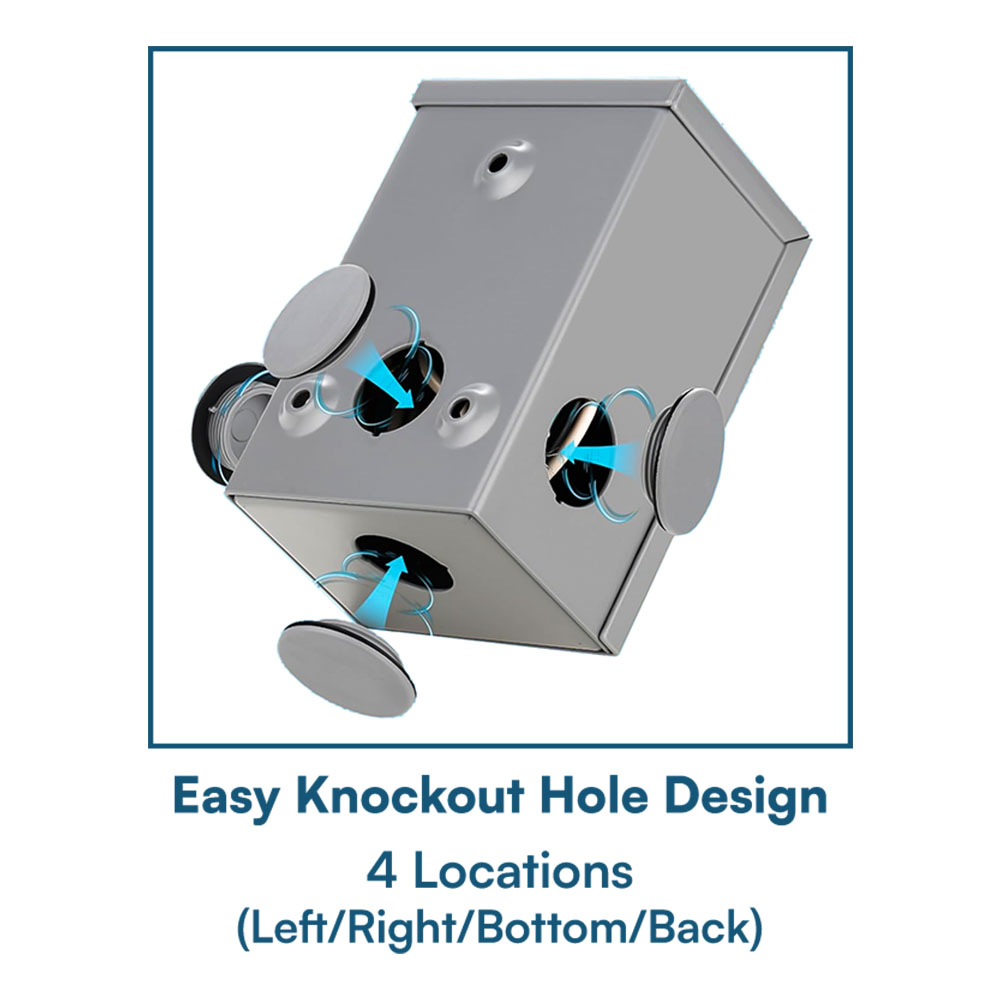

  • Pre-cut knockouts and removable side panels allow flexible conduit entry from multiple directions.
  • Complies with safety standards and is ETL Listed for use in the U.S. and Canada

Specifications:

  • NEMA Configuration: 5-20P Input Plug
  • Rating: 20 AMP, 125 Volt
  • Poles/Wires: 2 Pole, 3 Wire
  • Internal Wiring: Pre-wired configuration with clearly labeled terminals (Red/White/Black/White Wires)
  • Enclosure Type: Steel with weatherproof, rust-resistant powder coating
