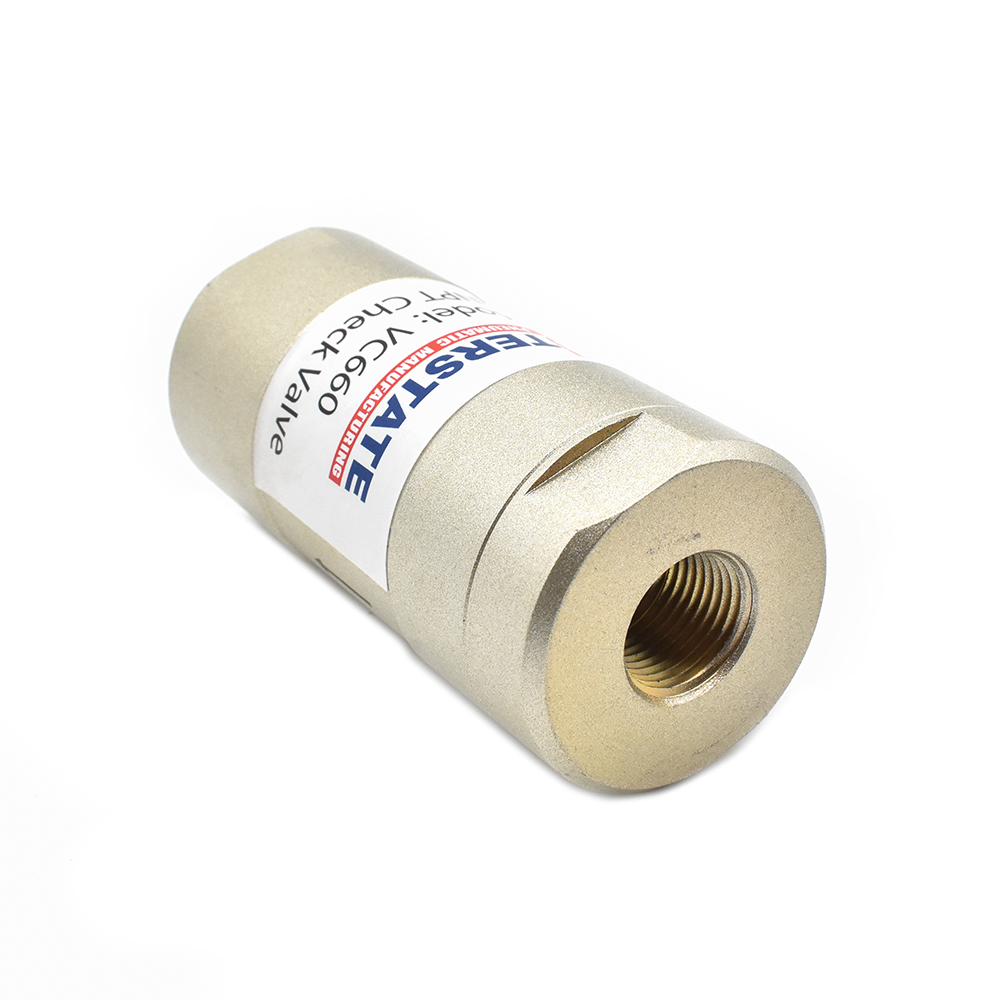

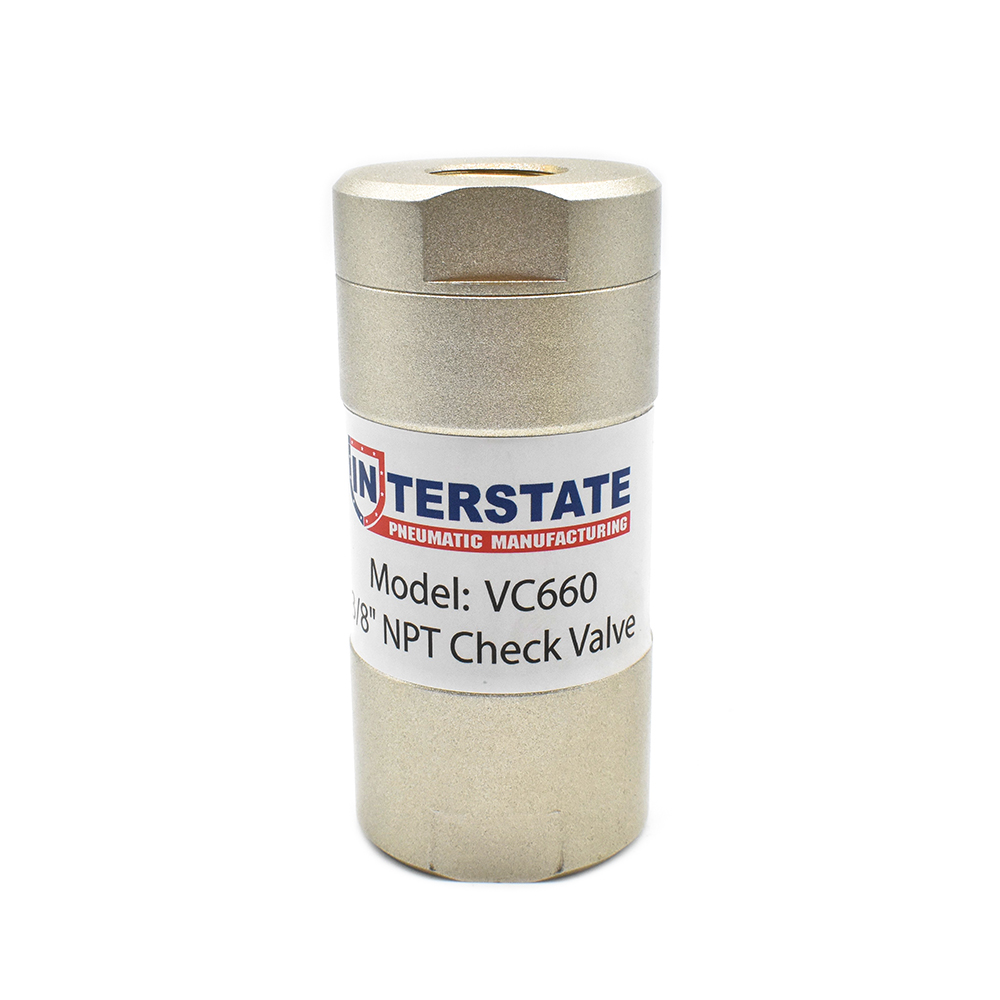

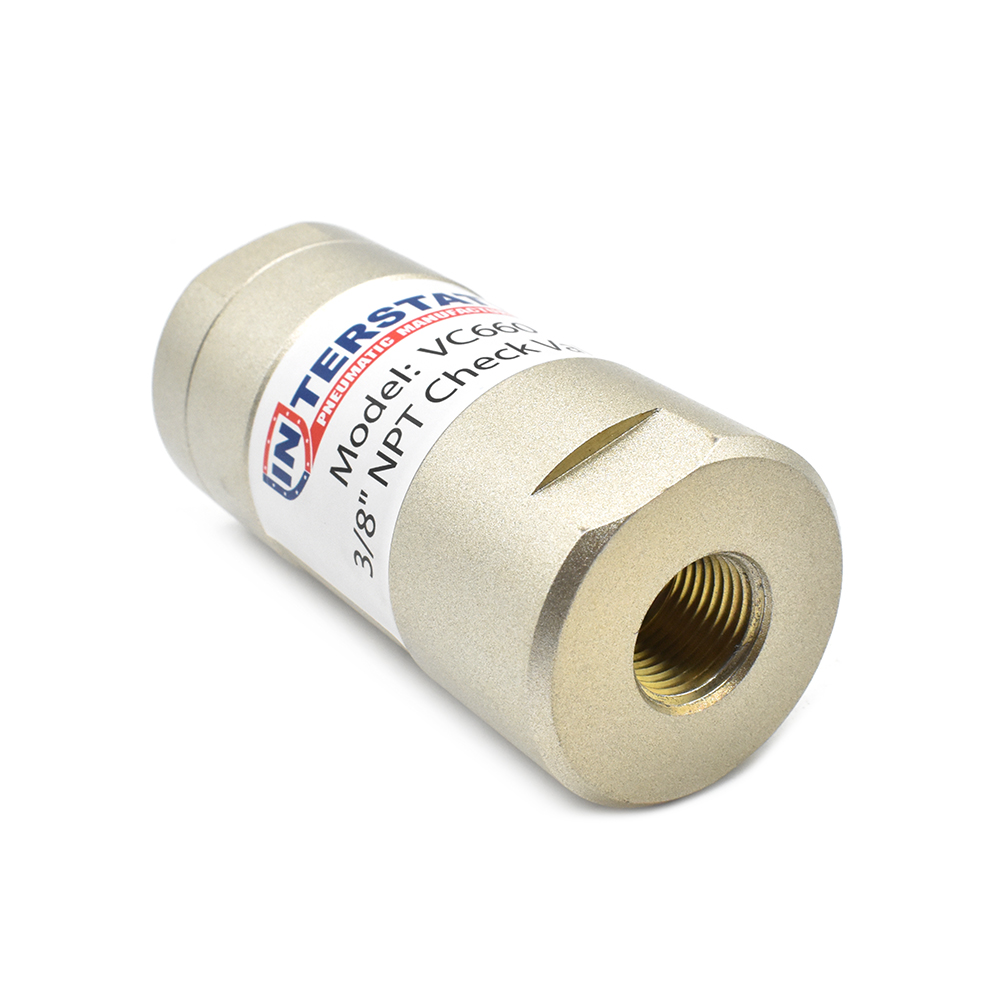

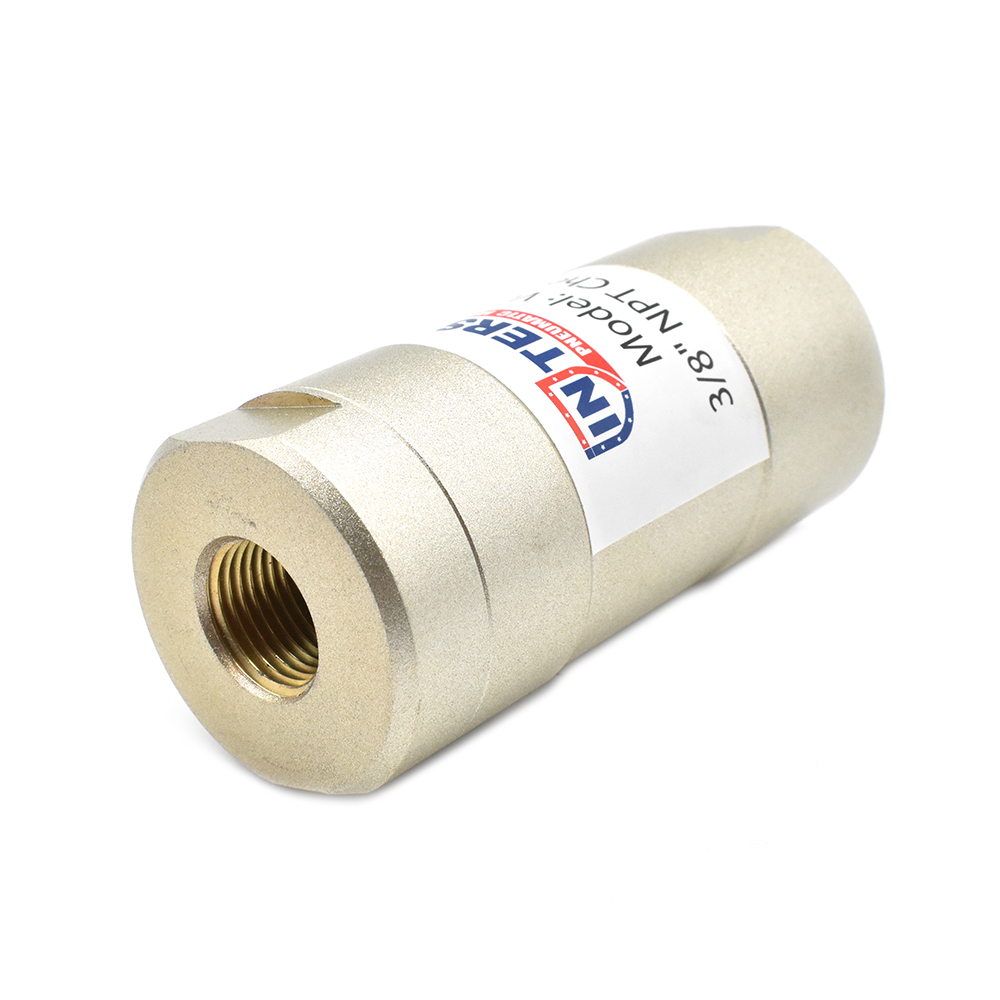

Interstate Pneumatics VC660 In-Line Check Valve 3/8" FPT x 3/8" FPT. Prevent high air pressure from travelling back from the receiver to the pump. It is a one way check valve which is ideal for blocking back-flow of air. It features two female NPT threads for in-line applications.
| Check Valves Flow Rate | |
|---|---|
| Inlet Pressure (PSI) | Flow Rate (SCFM) |
| 116 | 210 |
| 100 | 180 |
| 87 | 150 |
| 72.5 | 100 |
| 58 | 100 |
| 43.5 | 75 |
| 29 | 45 |
Specifications:
- Length: 86mm (3.4")
- O.D: 39.5mm (1.6")
- Fluid Type: Clean Air
- Pressure Range: 0-150 PSI
- Temperature Range: 20°F -150°F
- Max Pressure Rating PSI: 225
- Lubrication: Not Required
- Material: Aluminium
