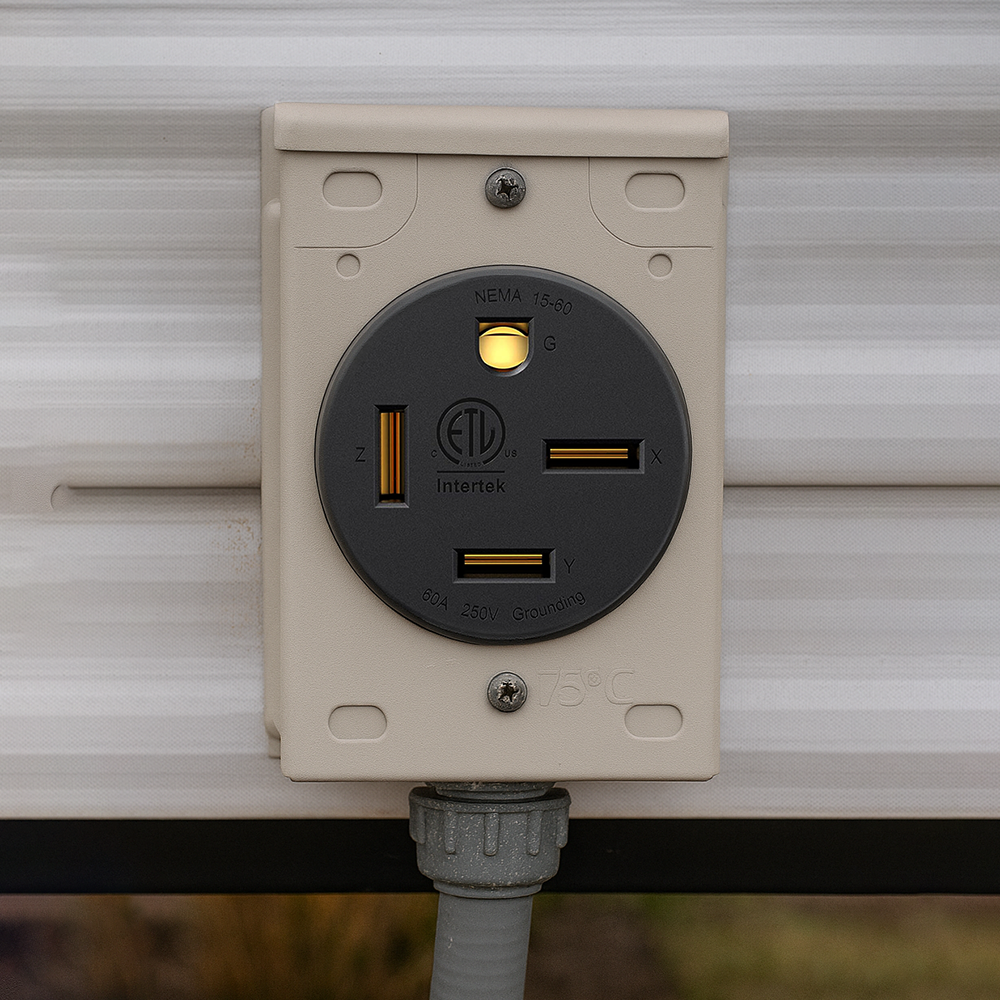

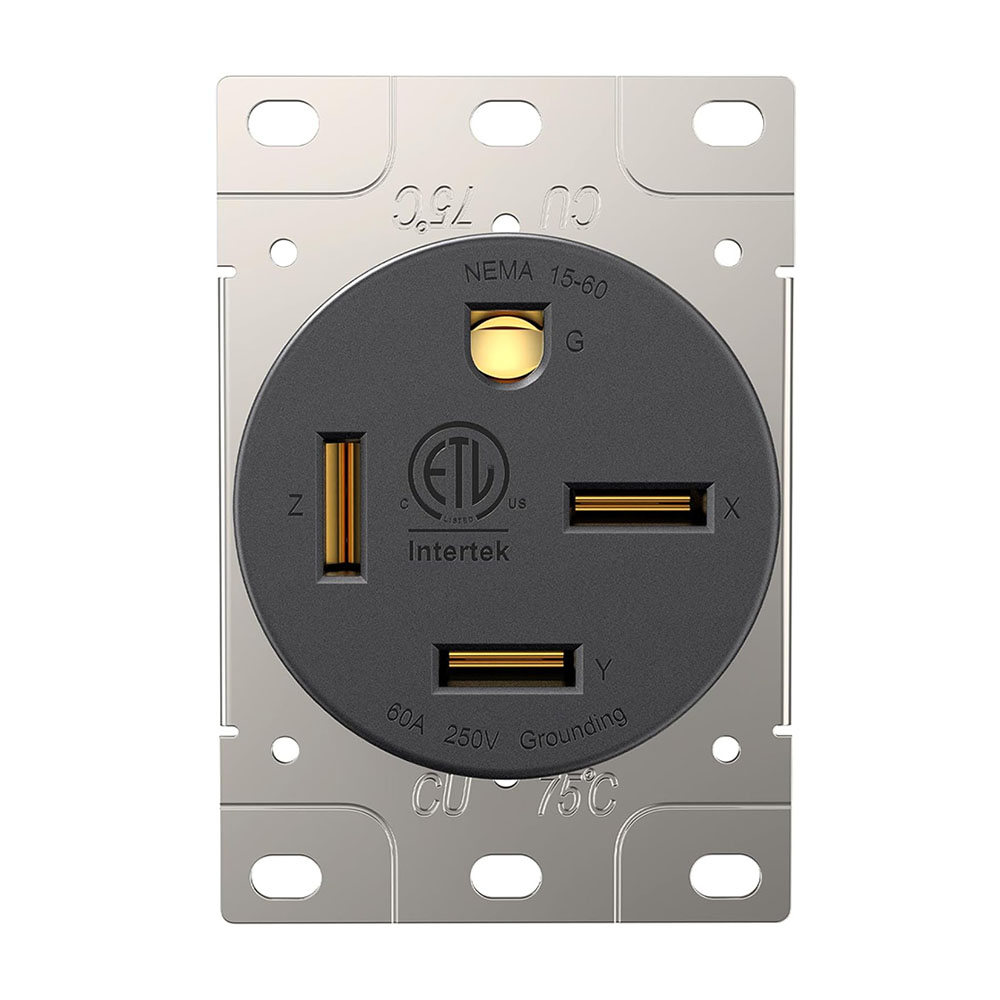

The Superior Electric YGP036F is a 60 Amp flush mount outlet built for industrial equipment, welders, and high-load shop tools that require a NEMA 15-60R plug. It restores 250V grounded power access for heavy-duty machinery where a neutral line is not needed. The housing is made from impact-resistant nylon, and the galvanized steel mounting strap protects against corrosion in demanding work environments. Large brass contacts provide strong conductivity and a secure connection underload. This outlet fits standard single or two-gang boxes with a 2.15" center opening and supports copper or aluminum wire from #10 to #4 AWG. ETL Listed to UL Standards, it’s designed for dedicated 250V applications in industrial and commercial settings.

Features:

• Restores 60 Amp 250V power access for welders, industrial machines, and other high-load tools using a NEMA 15-60R plug.
• Built with a 2 Pole, 3 Wire configuration for 250V-only circuits where neutral is not required
• Withstands harsh environments with an impact-resistant nylon housing and a corrosion-resistant galvanized steel mounting strap
• Delivers reliable power underload with large brass contacts that ensure strong conductivity and a secure fit

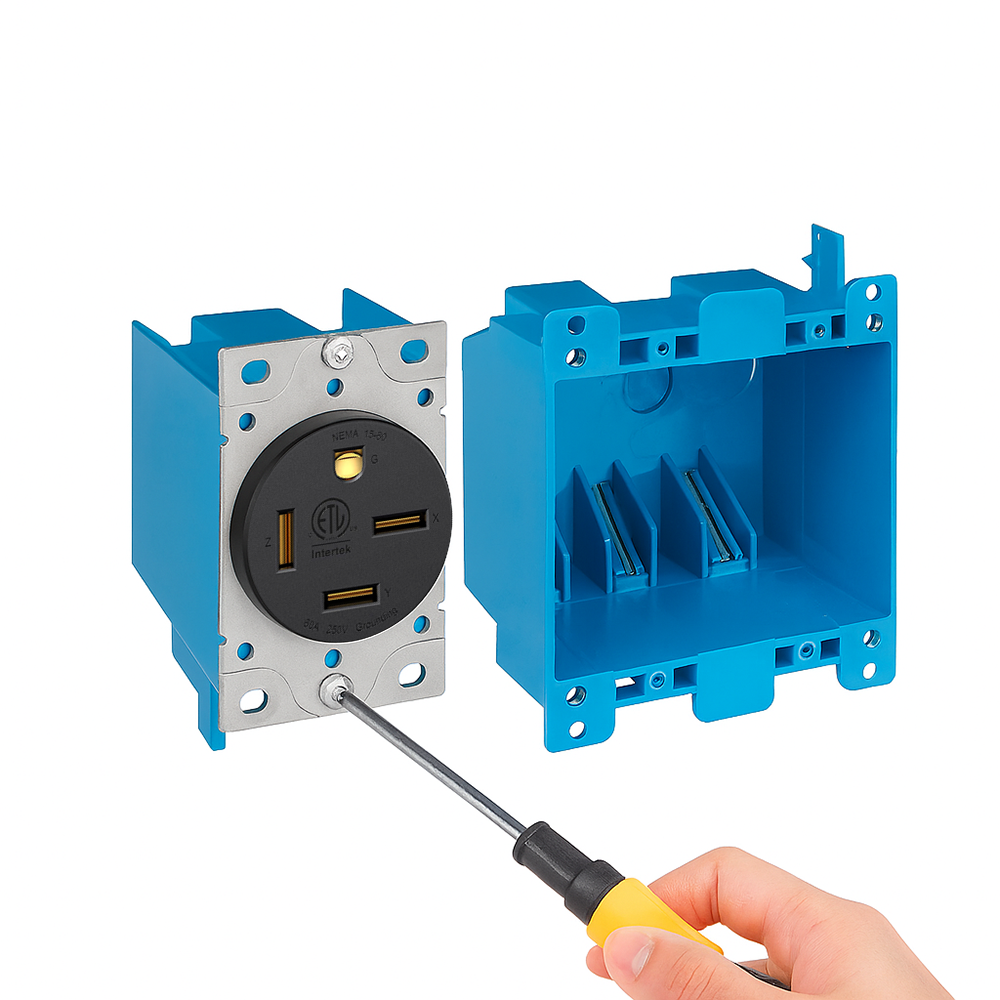

• Fits standard wall enclosures and plates including single or two-gang boxes with a 2.15" center opening
• Installs quickly with color coded terminals and supports copper or aluminum wire from #10 to #4 AWG
• Certified for industrial use with an ETL Listing to UL Standards and a V-2 flammability rating for safety compliance

Specifications

• NEMA Configuration: 15-60R
• Rating: 60 Amp, 250 Volt
• Poles / Wires: 2 Pole, 3 Wire Grounding
• Blade Type: Straight Blade (Non-Locking)
• Operating Temperature: -40°C to 60°C
• Wire Compatibility: Accepts copper or aluminum wire from #10 to #4 AWG
• Wall Box Fitment: Fits single or two-gang boxes with 2.15" center opening
• Certifications: ETL Listed to UL Standards

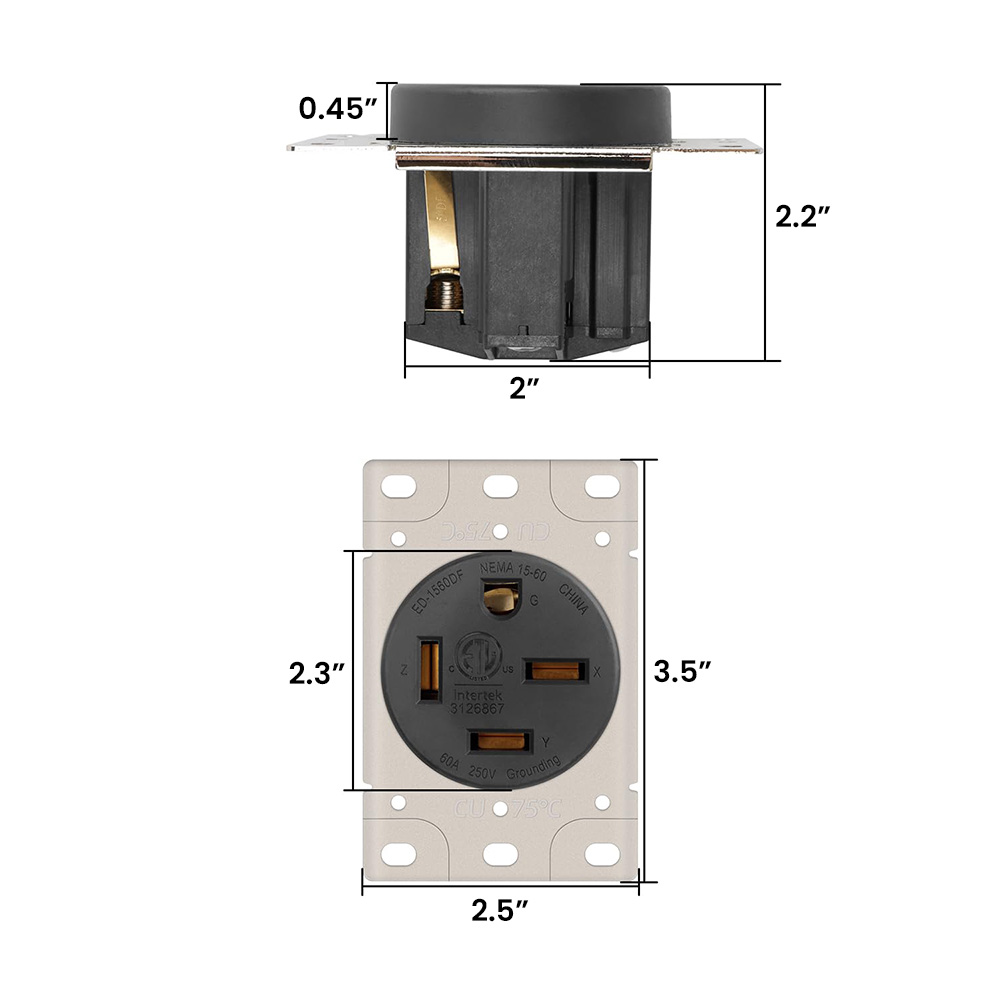

• Overall Dimensions: 3.69" x 2.44" x 2.24"
